Omron RX2 Series - Set Frequency Exceeded Signal (FA2;FA4)

8 - 145
8 Applied Settings
High-function General-purpose Inverter RX2 Series User’s Manual
8-8 Frequency Arrival Signal (FA1 to FA5)
8

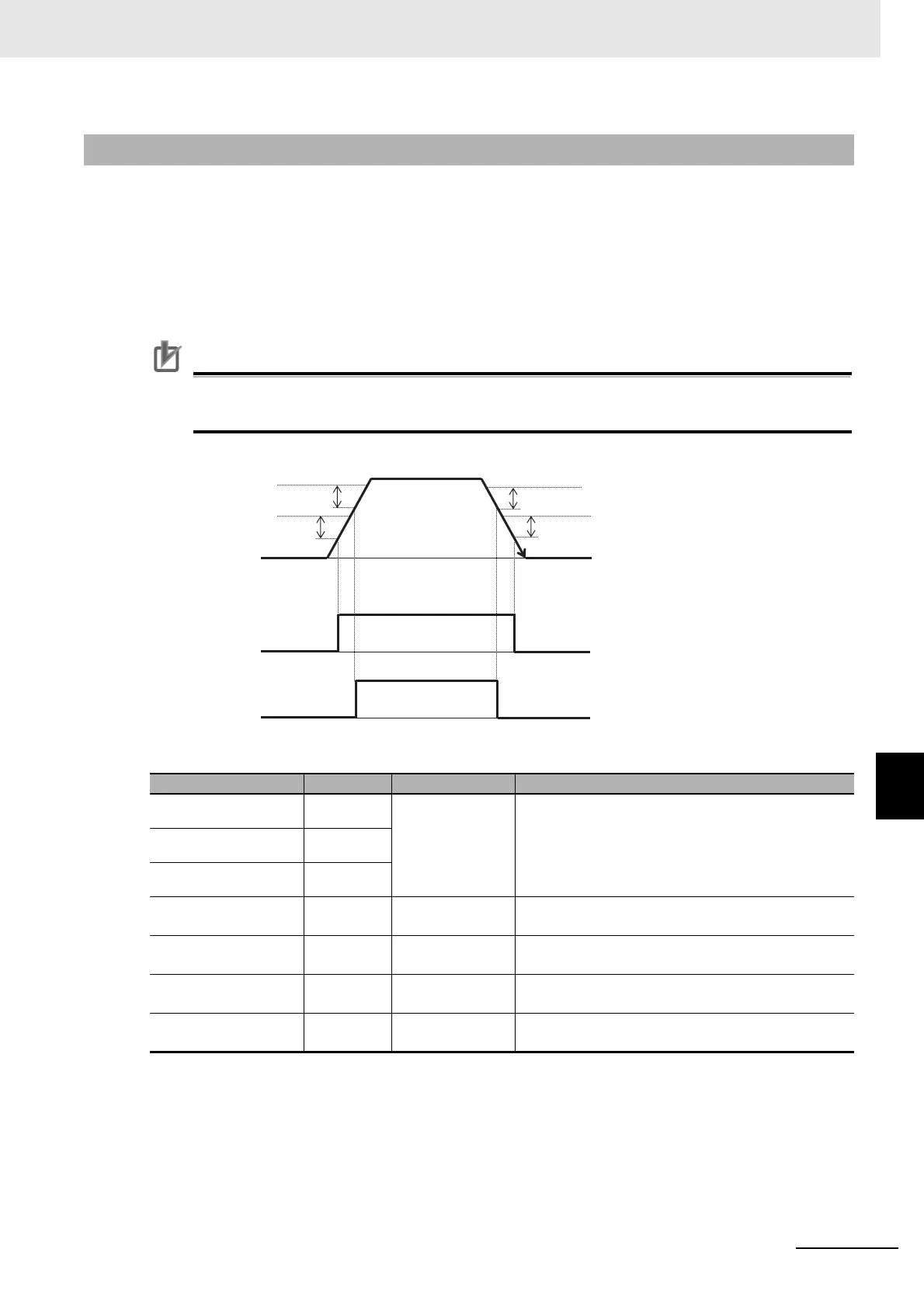

8-8-2 Set Frequency Exceeded Signal (FA2/FA4)
FA2 will be output when the output frequency exceeds the Arrival Frequency During Accelera-
tion/Deceleration 1 (CE-10/CE-11); F4 will be output when the output frequency exceeds the Arrival
Frequency During Acceleration/Deceleration 2 (CE-12/CE-13).
Assign the output terminal functions 003 [FA2] and 005 [FA4] exceeding set frequency signal to one of
[CC-01] to [CC-07] that corresponds to the output terminal and output the signals.
The signals [FA2] and [FA4] can be output to output terminal functions individually as the exceeding set
frequency output signal.
Precautions for Correct Use
• The operation of [FA2] can be set through [CE-10] and [CE-11].
• The operation of [FA4] can be set through [CE-12] and [CE-13].
 Parameter
8-8-2 Set Frequency Exceeded Signal (FA2/FA4)
Item Parameter Data Description
Output terminal func-
tion selection
[CC-01] to
[CC-05]
003
005
003 [FA2]: The exceeding set frequency signal will
be output to the output terminal assigned.
005 [FA4]: The exceeding set frequency signal 2 will
be output to the output terminal assigned.
Relay output terminal
function selection
[CC-06]
Relay output terminal
function selection
[CC-07]
Acceleration reaching
frequency 1
[CE-10]
0.00 to
590.00(Hz)
The frequency to judge that the frequency has been
reached in acceleration and output the signal [FA2].
Deceleration reaching
frequency 1
[CE-11]
0.00 to
590.00(Hz)
The frequency to judge that the frequency has been
reached in deceleration and output the signal [FA2].
Acceleration reaching
frequency 2
[CE-12]
0.00 to
590.00(Hz)
The frequency to judge that the frequency has been
reached in acceleration and output the signal [FA4].
Deceleration reaching
frequency 2
[CE-13]
0.00 to
590.00(Hz)
The frequency to judge that the frequency has been
reached in deceleration and output the signal [FA4].
[CE-10]
[CE-11]
fon
foff
[FA2]
foff
fon
[CE-12]
[CE-13]
[FA4]
ON
OFF
ON
OFF
Output
Frequency
fon: 1% of the maximum
frequency
foff: 2% of the maximum
frequency
(Operation example)
Maximum frequency: 60 Hz
When [CE-10] = [CE-11] = 50 Hz
• fon=60×0.01=0.6Hz
• foff=60×0.02=1.2Hz
• In acceleration: On at 50 - 0.6 = 49.4 Hz
• In deceleration: On at 50 - 1.2 = 48.8 Hz
