1 Overview
High-function General-purpose Inverter RX2 Series User’s Manual
1-2 Appearance and Part Names
1
1-2 Appearance and Part Names

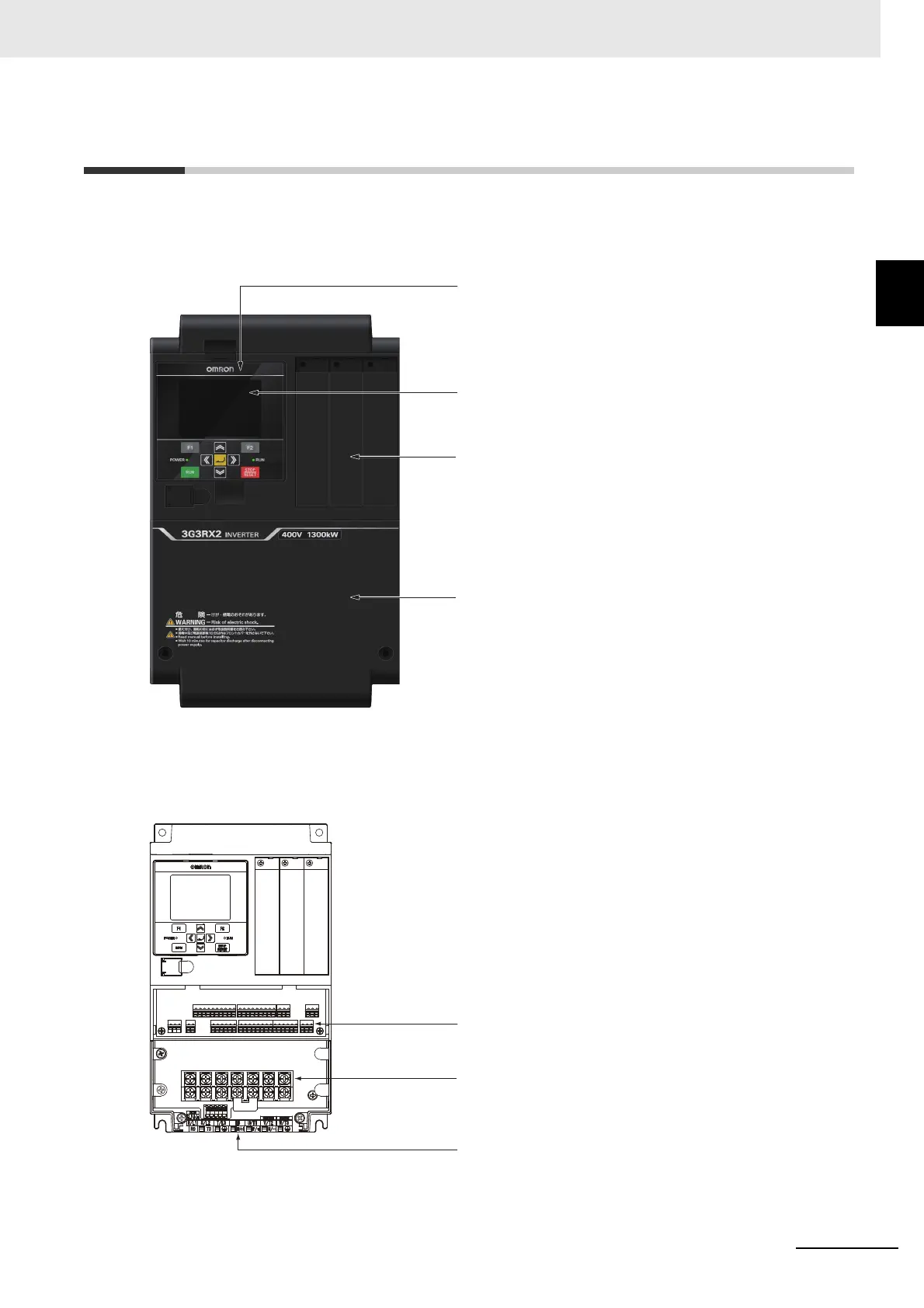

The following shows the front view when the product is unpacked (an example of
3G3RX2-A2055/A2075/A2110/A4055/A4075/A4110).
Open the terminal block cover to wire the main circuit terminal block and the control circuit terminal
block.
Moreover, you can open the Option Unit Connection Cover to mount option boards.
LCD operator
Use this to set parameters, view various monitor data,
run/stop the inverter, etc.
Data display
This displays the frequency reference value, output
frequency, parameter set value, or other relevant data.
Option Unit Connection Cover
Remove this to mount option boards.
Terminal Block Cover
Remove this when connecting cables to each terminal
block.
Control Circuit Terminal Block
Use this to connect various digital/analog I/O signals for
inverter control.
Main circuit terminal block
Use this to connect the inverter main power supply, motor,
braking resistor, and other devices.
Backing plate
Cut off the cutout portions of this plate to connect power sup-
ply lines, signal lines, etc.
To Next Page
