 Parameter

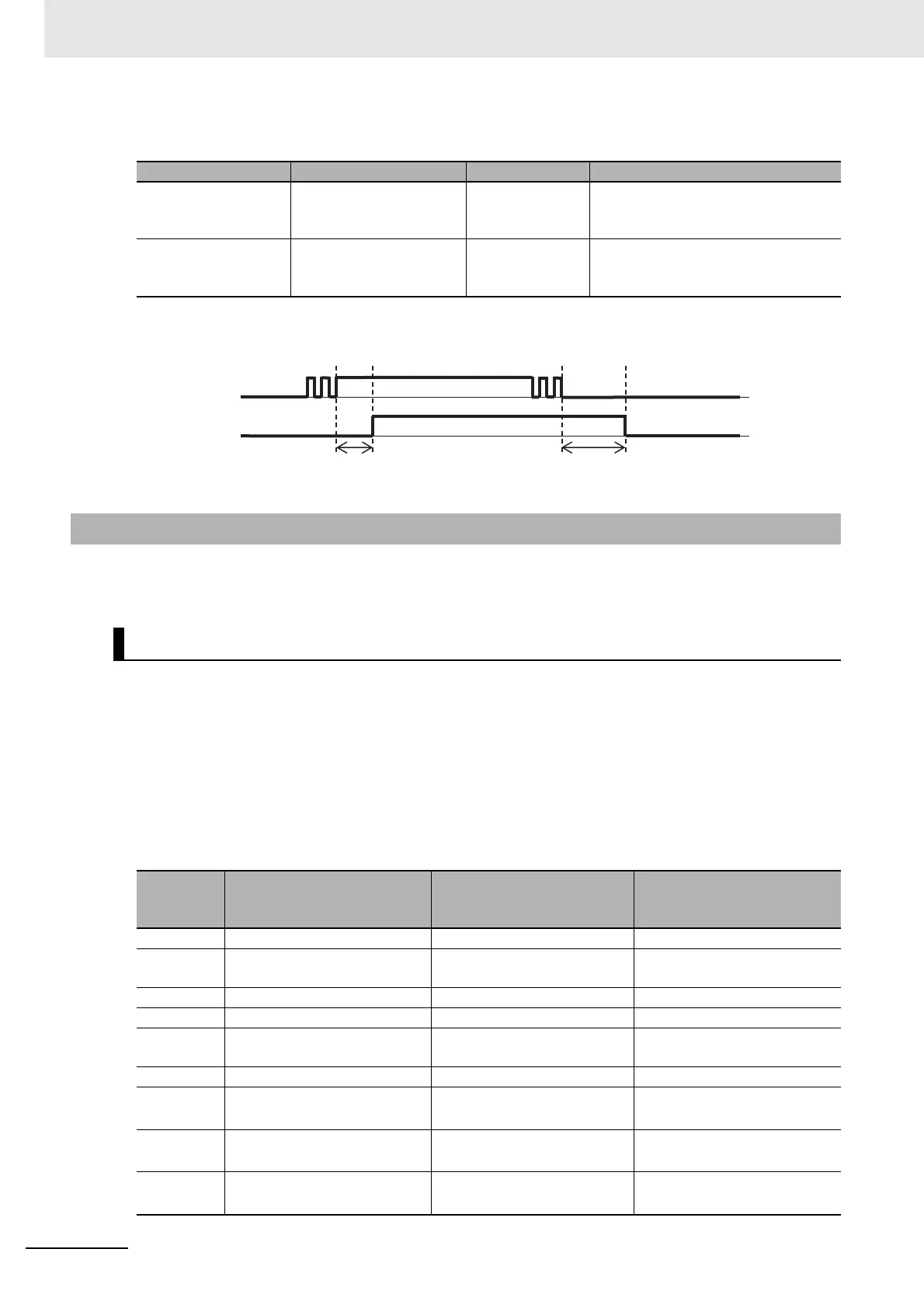

(Ex.) Operation of Output terminal 11
You can select, using some parameter codes, data to be output to the Analog output Ao1-L and Ao2-L
terminals and the Digital pulse output FM-CM1 terminal.
The below table shows selectable parameter codes.
The output scale ranges are specified when bias settings are each set to 0.0%, and gain settings are
each set to 100.0%.
You can adjust the output scale ranges with bias settings and gain settings.
Using the bias function, you can output, from data that can output “(±) data,” “(-) data” in a range from
which outputting is available.
When selecting the output monitor, set the registered number of each code. For example, when using
dA-02 of output current monitor via [Ao1] terminal, set “10002(2712h)” to Cd-04.
Item Parameter Data Description
Output on-delay time
[CC-20]/[CC-22]/[CC-24]/
[CC-26]/[CC-28]/[CC-30]/
[CC-32]
0.00 to 100.00(s) Sets an on-delay time.
Output off-delay time
[CC-21]/[CC-23]/[CC-25]/
[CC-27]/[CC-29]/[CC-31]/
[CC-33]
0.00 to 100.00(s) Sets an off-delay time.
8-11-4 Analog Output Terminal Adjustment
Selectable Parameter Codes
Code Name
Output scale range
(Corresponding to 0 to 10 V /
0 to 20 mA / 0 to 100%)
Remarks
dA-01 Output frequency monitor 0.00 to Maximum speed (Hz)
dA-02 Output current monitor
(0.00 to 2.00) ×
Inverter rated current (A)
dA-04 Frequency command 0.00 to Maximum speed (Hz) Outputting is possible with (±).
dA-08 Detected speed value monitor 0.00 to Maximum speed (Hz) Outputting is possible with (±).
dA-12
Output frequency monitor (with
sign)
0.00 to Maximum speed (Hz) Outputting is possible with (±).
dA-14 Frequency upper limit monitor 0.00 to Maximum speed (Hz)
dA-15 Torque command monitor
0 to Motor rated torque ×
500% (Nm)
*1
Outputting is possible with (±).
dA-16 Torque limit monitor
0 to Motor rated torque ×
500% (Nm)
*1
Outputting is possible with (±).
dA-17 Output torque monitor
0 to Motor rated torque ×
500% (Nm)
*1
Outputting is possible with (±).
[CC-20]
[CC-21]
ON
OFF
OFF
ON
Output of
selected function
Operation of
Output terminal 11
