7 Advanced Settings
7 - 76
High-function General-purpose Inverter RX2 Series User’s Manual
 Parameter
Set the start mode after free-run stop command is input via the [FRS] terminal (input terminal function
032), (Ex.1) to (Ex.4), or start mode after stop when FRS (free run to stop) is specified for [AA115] Stop
mode selection, (Ex.5) and (Ex.6).
(Ex.1) to (Ex.4) below are examples where a free-run stop command is input using the [FRS] terminal.
(Ex.1) Restart with 0 Hz: [bb-40]=00
(Ex.2) Frequency pull-in [bb-40]=01 to 03
Item Parameter Data Description
Default
data
Restart mode after
RS release
[bb-41]
00 Performs the 0 Hz restart.
00
01
Performs frequency matching restart.
*1
*1. See 7-5-3 Frequency Matching Start on page 7-65.
02
Performs frequency pull-in restart.
*2
*2. See 7-5-4 Frequency Pull-in Start on page 7-69.
03
Restarts at the speed received from Input termi-
nal A and B or the PG option unit.
Retry wait time
before motor
restart
[bb-26] 0.3 to 100.0(s) Sets the wait time after the operation command. 0.3

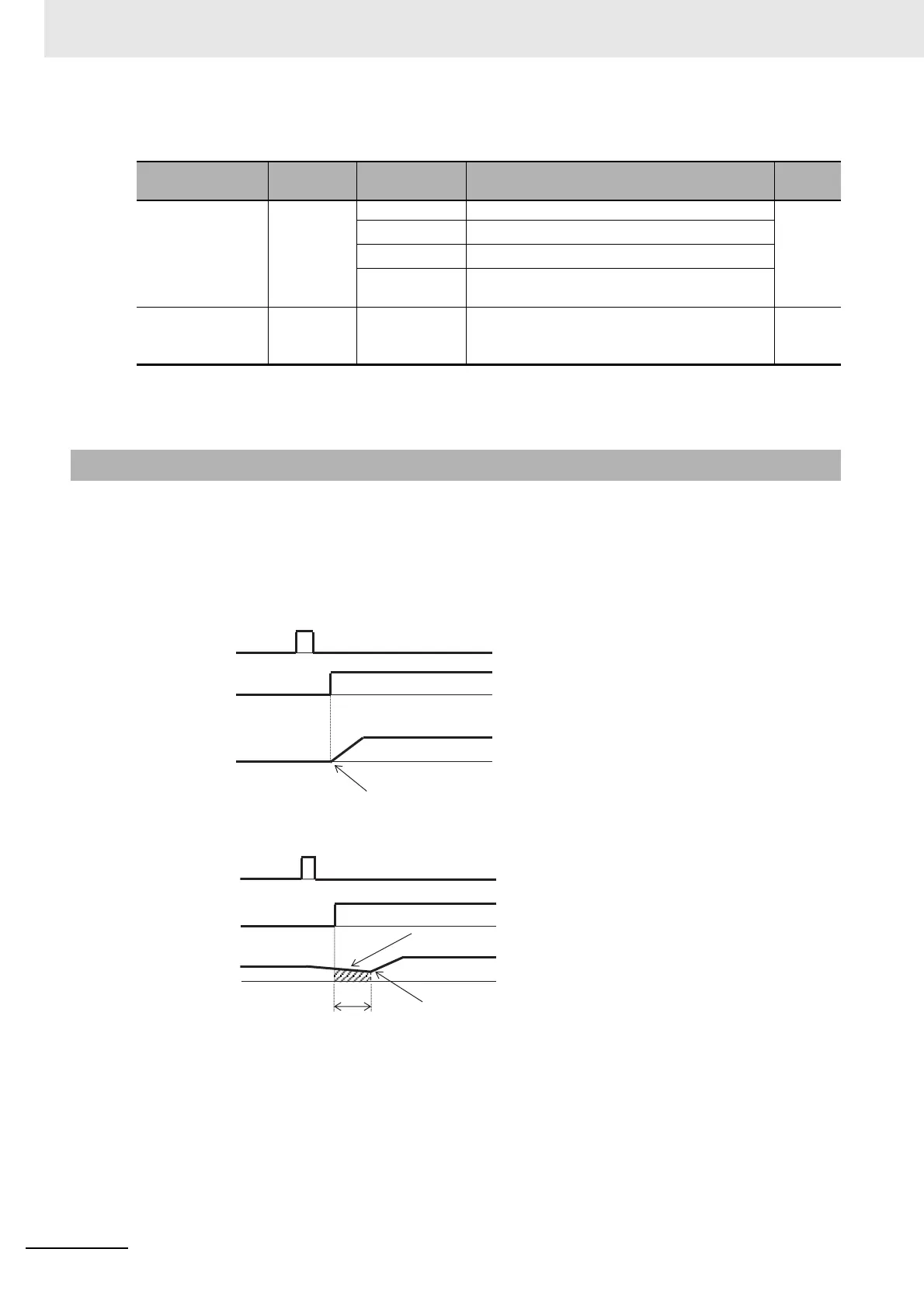

7-5-7 Starting after Free-run Stop
Restart with 0 Hz
[FRS]
terminal
Operation
command
Motor speed
[bb-26]
[FRS]
terminal
Operation
command
Motor speed
Free-running
Follows [bb-40]
