3 Operation
3 - 22
High-function General-purpose Inverter RX2 Series User’s Manual
Precautions for Correct Use
What is displayed on the first line of the three-line monitor screen (H01) is the same as that dis-
played on the upper area of the setting screen (H03) and the screen with large character (H04).
On the setting screen, you can control parameter data while performing monitoring. To change the
selected data, the screen changes to the setting screen that shows options.
Example) Change the output frequency monitor to the PID1 output monitor.

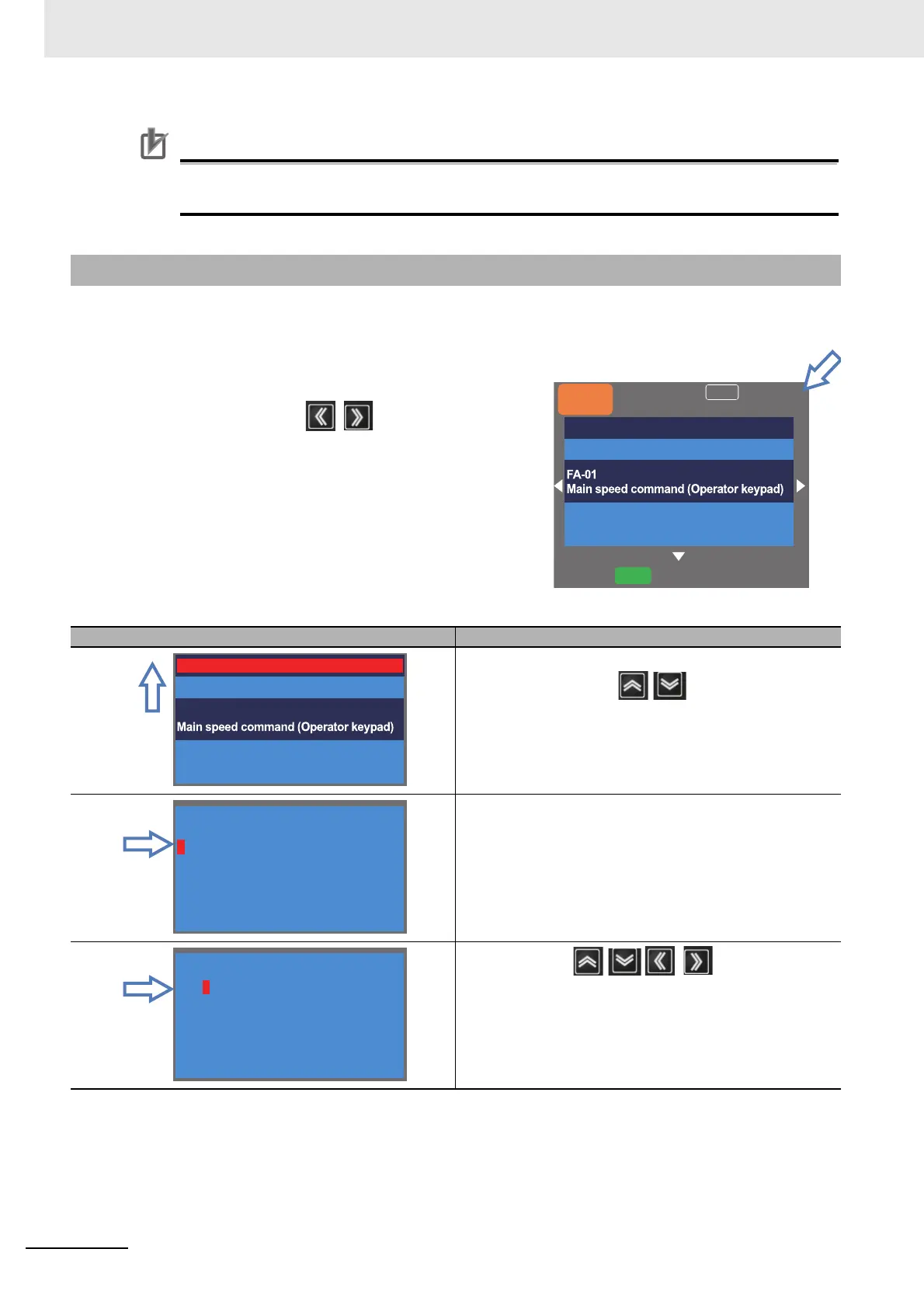

3-3-2 Setting Screen “Concurrent Monitor”
Set-up procedure Action
Press the Enter key to change the color of parameter field.
Using the up and down ( ) keys to select and
navigate to the detail of monitoring.
When the Enter key is pressed, the left-most letter of the
parameter can be changed.
Using the arrow ( ) keys, change
[dA-01] to [db-50].
On the screen that is displayed upon power-on,
using the right and left ( ) keys, navigate
to “H03”.
Menu
Optional
device
60.00Hz
oFW
STOP
M1
H03
Output Frequency
0.00 Hz
60.00 Hz
[0.00-60.00]
Output Frequency
0.00 Hz
FA-01
0.00 Hz
[0.00-60.00]
dA-01
Output frequency monitor
0.00 Hz
db-50
PID1 output monitor
0.00 %
