3-7 Changing the Data Indicated at the
Bottom Center
You can change the data contents indicated.
Instead of the preset indication, you can set a controller’s (inverter) name to indicate.
On the screen that is displayed upon power-on, press the F2(2) key to navigate to the option screen
“o01”. Then, select data that is shown at the bottom center by pressing the Enter key. After selecting
data, save it by pressing the F2(2) key.
Sets the indicating item as following table.
Option Description
01 Controller (inverter) name (o02) You can specify 8-digit string from alphanumeric letters
and symbols.
02 Data displayed at the
bottom center (o03)
00 Frequency command The current frequency command is displayed.
01 Torque command The current torque command is displayed during torque
control.
02 Time The current time is displayed.
03 Controller name The specified controller (inverter) name is displayed.

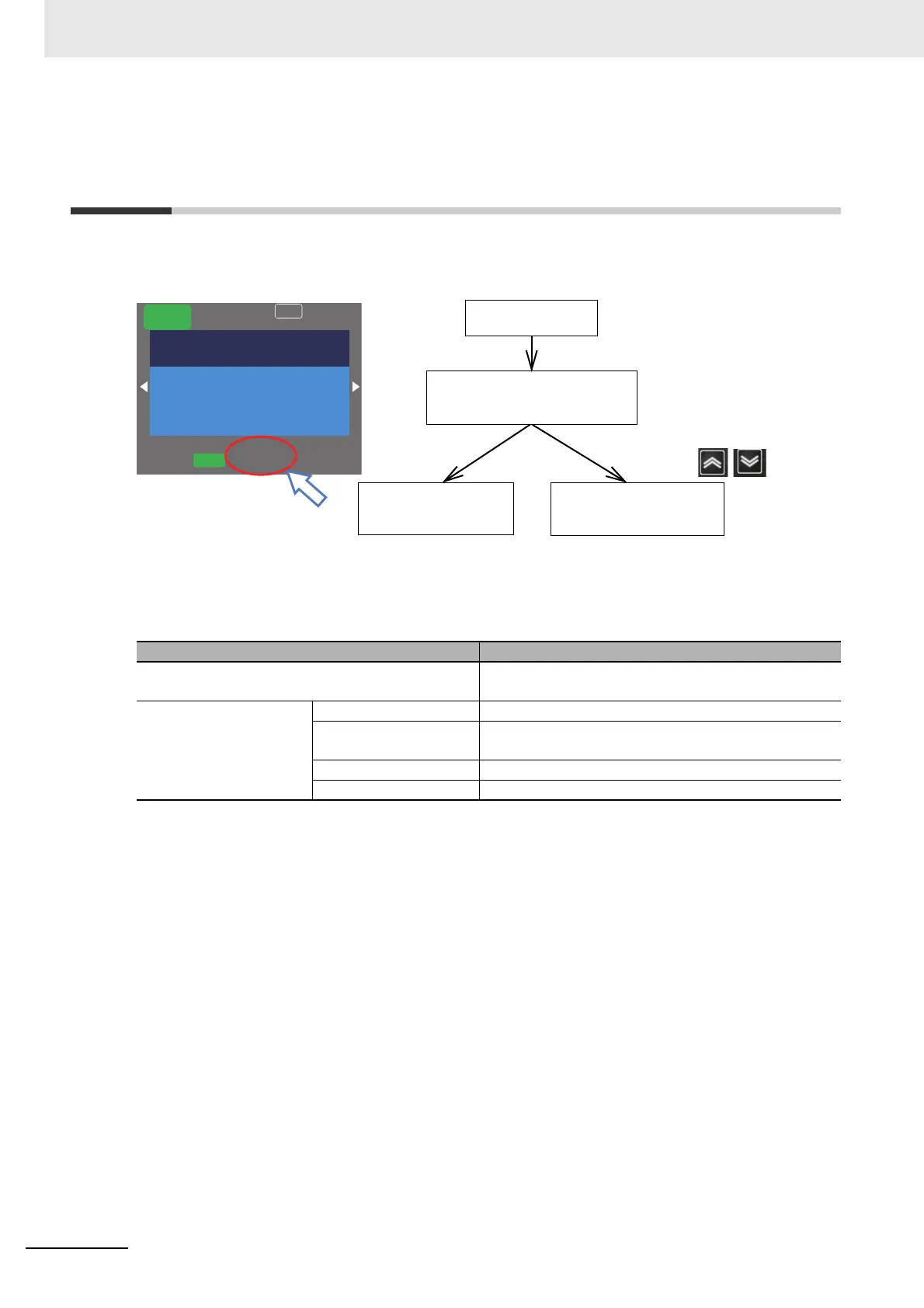

Main Monitor screen
Screen displayed at the bottom
center (o01)
F2(2) key
Select 01 Select 02
* Select by + Enter
Selects data indicated at
the bottom center (o03)
Menu
Optional
device
46.49Hz
oFW
RUN
FW
M1
H04
dA-01
Output frequency
29.51 Hz
