3 Operation
High-function General-purpose Inverter RX2 Series User’s Manual
3-3 Monitor Function
3
3-3-3 Monitor with Large Characters
Precautions for Correct Use
What is displayed on the upper monitor of the setting screen “Concurrent monitor” (H03) is the
Same as that displayed on the first line of three-line monitor screen (H01) and the screen with
large characters(H04).
In the monitor screen with large characters, you can display a parameter in bigger size.
Example) Change the output frequency monitor to the integrated input power monitor.
Precautions for Correct Use
What is monitored on the screen with large characters (H04) is the same as the upper monitor
of the setting screen (H03) and the first line of three-line monitor screen (H01).
Press the Enter key to confirm the monitoring target, which is
then displayed in the upper section.
Press the F1(1) key to return to the monitor.
You can also configure parameters using the up and down
( ) keys.

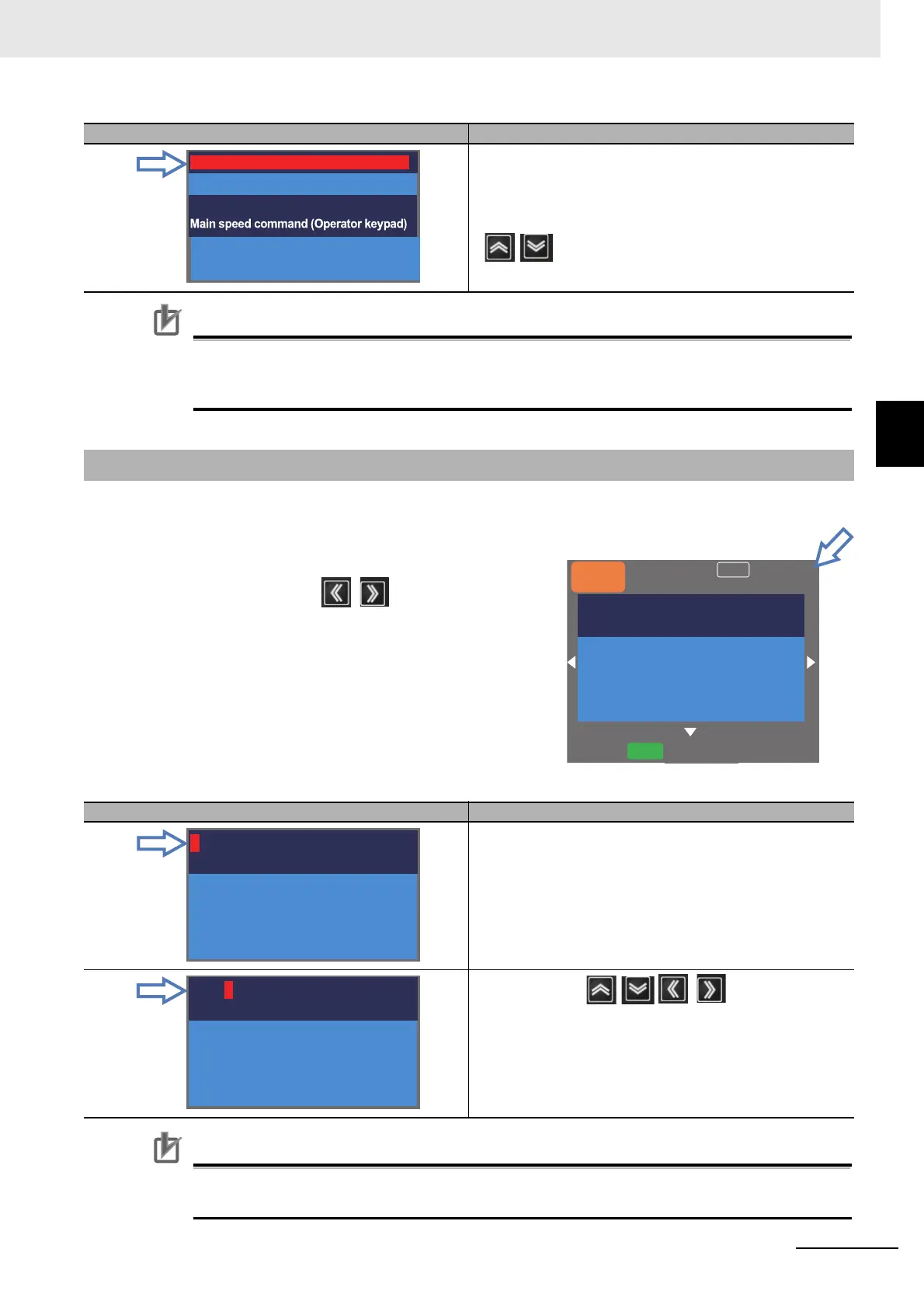

3-3-3 Monitor with Large Characters
Set-up procedure Action
When the Enter key is pressed, the left-most letter of the
parameter can be changed.
Using the arrow ( ) keys, change
[dA-01] to [dA-32]. Press the Enter key to confirm and return
to the monitor.
Set-up procedure Action
PID1 output monitor
0.00 Hz
FA-01
0.00 Hz
[0.00-60.00]
On the screen that is displayed upon power-on
using the right and left ( ) keys, naviate
to “H04”.
And later operate the device in the following proce-
dures.
Menu
Optional
device
60.00Hz
oFW
STOP
M1
H04
dA-01
Output Frequency
0.00 Hz
dA-01
Output Frequency
0.00 Hz
dA-32
Integrated Input Power
11.9 kWh
