8 Applied Settings
8 - 146
High-function General-purpose Inverter RX2 Series User’s Manual
FA3 outputs signals when the output frequency during acceleration/deceleration reaches the value of
Arrival Frequency Setting During Acceleration/Deceleration 1 (CE-10, CE-11).
FA5 outputs signals when the output frequency during acceleration/deceleration reaches the value of
Arrival Frequency Setting During Acceleration/Deceleration 2 (CE-12, CE-13).
Assign the output terminal functions 004 [FA3] and 006 [FA5] set frequency only output signals to one
of [CC-01] to [CC-07] that corresponds to the output terminal and output the signals.
The signals [FA3] and [FA5] can be output individually.
Precautions for Correct Use
• The operation of [FA3] can be set through [CE-10] and [CE-11].
• The operation of [FA5] can be set through [CE-12] and [CE-13].
Parameter
8-8-3 Set Frequency Matched Signal (FA3/FA5)
Item Parameter Data Description
Default
data
Output terminal func-
tion selection
[CC-01] to
[CC-05]
004
006
[FA3]: The set frequency only reaching sig-
nal will be output to the output terminal
assigned.
[FA5]: The set frequency only reaching sig-
nal 2 will be output to the output terminal
assigned.
-
Relay output terminal
function selection
[CC-06]
Relay output terminal
function selection
[CC-07]
Arrival frequency set-
ting during accelera-
tion 1
[CE-10]
0.00 to
590.00(Hz)
The frequency to judge that the frequency
has been reached in acceleration and output
the signal [FA3].
0.00
Arrival frequency set-
ting during decelera-
tion 1
[CE-11]
0.00 to
590.00(Hz)
The frequency to judge that the frequency
has been reached in deceleration and out-
put the signal [FA3].
0.00
Arrival frequency set-
ting during accelera-
tion 2
[CE-12]
0.00 to
590.00(Hz)
The frequency to judge that the frequency
has been reached in acceleration and output
the signal [FA5].
0.00
Arrival frequency set-
ting during decelera-
tion 2
[CE-13]
0.00 to
590.00(Hz)
The frequency to judge that the frequency
has been reached in deceleration and out-
put the signal [FA5].
0.00

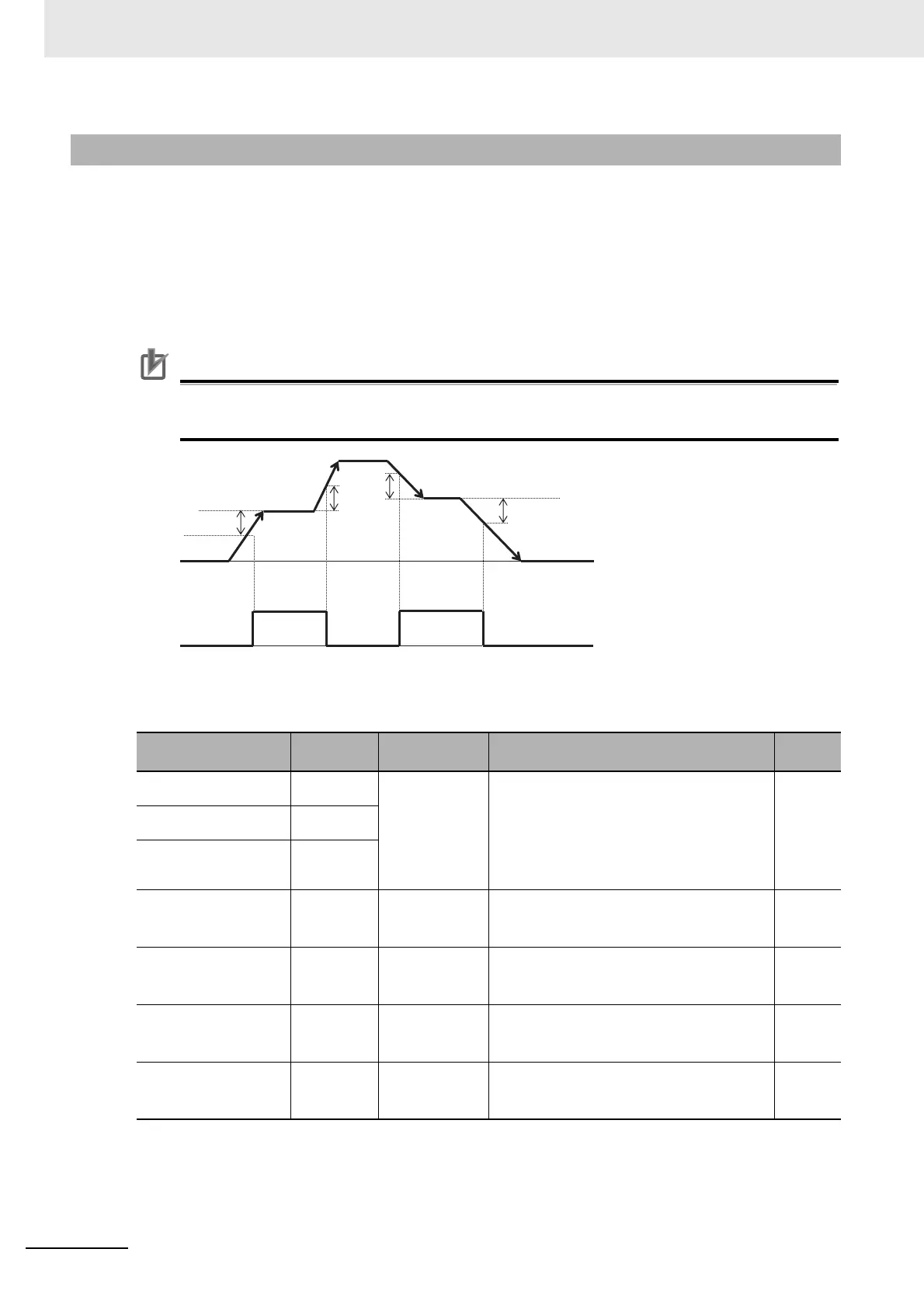

fon
fon
foff
foff
[CE-1 1]/[CE-1 3]
[CE-1 0]/[CE-1 2]
[FA3]/[FA5]
ON
OFF
Output
Frequency
fon: 1% of the maximum frequency
foff: 2% of the maximum frequency
(Operation example)
Maximum frequency: 60 Hz
When [CE-10] = [CE-11] = 50 Hz
• fon=60×0.01=0.6Hz
• foff=60×0.02=1.2Hz
• In acceleration: On at 50 - 0.6 = 49.4 Hz
Off at 50 + 1.2 = 51.2 Hz
• In deceleration: On at 50 + 0.6 = 50.6 Hz
Off at 50 - 1.2 = 48.8 Hz
