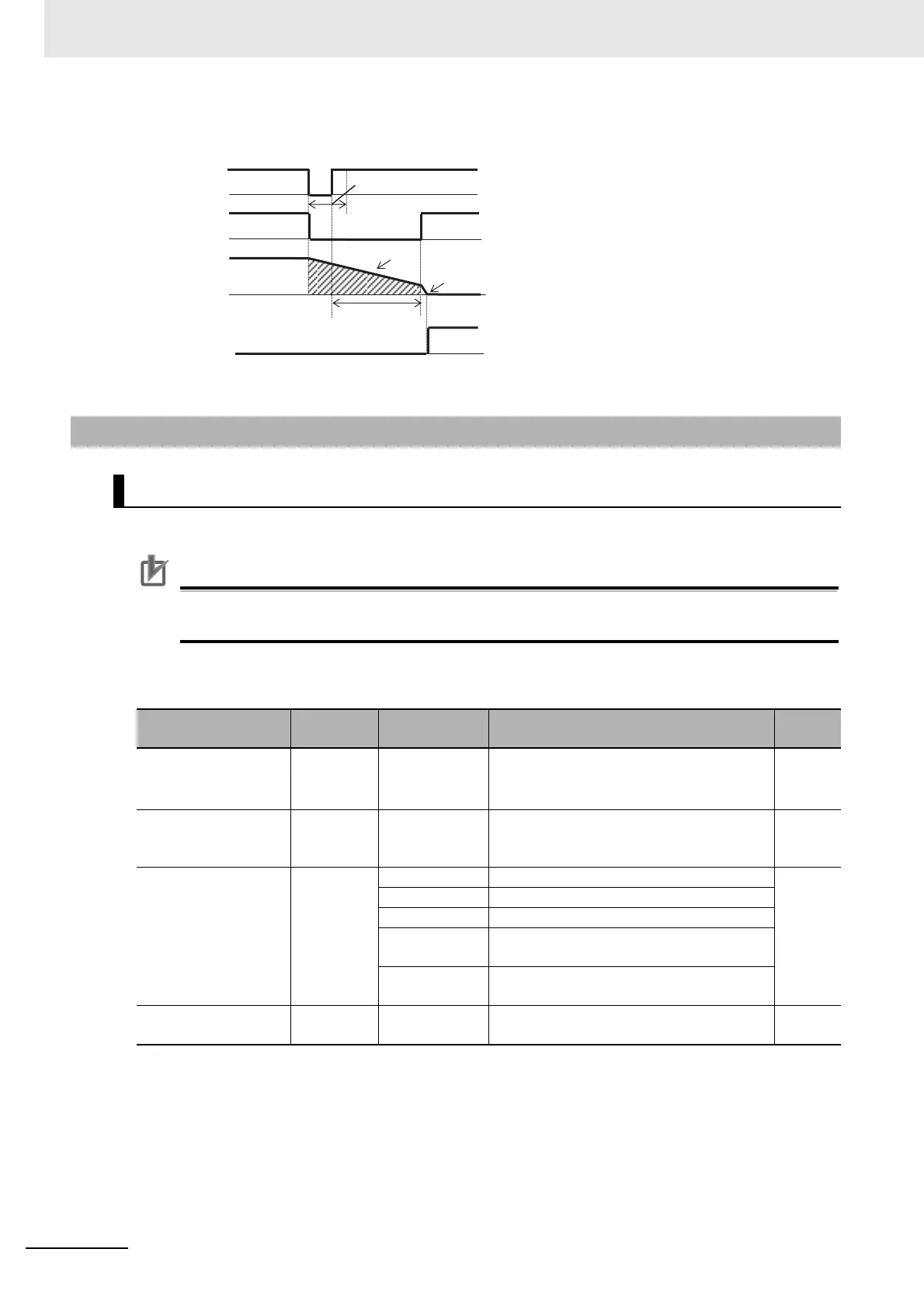

8 Applied Settings
8 - 58
High-function General-purpose Inverter RX2 Series User’s Manual
(Ex.6) When [bb-20] ≠00 and [bb-24] = 04, it restarts by picking up the frequency, and then after decel-
eration according to the setting, the motor trips when stopped.
Note The motor will trip after instantaneous power failure allowable time.
In case of overcurrent, you can restart without causing tripping.
Precautions for Correct Use
If overcurrent continues to be observed, there are some possible causes: short acceleration
time, heavy load, locked motor, etc.
Parameter
8-2-7 Restart on Overvoltage/Overcurrent
Restart Overcurrent
Item Parameter Data Description
Default
data
Over current detection
level, 1st-motor
[bb160]
Inverter ND
rated current
× (0.2 to 2.2)
*1
*1. On the parameter about the current and the voltage, the figures and the units to be handled vary in the setting
path.
1) Operator or CX-Drive: 0.1 A or 0.1 V (When CX-Drive is operated, set [CF-11] Resister data selection to 00
(A,V). When the data of [CF-11] Resister data selection is not set to 00 (A,V), it is not set or displayed correctly.)
2) Modbus: The current and the voltage vary, depending on the setting of Resister data selection [CF-11].
When [CF-11] Resister data selection is set to 00 (A,V), 0.1 A, 0.1 V
When [CF-11] Resister data selection is set to 01 (%), 0.01% (Rated ratio)
3) Drive programming: 0.01% (Rated ratio)
Sets the level at which the overcurrent is to
be detected.
2.2 ×
ND
Rated
current
The number of retries
after over current
[bb-22] 0 to 5 (Counts)
Sets the retry counts in case of overcurrent.
If this is set to 0, the motor will trip upon
overcurrent.
0
Selection of restart
mode @over-current
[bb-28]
00 Restarts at 0 Hz
01
01 Restarts with the frequency matching
02 Restarts upon frequency pull-in
03
Detection speed (frequency) <v2.00 or
higher>
04
Trips after decelerating and stopping with
the frequency matching
Wait time of restart
@over-current
[bb-29] 0.3 to 100.0(s)
Restarts after waiting for the set time upon
overcurrent.
0.3
Control Power Supply
Instantaneous power
failure allowable time
Free Running
Motor Speed
Retry Standby
Time
Inverter
Output
IP error occurs
Output signal
[AL]
