Omron RX2 Series - Page 459

8 - 59
8 Applied Settings
High-function General-purpose Inverter RX2 Series User’s Manual
8-2 Tripless Functions
8
8-2-7 Restart on Overvoltage/Overcurrent

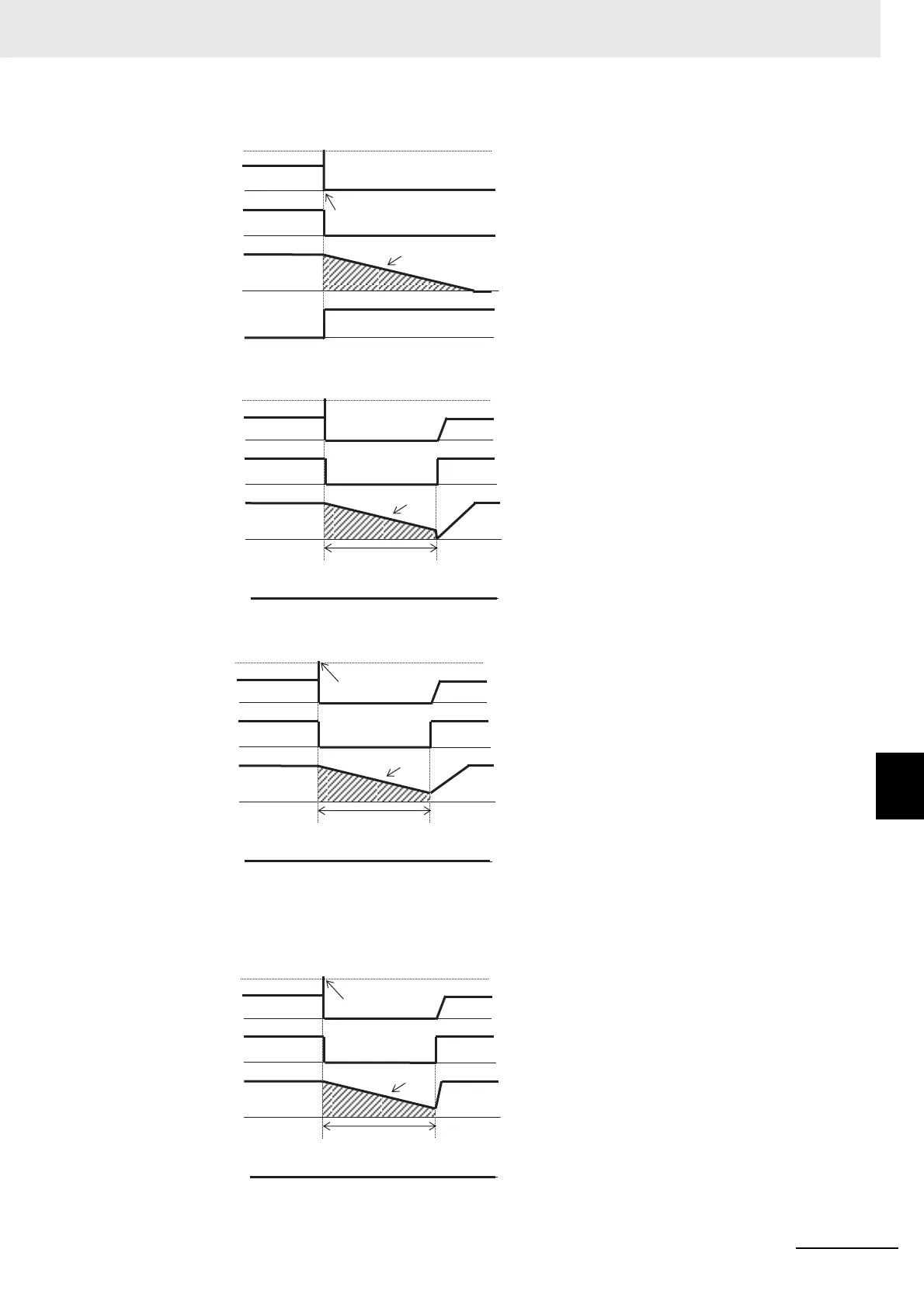

(Ex.1) When [bb-22] = 00, tripping occurs
(Ex.2) When [bb-22] ≠00 and [bb-28] = 00, it restarts at 0 Hz.
(Ex.3) When [bb-22] ≠00 and [bb-28] = 01, it restarts by picking up the frequency.
See 7-5-3 Frequency Matching Start on page 7-65 for details.
(Ex.4) When [bb-22] ≠00 and [bb-28] = 02, it restarts with frequency pull-in.
See 7-5-4 Frequency Pull-in Start on page 7-69 for details.
Output current
Overcurrent Detection Level
Free Running
Motor Speed
Inverter
Output
Overcurrent error occurs
Output signal
[AL]
Retry Standby Time
Output Current
Overcurrent Detection Level
Free Running
Motor Speed
Inverter
Output
Output signal
[AL]
Output Current
Overcurrent Detection Level
Free Running
Motor Speed
Inverter
Output
Overcurrent Error
Retry Standby Time
Output signal
[AL]
Output Current
Overcurrent Detection Level
Free Running
Motor Speed
Inverter
Output
Overcurrent Error
Retry Standby Time
Output signal
[AL]
