Omron RX2 Series - Input Terminal Response Time

8 Applied Settings
8 - 158
High-function General-purpose Inverter RX2 Series User’s Manual
You can set a response time per input terminal.
This function is effective for removing noise caused by chattering, etc.
If stable terminal input is not secured due to chattering, increase the set value. However, increasing the
set value results in a slow response.
For the correspondence between input terminals and parameters, please refer to the table shown on
the below.
 Parameter

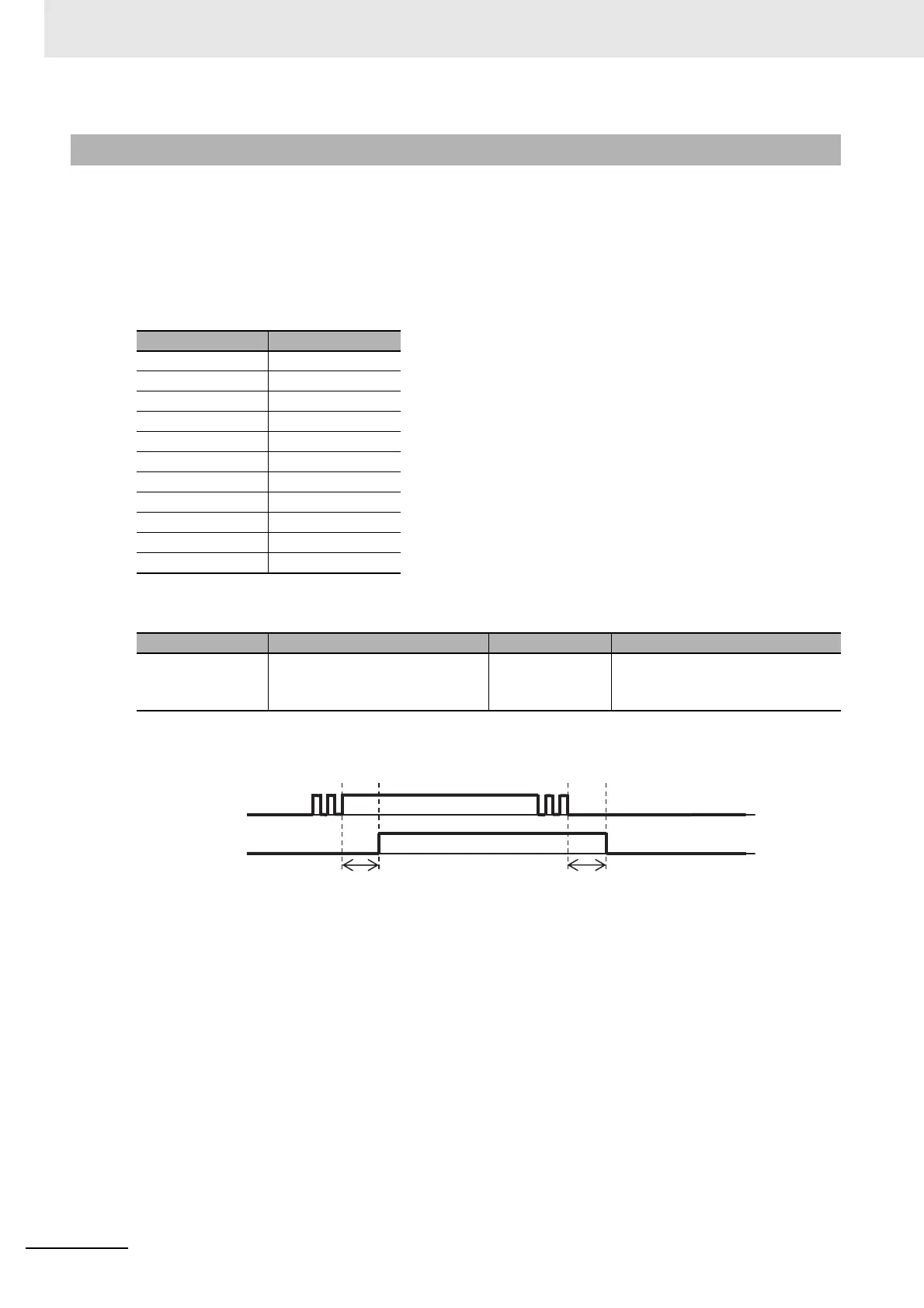

(Ex.) Operation of Input terminal 1
8-10-3 Input Terminal Response Time
Input terminal Response time
1[CA-41]
2[CA-42]
3[CA-43]
4[CA-44]
5[CA-45]
6[CA-46]
7[CA-47]
8[CA-48]
9[CA-49]
A[CA-50]
B[CA-51]
Item Parameter Data Description
Input terminal
response time
[CA-41]/[CA-42]/[CA-43]/[CA-44]/
[CA-45]/[CA-46]/[CC-47]/[CA-48]/
[CA-49]/[CA-50]/[CA-51]
0 to 400(ms)
*1
*1. When setting to 0, the operation starts about at 1 ms.
Sets a response time.
[CA-41]
[CA-41]
ON
OFF
OFF
ON
Operation of
input terminal
Operation of
internal function
