3 Operation
3 - 14
High-function General-purpose Inverter RX2 Series User’s Manual
3-2 Parameter Settings
Two procedures are provided for parameter settings:
• “scroll mode” in which you can check list of setting data of parameters
• “concurrent monitor mode” you can change parameters while watching the monitor under operation.
When configuring basic settings of motor, base frequency, rated voltage of motor, input and output of
terminals, as well as when configuring individual functions, change parameters in the scroll mode.
You can check list of setting data of parameters in the scroll mode, therefore, it is also useful when
checking the settings.

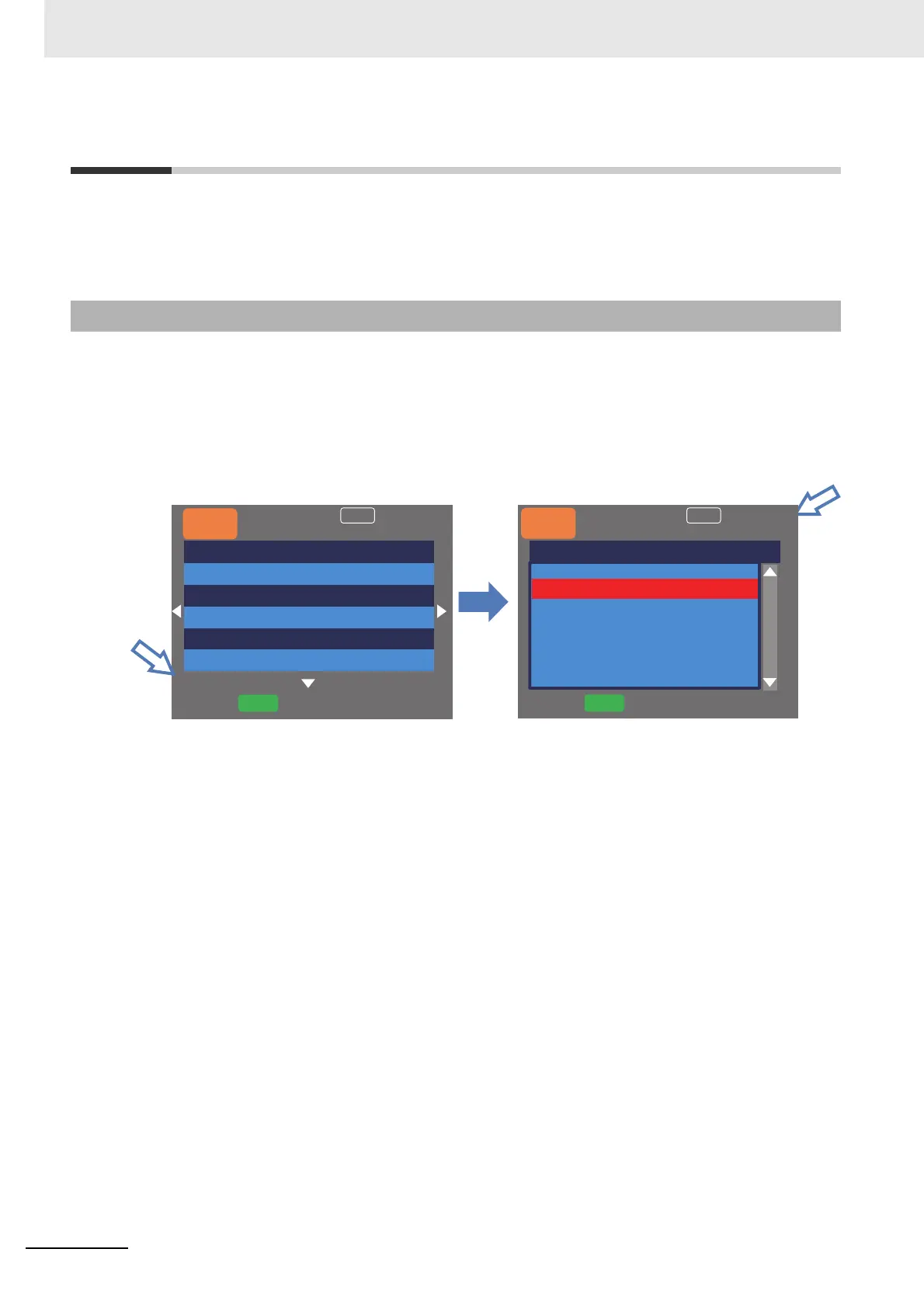

Press F1 (Menu) key on the screen that is displayed upon power-on (Multi-monitor in the example
below) to move to the system settings screen (M01).
3-2-1 Scroll Mode
Menu
Optional
device
0.00Hz
oFW
M1
M01
Menu
01 Scroll mode
02 R/W function
03 System settings
Menu
Optional
device
46.49Hz
oFW
M1
H01
Output Frequency
29.51 Hz
Output current
11.9 A
Input terminal monitor
LLLLLLLLLLL
STOP
STOP
To Next Page
