6 - 43
6 Basic Parameter Settings
High-function General-purpose Inverter RX2 Series User’s Manual
6-4 Frequency Command Settings
6
6-4-13 Temporal Change of Frequency Command Destinations

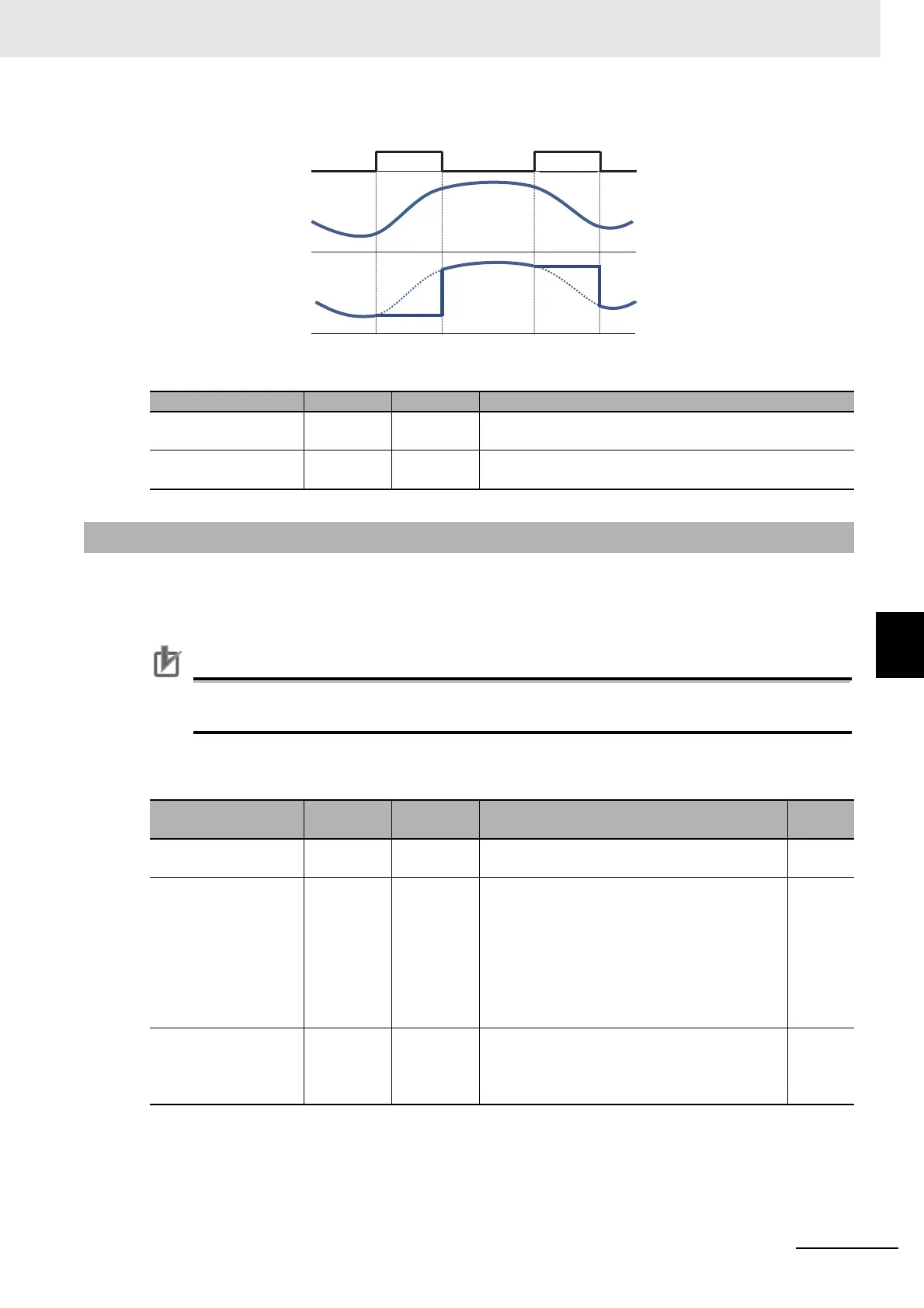

A frequency command uses [AHD] in the analog input.
 Parameter
When [F-OP] terminal is ON, the frequency destination can be changed temporally.
When 023 [F-OP] terminal is ON, the command destination of [CA-70] is employed in a priority to the
frequency command destination given in [AA101].
Precautions for Correct Use
When 023 [F-OP] terminal is ON, the operation command destination also employs the opera-
tion command selection designated in [CA-71].
 Parameter
Item Parameters Data Description
Main speed command
selection
[AA101] 01 to 15 01: Ai1-L input, 02: Ai2-L input, 03: Ai3-L input
Input terminal function
selection
[CA-01] to
[CA-11]
019 AHD: Analog command holding
6-4-13 Temporal Change of Frequency Command Destinations
Item Parameters Data Description
Default
data
Input terminal function
selection
[CA-01] to
[CA-11]
023 [F-OP]: Gives a forced command. -
Speed reference
source selection at
[F-OP] is active
[CA-70] 01 to 15
01: Ai1-L input, 02: Ai2-L input, 03: Ai3-L input,
04: (Reserved), 05: (Reserved), 06: (Reserved),
07: parameter setting,
08: RS485 communication, 09:option 1,
10: option 2, 11: option 3,
12: pulse string input (main body),
13: pulse string input (option)
14: program function, 15: PID arithmetic
01
RUN command source
selection at [F-OP] is
active
[CA-71] 00 to 06
00: [FW]/[RV] terminal, 01: 3 wire,
02: RUN key on LCD operator,
03: RS485 communication, 04: option 1,
05: option 2, 06: option 3
00
AHD
ON
ON
Analog input
Frequency command
