8 Applied Settings
8 - 142
High-function General-purpose Inverter RX2 Series User’s Manual
 Parameter
Assign the output terminal function 031 [FR] start-up contact signal to one of [CC-01] to [CC-07] that
corresponds to the output terminal and output the signal.
The start-up contact signal 031 [FR] is output while the inverter accepts operation commands.
The start-up contact signal [FR] is output in accordance with the state how the operation command is
accepted even when the destination of the operation command is not a contact.

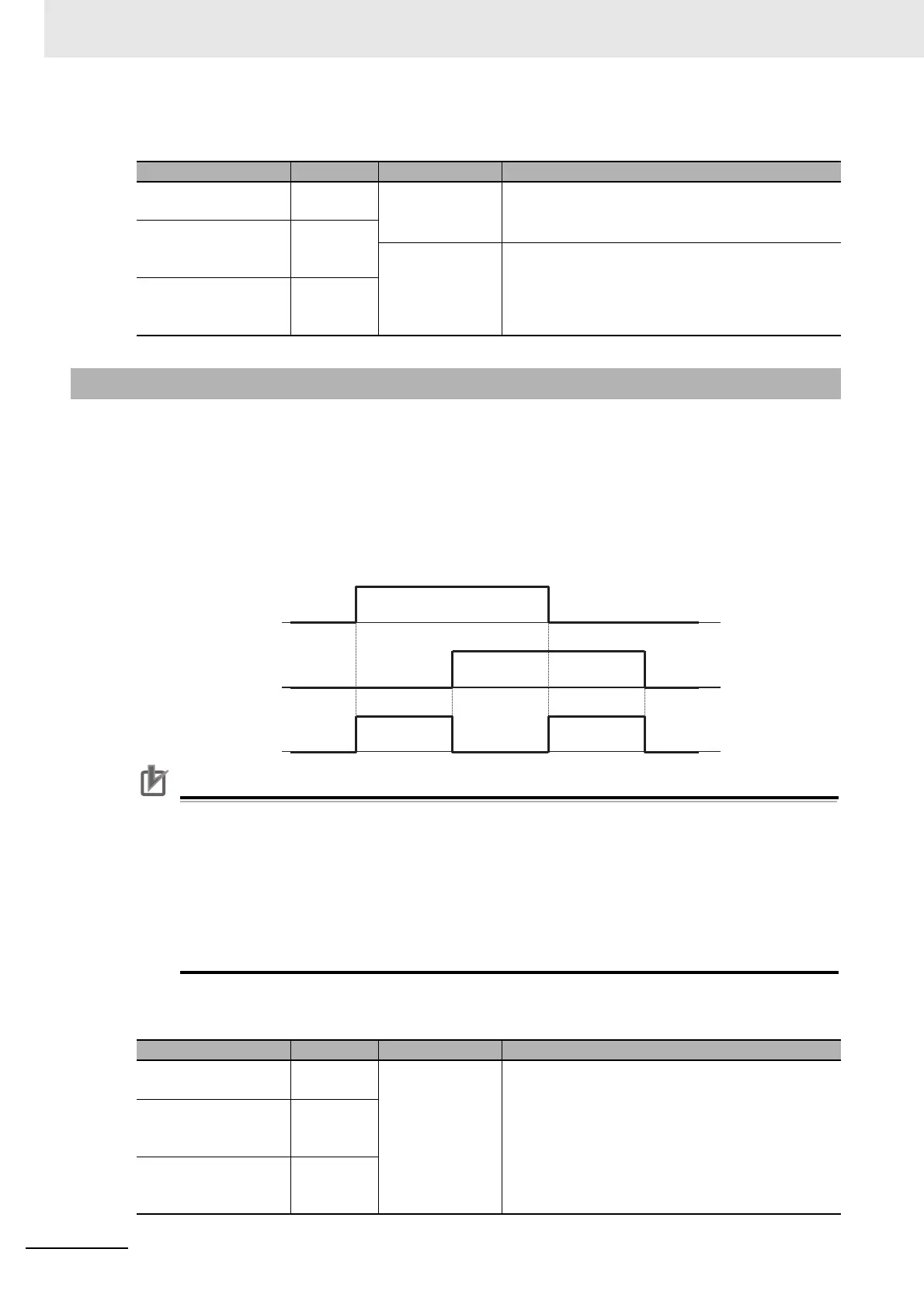

The timing chart is as follows.
(Ex.) In the case of a terminal command
Precautions for Correct Use
• When the inverter is operated by using terminal commands, simultaneous inputs of the for-
ward-direction command [FW] and the reverse-direction command [RV] will cause a com-
mand mismatch, which is interpreted as the stop command. In this case, the [FR] signal will
not be output.
• The signal becomes ON not only when the motor is operating at normal rotation but also
when a voltage is output to the motor as a function such as DC breaking.
• When the operation enable signal 101 [REN] has been assigned and set to OFF, the signal
[FR] becomes OFF because the inverter cannot be operated.
 Parameter
Item Parameter Data Description
Output terminal func-
tion selection 11-15
[CC-01] to
[CC-05]
008
[FWR]: The forward-direction operation signal is out-
put to the output terminal assigned.
Relay output terminal
function selection
16A-16C
[CC-06]
009
[RVR]: The reverse-direction operation signal is out-
put to the output terminal assigned.
Relay output terminal
function selection
AL1-AL0/AL2-AL0
[CC-07]
8-7-3 Starting Contact Signal
Item Parameter Data Description
Output terminal func-
tion selection 11-15
[CC-01] to
[CC-05]
031
[FR]: The start-up contact signal is output to the out-
put terminal assigned.
Relay output terminal
function selection
16A-16C
[CC-06]
Relay output terminal
function selection
AL1-AL0/AL2-AL0
[CC-07]
Forward-direction
command [FW]
Reverse-direction
command [RV]
Start-up contact
signal [FR]
