Omron RX2 Series - Wiring for Digital Operator; Wiring for STO Function

2 - 73
2 Design
High-function General-purpose Inverter RX2 Series User’s Manual
2-3 Wiring
2

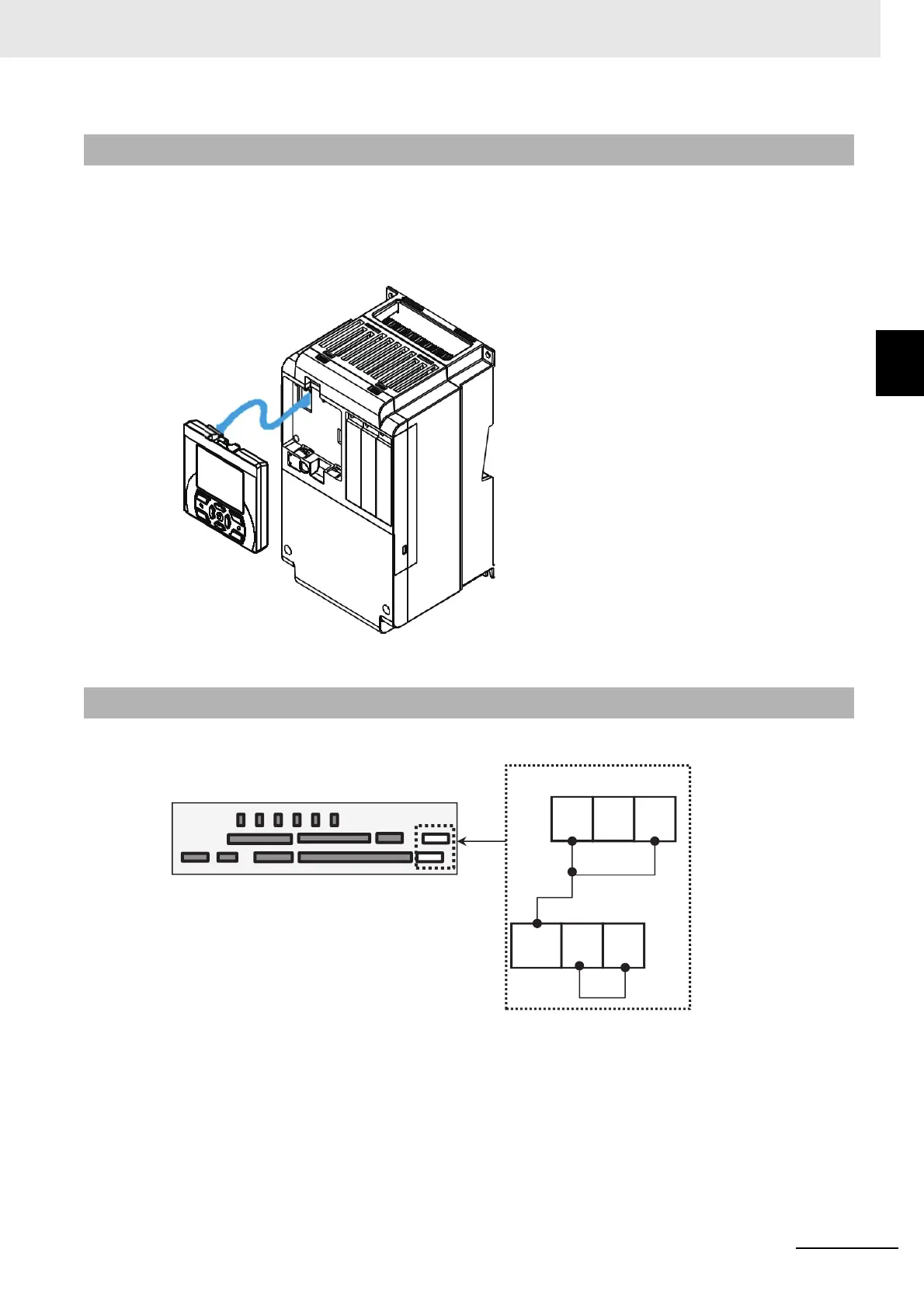

2-3-8 Wiring for Digital Operator
The LCD operator can be used with the panel being taken out the enclosure of the inverter.
You can take out the Digital Operator outside the main body for operation. Use optional cables
3G3AX-OPCN 1 (1m) or 3G3AX-OPCN-3 (3m).
While power is supplied to the inverter, do not attach or remove the Digital Operator.
The following describes STO input used at STO function and EDM output.
2-3-8 Wiring for Digital Operator
2-3-9 Wiring for STO Function
Height: 78mm, Width: 78mm
P24S
STC
CMS
ST1
ST2
STC
Control circuit terminals
Wiring at factory default
STO input
