Omron RX2 Series - External Dimensions

11 Options
11 - 32
High-function General-purpose Inverter RX2 Series User’s Manual

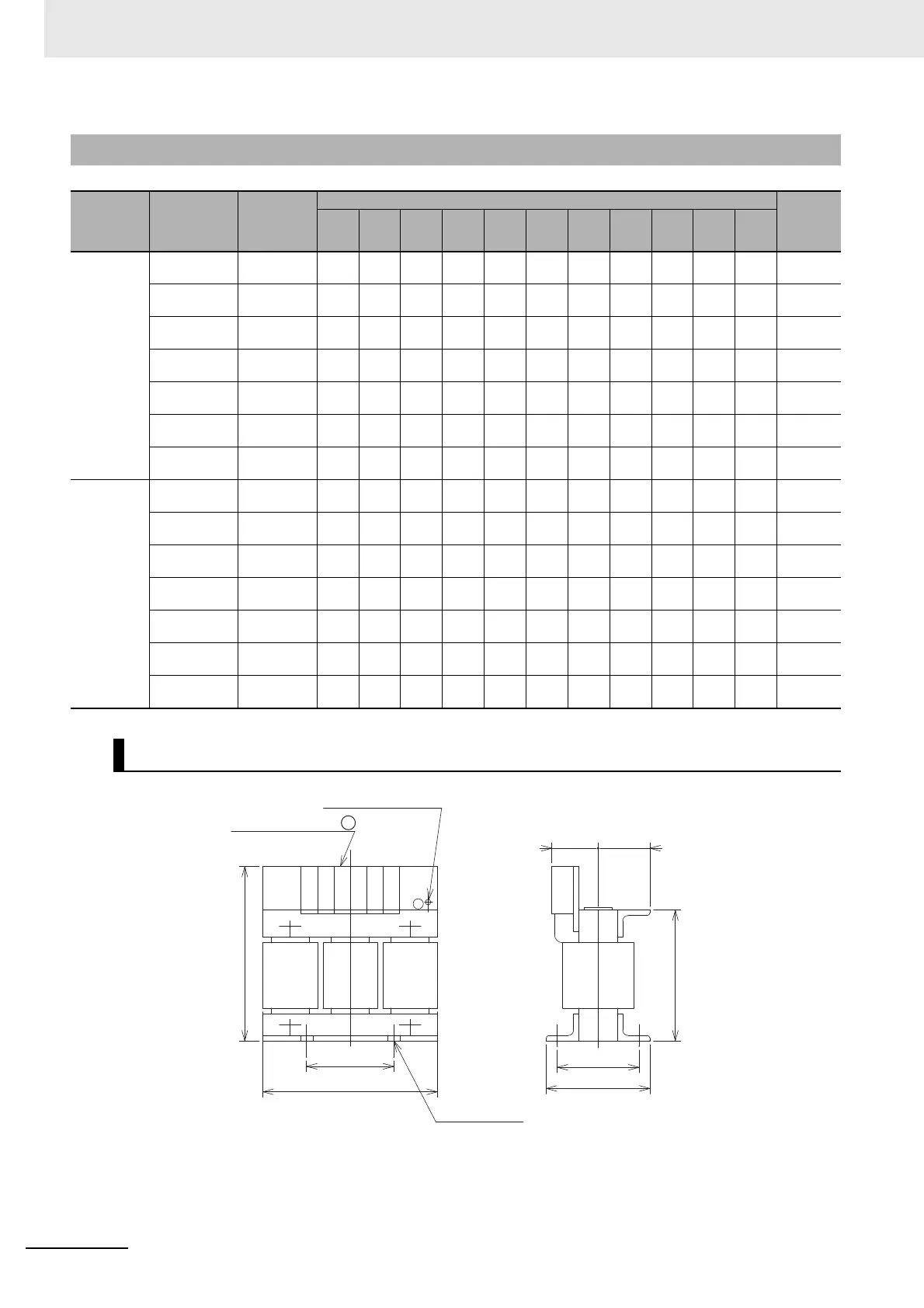

11-6-2 External Dimensions
Inverter
input
power sup-
ply
Model
Applicable
motor
capacity
[kW]
Dimensions [mm]
Weight
[kg]
A C D E H H1 X Y J K W
3-phase
200 VAC
3G3AX-
AL2025
0.2 to 1.5 120 82 60 40 150 94 50 67 6 4.0 9.5 2.8
3G3AX-
AL2055
2.2, 3.7 120 98 60 40 150 94 50 75 6 4.0 9.5 4.0
3G3AX-
AL2110
5.5, 7.5 150 103 70 55 170 108 60 80 6 5.3 12.0 5.0
3G3AX-
AL2220
11, 15 180 113 75 55 190 140 90 90 6 8.4 16.5 10.0
3G3AX-
AL2330
18.5, 22 180 113 85 60 230 140 125 90 6 8.4 22.0 11.0
3G3AX-
AL2500
30, 37 260 113 85 60 290 202 100 90 7 8.4 27.0 19.0
3G3AX-
AL2750
45, 55 260 144 110 80 290 207 125 112 7 8.4 28.5 25.0
3-phase
400 VAC
3G3AX-
AL4025
0.4 to 1.5 130 82 60 40 150 94 50 67 6 4 9.5 2.7
3G3AX-
AL4055
2.2, 3.7 130 98 60 40 150 94 50 75 6 5 12.5 4.0
3G3AX-
AL4110
5.5, 7.5 150 116 75 55 170 106 60 98 6 5 12.5 6.0
3G3AX-
AL4220
11, 15 180 103 75 55 190 140 100 80 6 5.3 12.0 10.0
3G3AX-
AL4330
18.5, 22 180 123 85 60 230 140 100 100 6 6.4 16.5 11.5
3G3AX-
AL4500
30, 37 260 113 85 60 290 202 100 90 7 8.4 22.0 19.0
3G3AX-
AL4750
45, 55 260 146 110 80 290 207 125 112 7 8.4 22.0 25.0
3G3AX-AL2025/AL2055/AL4025/AL4055/AL4110
Ro So ToRST
H max.
H1 max.
A max.
D max. E max.
C max.
Y±1
X±1
4-φJ (Cutout)
Terminal screw 6-M
K
Ground terminal (M5)
