4 Test Run
High-function General-purpose Inverter RX2 Series User’s Manual
4-3 Operation only with LCD Operator
4
4-3 Operation only with LCD Operator
This section describes how to conduct a test run with LCD operator.
To perform a test run only with the LCD operator, check the following parameters, or set the following
parameters from the initial value.
(a) Frequency command source selection [AA101]
(b) Main speed command [FA-01]
(c) Operation command source selection [AA111]
(d) Setting the electronic thermal level of motor [bC110]

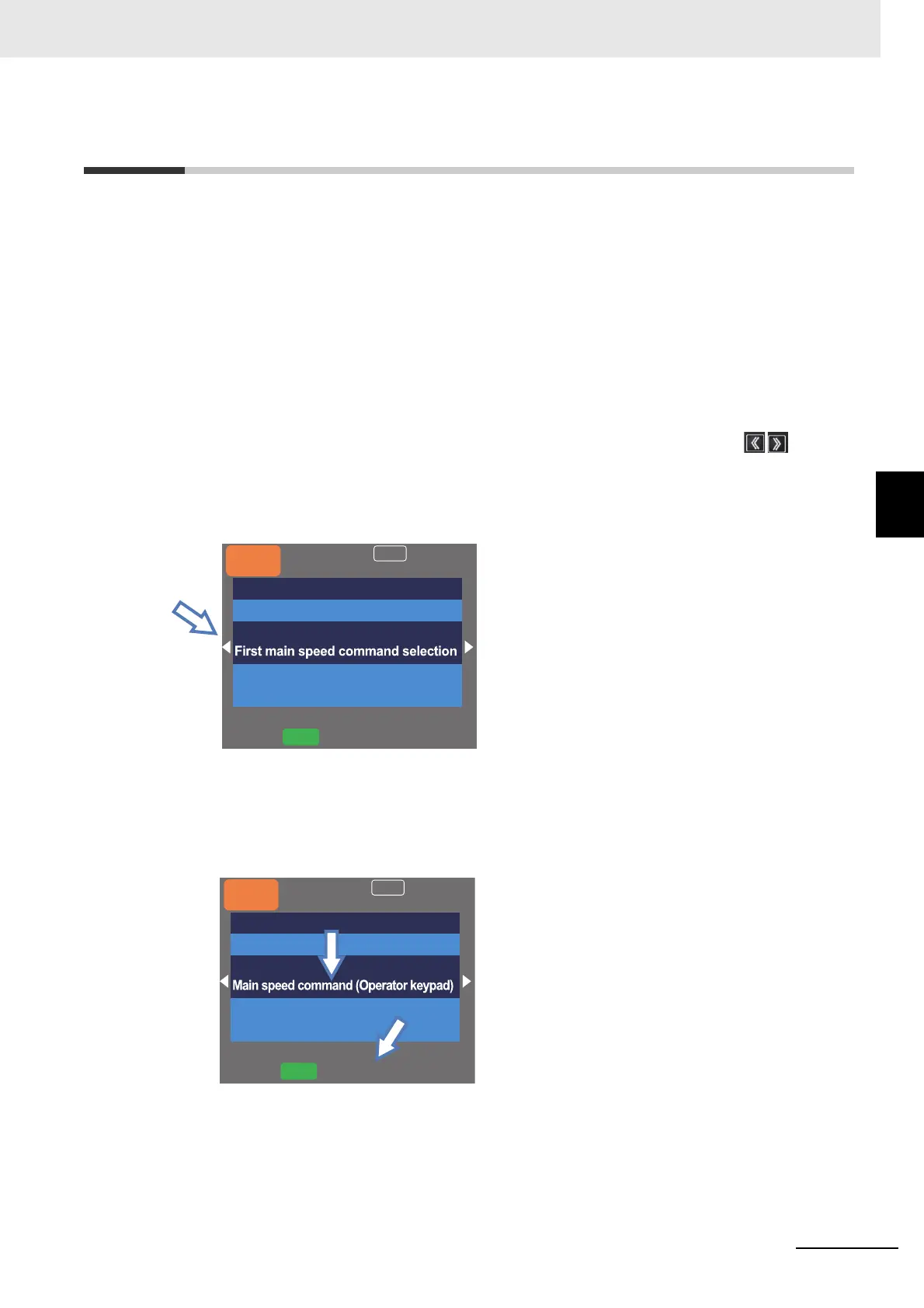

A test run can be performed with the LCD operator.
Procedure
• From the initial screen displayed at power-on, move to “H03” with the LEFT/RIGHT ( ) keys.
• For procedure of changing parameters, see 3-2-1 Scroll Mode on page 3-14.
1 Frequency command source selection [AA101]
Set the frequency command destination to “07: Parameter set-up”.
2 Main speed command [FA-01]
When the frequency command source is set to “07: Parameter set-up”, “Main speed command
(Operator keypad)” will be shown.
If a frequency command is set in this state, the value will be shown at the bottom command
monitor area.
Menu
Option
0.00Hz
oFW
STOP
M1
H03
Output Frequency
0.00 Hz
AA101
07: Parameter set-up
Menu
Option
60.00Hz
oFW
STOP
M1
H03
Output Frequency
0.00 Hz
FA-01
60.00 Hz
To Next Page
