High-function General-purpose Inverter RX2 Series User’s Manual
3 Operation command source selection [AA111]
When the operation command source is set to “02: LCD operator”, “oFW” will be shown on the
LCD operator at the bottom in the area for displaying function of RUN key.
Note When the operation command source is set to reverse, "oRN" is displayed.
4 Setting the electronic thermal level of motor [bC110]
Set the level so that it does not exceed the rated current of motor.
Precautions for Correct Use
Note that the motor may be burned if the electronic thermal level is not appropriately set.
Note The electronic thermal for protecting the inverter works automatically.
Menu
Option
60.00Hz
oFW
STOP
M1
H03
Output Frequency
0.00 Hz

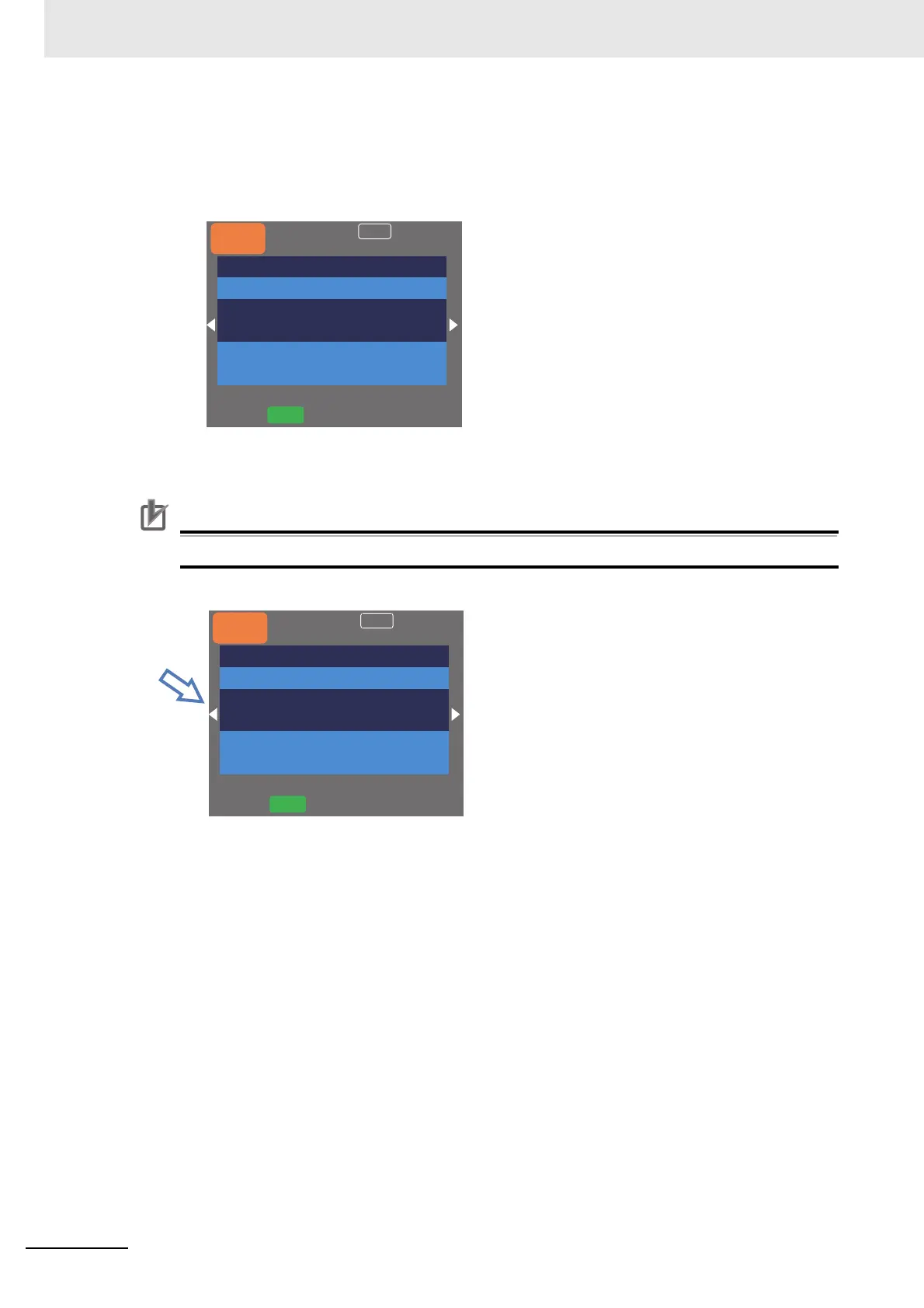

AA111
First operation command selection
02: RUN key on operator keypad
Menu
Option
60.00Hz
oFW
STOP
M1
H03
Output Frequency
0.00 Hz
bC110
First electronic thermal level
25.0 A
[0.0-75.0]
