8-11 Output Terminal Function
8
8-11-6 Output Functions (FM)
4 Adjust the inclination with [Cd-24]. Change [Cd-24] to make an adjustment immediately before
the point at which [Ao2] begins lowering from 20 mA.
(For example, see and wait with a range from 75.0 to 85.0%.)
[Cd-23]=20.0%, [Cd-24]=80.0%
5 Returning [Cd-10] to 00 starts current output of [Ao1] that is adjusted.
With the FM output function, you can make selections from the PWM output in which a duty ratio
changes and the digital frequency output in which a frequency changes.
Precautions for Correct Use
• The finally determined output does not exceed an output range of the [FM] output terminal.
• When [Cd-10]=01 is set, [FM], [Ao1], and [Ao2] respectively perform outputs in accordance
with the values of [Cd-15], [Cd-25], and [Cd-35].

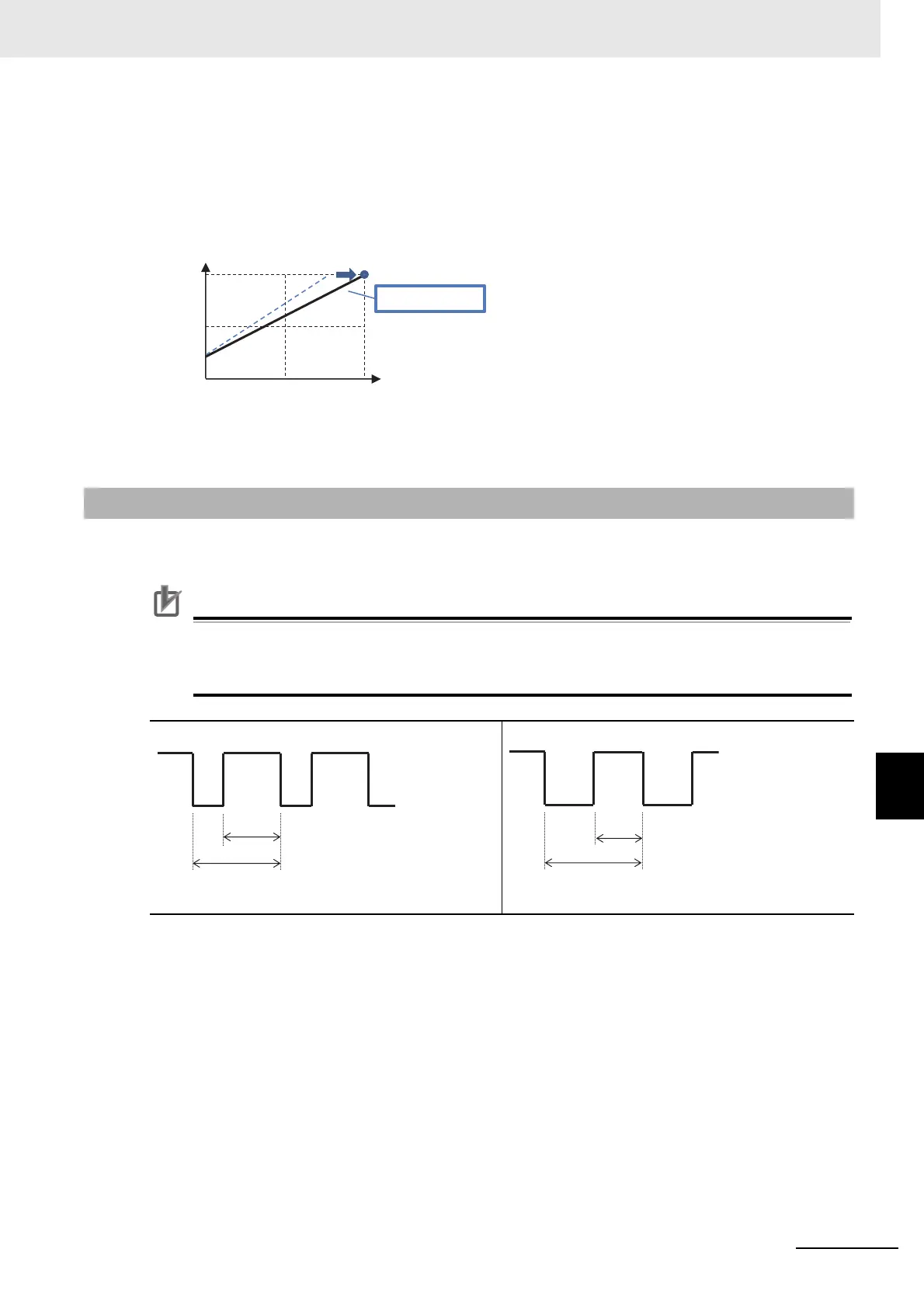

8-11-6 Output Functions (FM)
(Ex.1) [Cd-01]=00 PWM output
(Ex.2) [Cd-01]=01 Digital frequency output
(mA)
20
0
0A
10
[Cd-24 ]= 80.0%
4
Rated current (A)
Output current (A)
Rated current × 2 (A)
t
T
Duty ratio t/T: Changes
Frequency T: Constant (6.4 ms)
T/2
T
Duty ratio (approximately 1/2): Fixed
Frequency T: Changes
