Omron RX2 Series User Manual

Appendices A Technical Information
A - 2
High-function General-purpose Inverter RX2 Series User’s Manual

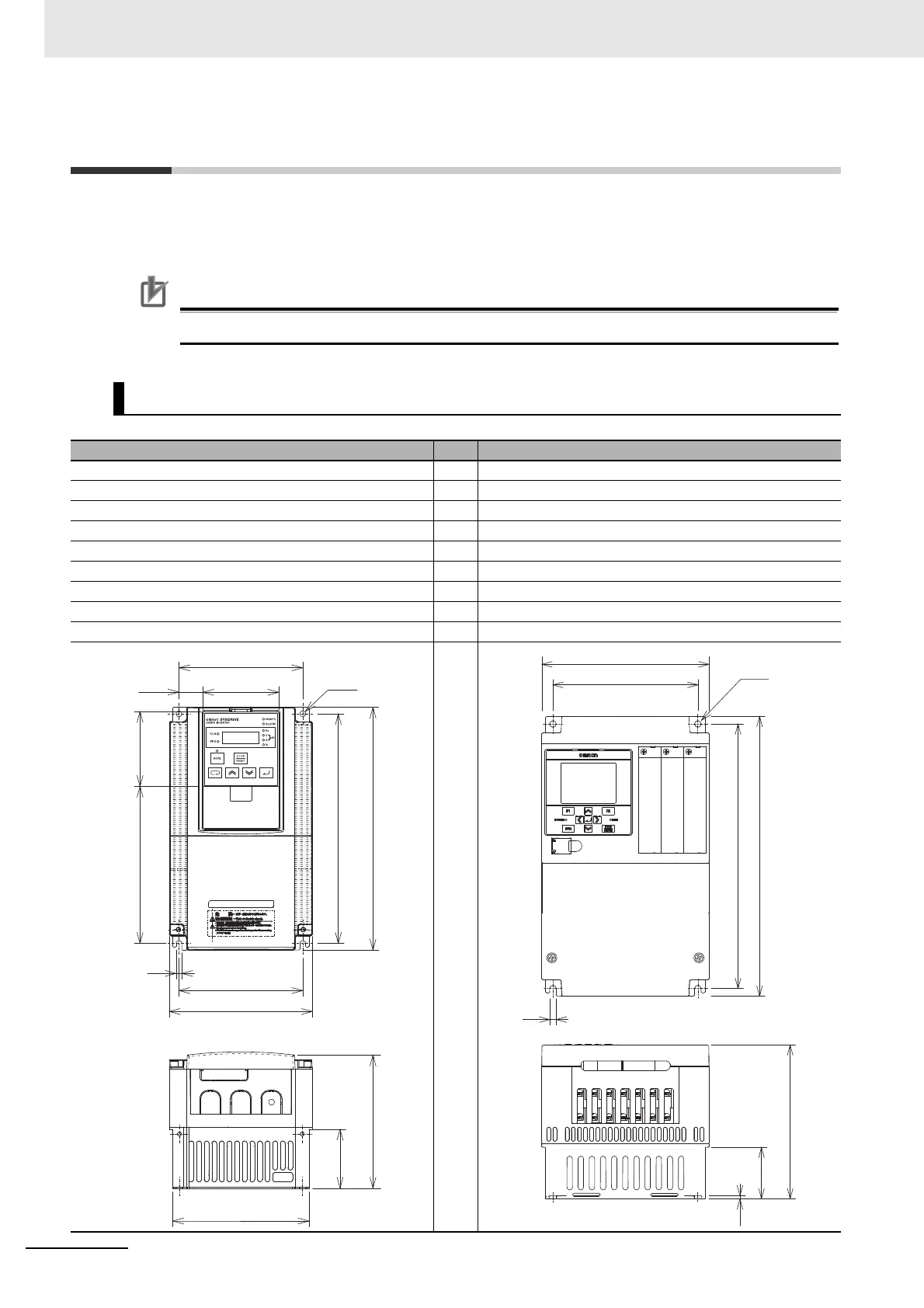

A-1 Comparison of External Dimensions
• A pitch for 3G3RX series V1 is compatible with one for 3G3RX2 series. When replacing, the pitch
installation is available without the change of dimension.
• When installing 3G3RX2 series, refer to 1-3-4 External Dimensions on page 1-13.
Precautions for Correct Use
You can change the duty rating (ND/LD/VLD) on [Ub-03] Duty type selection.
3G3RX-series V1 and 3G3RX2-series
3G3RX-series V1 type → 3G3RX2-series
3G3RX-A2004- V1 → 3G3RX2-A2004
3G3RX-A2007- V1 → 3G3RX2-A2007
3G3RX-A2015- V1 → 3G3RX2-A2015
3G3RX-A2022- V1 → 3G3RX2-A2022
3G3RX-A2037- V1 → 3G3RX2-A2037
3G3RX-A4007- V1 → 3G3RX2-A4007
3G3RX-A4015- V1 → 3G3RX2-A4015
3G3RX-A4022- V1 → 3G3RX2-A4022
3G3RX-A4037- V1 → 3G3RX2-A4037
→
2-φ6
130
24.5
130
150
143
80
6
79164
140
62
241 255
130
2-φ6
241 255
6
150
3
47
140
