Omron RX2 Series User Manual

11 Options
11 - 44
High-function General-purpose Inverter RX2 Series User’s Manual

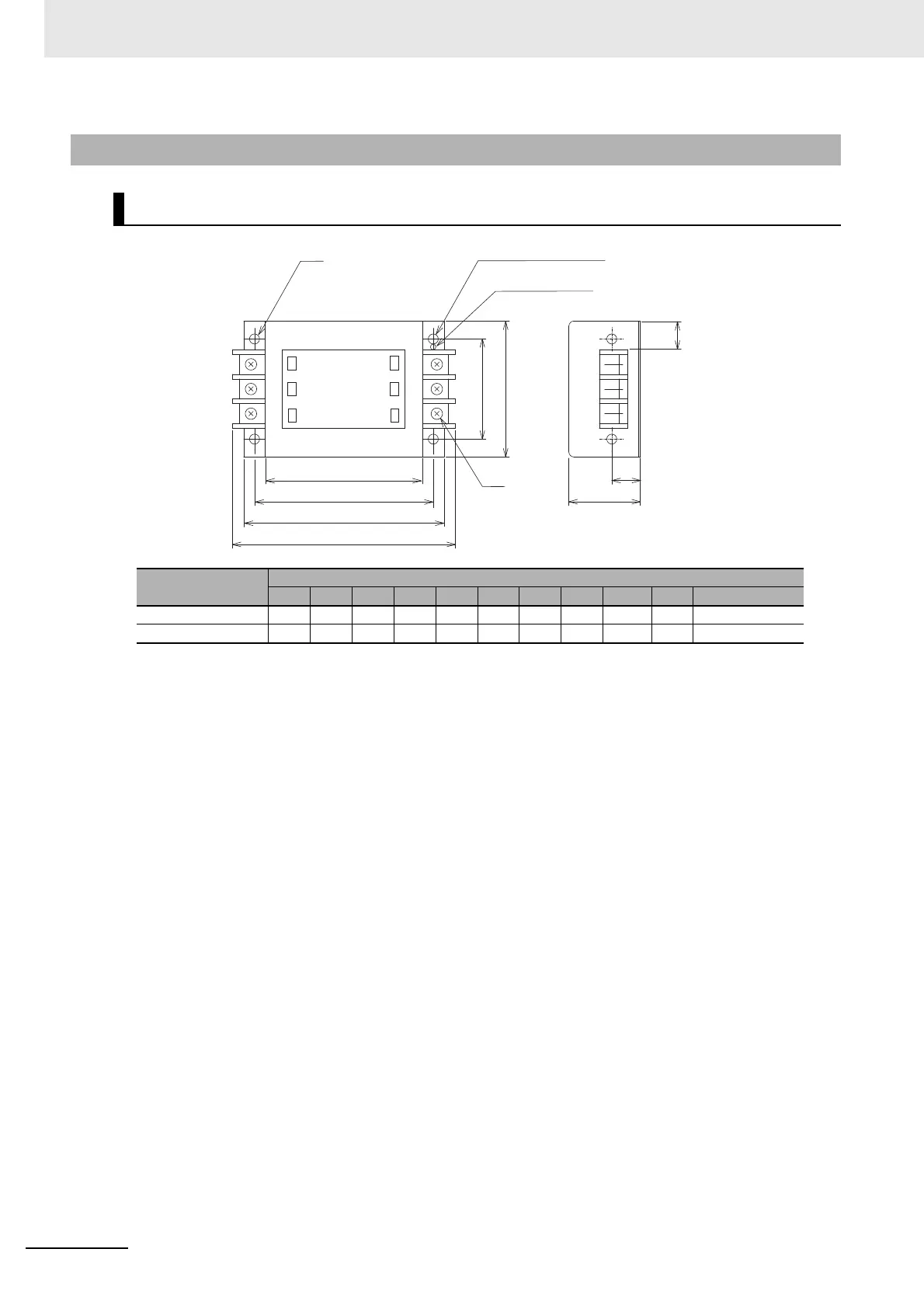

11-8-2 External Dimensions
3G3AX-NFO01/NFO02
Model
Dimensions [mm]
A B C E F G H J M P N
3G3AX-NFO01 140 125 110 70 95 22 50 20 4.5 156 2-R2.25 Length 6
3G3AX-NFO02 160 145 130 80 110 30 70 25 5.5 176 2-R2.75 Length 7
H
F
P
C
B
A
E
J
G
M4
Ground marking
Ground terminal 2-φM
2-N
Nameplate
1
2 3
4
IN
OUT
5
6
