3 Operation
3 - 30
High-function General-purpose Inverter RX2 Series User’s Manual

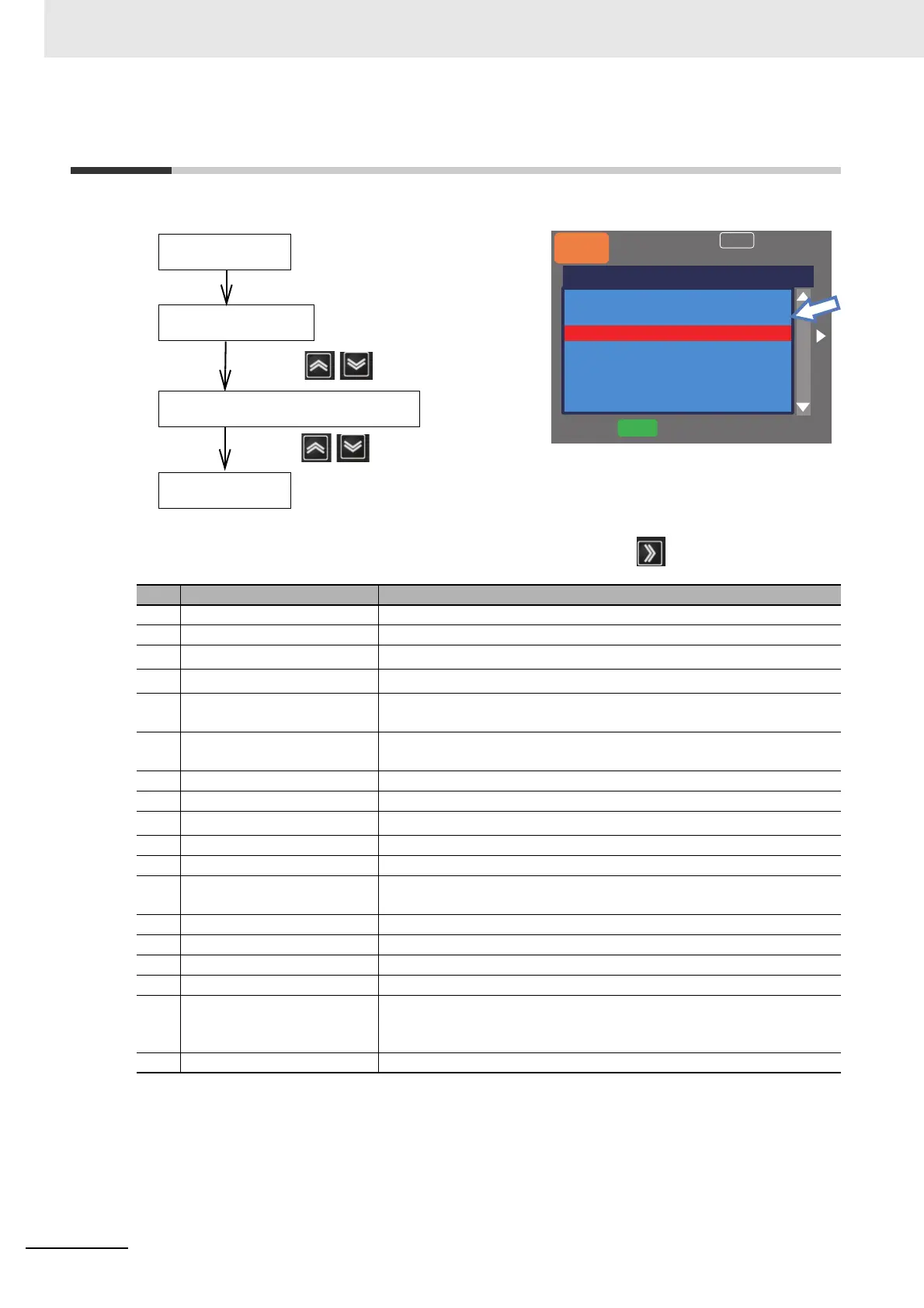

3-6 System Settings
On the System settings screen, you can use extended functions.
On the screen that is displayed upon power-on, press the F1 (1) key to navigate to the menu screen
“M01”. Then, select the R/W function by pressing the Enter key or right (
) key.
No. Name Description
01 Language selection Changes the language setting.
02 Dimming Controls the brightness of LCD operator screen.
03
Automatic light off time
*1
*1. The light off function is disabled until trip is canceled after the occurrence of trip.
Controls the time to automatically light off the screen.
04
Dimming at light off
*1
Controls the brightness when the screen is automatically lit off.
05 Automatic home transition
time
Sets the time to automatically return to the home screen.
06 Initial home screen selection Sets the screen that is displayed upon power-on and automatic return to
the home screen.
07 Read lock Limits the reading of data
08 Blinking during trip Sets whether blinking is performed or not during trip.
09
Date and time
*2
*2. To use the clock function, you need an optional battery that is separately sold. (CR2032, 3V)
If no electricity is supplied to the inverter, battery replacement is required every two years.
Configures settings of time, display format, and battery level warning.
10 Battery level warning Displays a warning message when the battery runs out.
11 Color setting Sets the background color.
12 Basic inverter information
monitor
Checks information of the main unit.
13 Selection of connected model Sets RX2.
14 LCD operator version Displays the version of the LCD operator.
15 Initialization of LCD operator Initializes the LCD operator.
16 Self-check mode Operates self-check mode.
17 Remote mode switching If this setting is enabled, when the F1 key on the home screen is pressed
for 1 second or more, you can switch the frequency command and opera-
tion command to commands issued from the LCD operator.
18 Reserve Do not change the setting from OFF.
Main monitor screen
Menu screen (M01)
F1(1) key
Select by + Enter key.
System setting screen (S01)
Each setting screen
Select by + Enter key.
Menu
Optional
device
46.49Hz
oFW
M1
M01
Menu
01 Scroll mode
02 R/W function
03 System setting
STOP
