3 Operation
High-function General-purpose Inverter RX2 Series User’s Manual
3-2 Parameter Settings
3
3-2-1 Scroll Mode
Scroll menu - Parameter selection screen

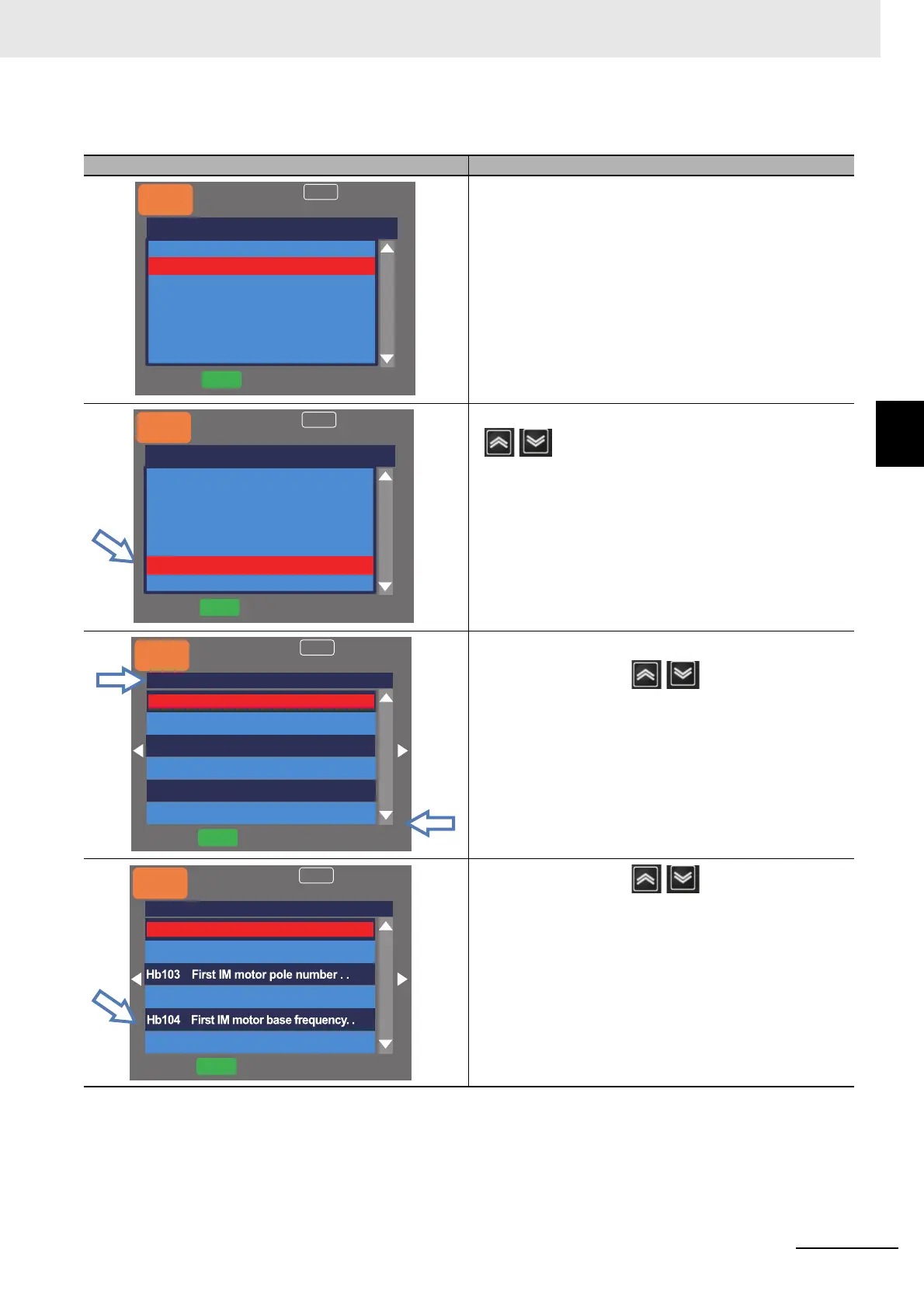

Set-up procedure Action
Choose the scroll mode on the system settings screen (M01)
and press the Enter key to show the scroll menu (L01).
Choose a group you want to browse using the up and down
( ) keys, and then press the Enter key to move to
the parameter list display. For example, select “H: Motor
control”.
Example: In the example shown below, the Hb group, which
is a basic parameter of induction motor, is
checked, and a parameter is changed.
Parameters of “H: Motor control” are displayed.
Using the up and down ( ) keys, you can check
parameters. Pressing the F2(2) key jumps to the top [Hb102]
of the next group of [HA].
(Tips)
You can jump to the top parameter of the sub-group in the
group ([HA], [Hb], etc. in the case of group H) using the
F2(2) key (transition is performed in one direction).
Example of group H: ...->HA->Hb->HC->Hd->HA->...
Using the up and down ( ) keys, you can check
parameters. Choose the parameter to change, and then
press the Enter key.
Example1) [Hb103] The parameter to change the first IM
motor pole number.
Example2) [Hb104] The parameter to change the first IM
motor base frequency.
Back
----
0.00Hz
oFW
M1
L01
Scroll menu
All parameters
d: Monitor
F: Command monitor/setting
A: Operation function
b: Protective function
STOP
Back
----
0.00Hz
oFW
M1
L01
Scroll menu
F: Command monitor/setting
A: Operation function
b: Protective function
C: Terminal, RS485
H: Motor control
STOP
S-Menu
Next group
0.00Hz
oFW
M1
L02
STOP
H: Motor control
00: Disabled
HA-01 Auto-tuning selection
00: RUN key (Operator keypad)
HA-02 In auto-tuning . .
00: Disabled
HA-03 Online-tuning selection
S-Menu
Next group
0.00Hz
oFW
M1
L02
STOP
H: Motor control
5.50kW
Hb102 First IM motor capacity . .
1:4P
60.00Hz
