8-2 Tripless Functions
8
8-2-6 Restart during Power Interruption/Undervoltage

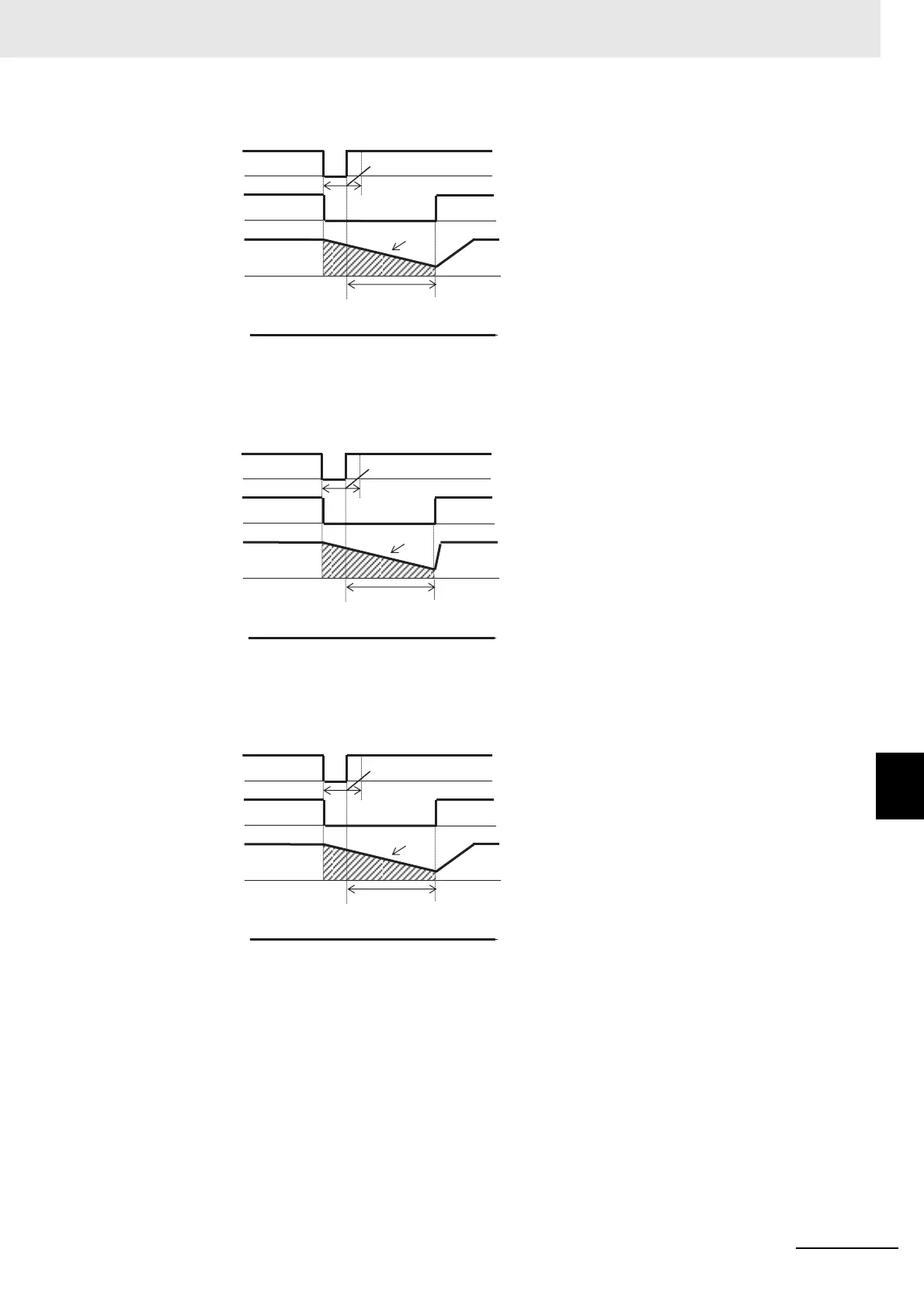

(Ex.3) When [bb-20] ≠00 and [bb-24] = 01, it restarts by picking up the frequency.
Note The motor will trip after instantaneous power failure allowable time.
See 7-5-3 Frequency Matching Start on page 7-65 for details.
(Ex.4) When [bb-20] ≠00 and [bb-24] = 02, it restarts with frequency pull-in.
Note The motor will trip after instantaneous power failure allowable time.
See 7-5-4 Frequency Pull-in Start on page 7-69 for details.
(Ex.5) When [bb-20] ≠00 and [bb-24] = 03, it restarts using the motor speed feedback.
Note The motor will trip after instantaneous power failure allowable time.
For motor speed feedback, the feedback input to the input terminals A and B, or feedback input to the
optional cassette PG option unit is required.
Control Power Supply
Instantaneous power
failure allowable time
Free Running
Motor Speed
Retry Standby
Time
Inverter
Output
Output signal
[AL]
Control Power Supply
Instantaneous power
failure allowable time
Free Running
Motor Speed
Retry Standby
Time
Inverter
Output
Output signal
[AL]
Control Power Supply
Instantaneous power
failure allowable time
Free Running
Motor Speed
Retry Standby
Time
Inverter
Output
Output signal
[AL]
