3 Operation
3 - 6
High-function General-purpose Inverter RX2 Series User’s Manual

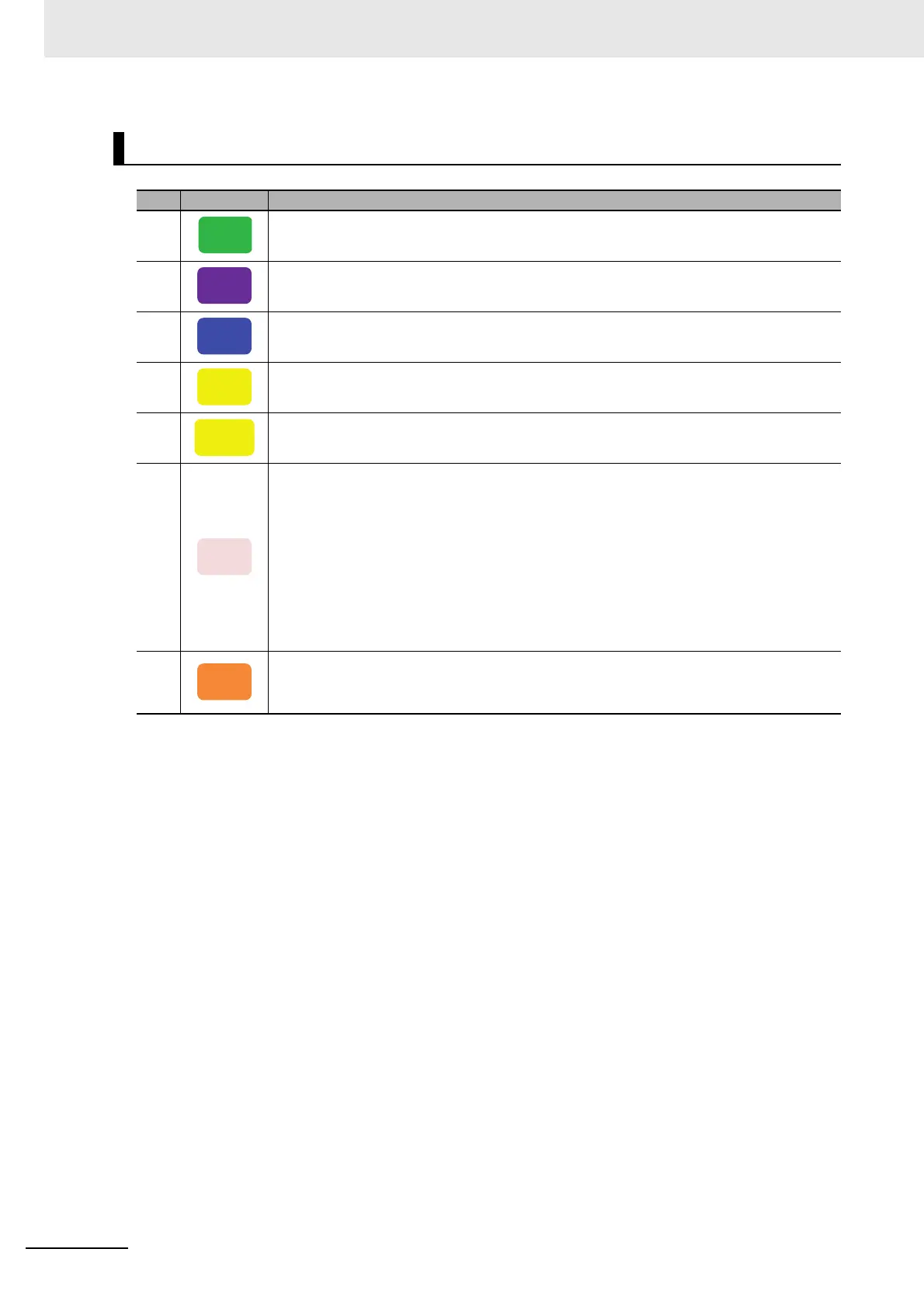

Display (A): Operation Status Display
No. Indication Description
A1 Displayed during normal rotation operation. There is a parameter that cannot be changed
during operation.
A2 Displayed during reverse rotation operation. There is a parameter that cannot be changed
during operation.
A3 Output is in process by 0Hz command. This is also displayed by DB, FOC, and SON func-
tions. There is a parameter that cannot be changed during operation.
A4 Displayed during trip after the occurrence of error. For errors that cannot be canceled, per-
form reset operation to cancel.
A5 Displayed when setting inconsistency occurs. Resolve the inconsistency.
A6 This is displayed when the device is forcibly stopped by a function although an operation
command is issued.
• The operation command is issued with frequency command at 0Hz.
• When the operation command is issued from a source other than the LCD Operator, the
device is stopped by the STOP key on the LCD Operator.
• When the operation command is issued from a source other than the LCD Operator, the
device is stopped by the breaking terminal function [RS], [FRS], etc.
• The device is stopped by the instantaneous power failure non-stop function.
At this time, the RUN lamp blinks.
A7 The operation is suspended due to lack of operation command.
If the operation command is issued from the LCD operator, the operation is stopped when
the breaking function is enabled.
RUN
RV
TRIP
WARN
STOP
STOP
