8 Applied Settings
8 - 84
High-function General-purpose Inverter RX2 Series User’s Manual
 Parameter

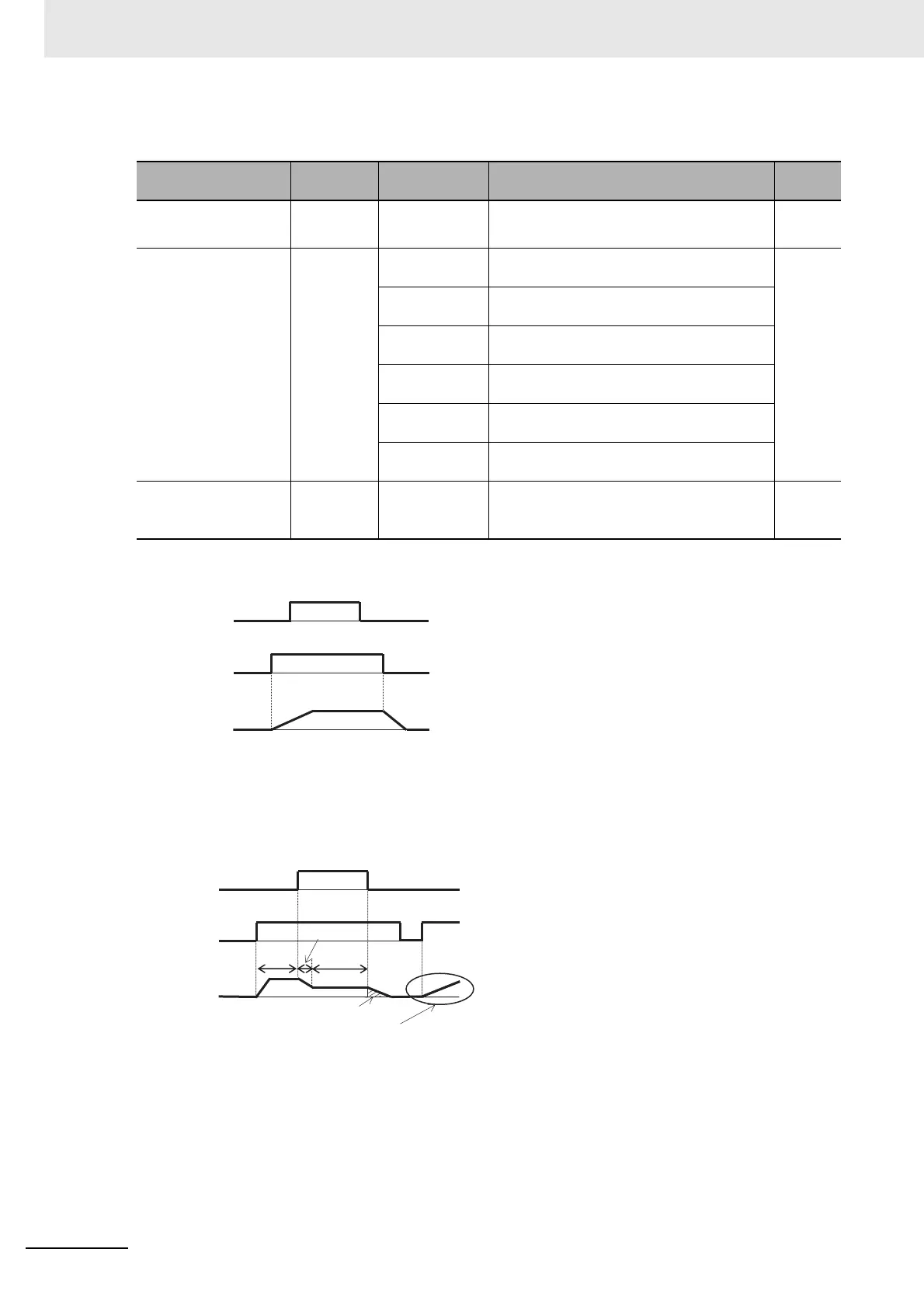

(Ex.1)
When the setting for the jogging selection [AG-21] is 00, 01 or 02, the jogging behavior does not occur
if the [FW] signal is turned on first.
(Ex.2)
When the setting for [AG-21] is 03, 04 or 05, the jogging behavior occurs if the [FW] signal is turned on
first. However, if the [JG] signal is turned off first, the free-running stop occurs.
Item Parameter Data Description
Default
data
Jogging frequency [AG-20]
Lowest
frequency -
10.00 (Hz)
Frequency command at the time of the jog-
ging operation command.
6.00
Jogging stop mode
selection
[AG-21]
00
Invalid while operating Free-running at the
time of the stop.
00
01
Invalid while operating Decelerating stop at
the time of the stop.
02
Invalid while operating DC braking at the
time of the stop.
03
Valid while operating Free-running at the
time of the stop.
04
Valid while operating Decelerating stop at
the time of the stop.
05
Valid while operating DC braking at the time
of the stop.
Input terminal function
[CA-01] to
[CA-11]
029
When the [JG] terminal function is turned on,
the jogging behavior occurs at the time of
operation.
-
Output
frequency
Input signal
[JG]
Input signal
[FW]
Output
frequency
Normal
operation
In deceleration
Jogging operation
Free-running
After the free-running is released, acceleration occurs according to the
settings for restart [bb-40].
Input signal
[JG]
Input signal
[FW]
