8 Applied Settings
8 - 176
High-function General-purpose Inverter RX2 Series User’s Manual

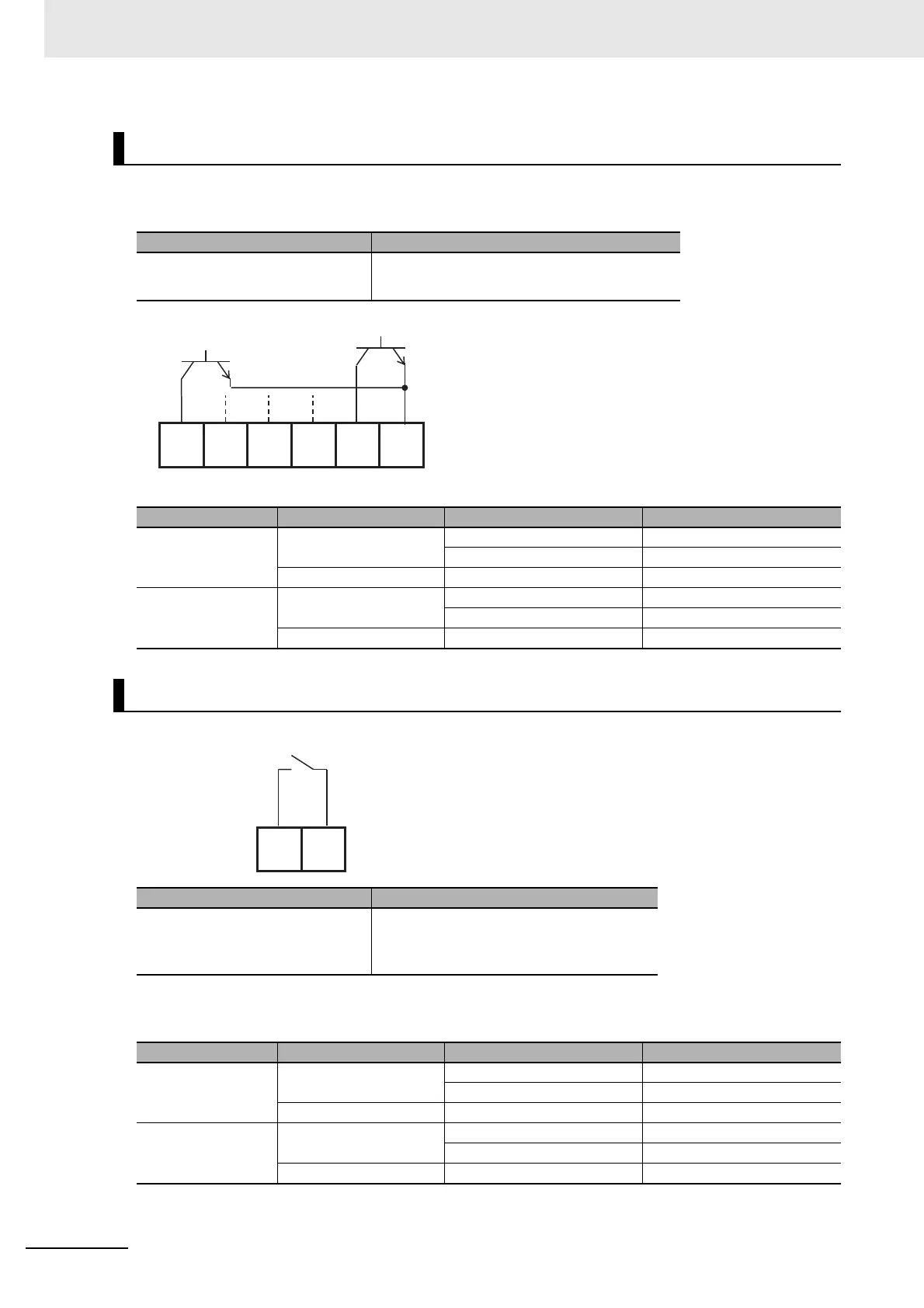

The specifications of Output terminals 11 to 15 are as shown below. The same specifications are
applied.
The open collector output operation is as shown below.
The specifications of Relay 1a output terminals 16A to 16C are as shown below.
The operations of 16A to 16C are as shown below.
Open Collector Output Terminals
Electrical characteristics
Terminals (11 to 15)-CM2
Voltage drop at ON: 4 V or below
Allowable maximum voltage: DC 27 V
Allowable maximum current: 50 mA
[CC-11] to [CC-15] Control power supply Output of inverter function Open collector operation
00
(Contact a)
On
ON Close
OFF Open
Off - -
01
(Contact b)
On
ON Open
OFF Close
Off - -
Relay 1a Output Terminals
Electrical characteristics
16A-16C
Voltage drop at ON: 4 V or below
Allowable maximum voltage: DC 27 V
Allowable maximum current: 50 mA
[CC-16] Control power supply Output of inverter function Relay operation
00
(Contact a)
On
ON Close
OFF Open
Off - Open
01
(Contact b)
On
ON Open
OFF Close
Off - Open
