2 Design
2 - 6
High-function General-purpose Inverter RX2 Series User’s Manual

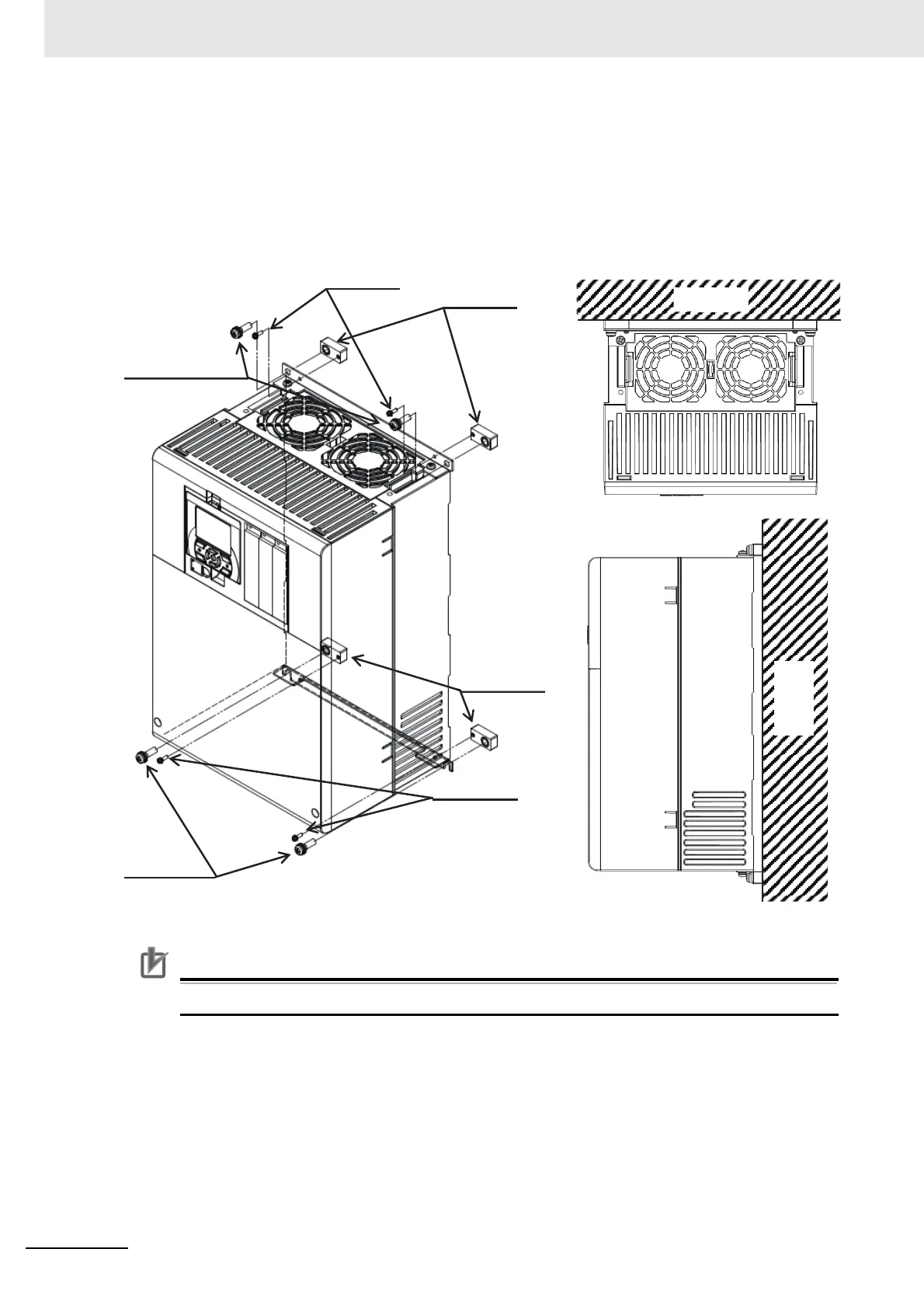

Mounting of 3G3RX2-A2220:
1 Fix the four spacers to the main body at the fittings both on the top and bottom using four M3×8
screws included in the pack (Torque: 0.6 to 0.8 N·m).
2 Fix the main body on the wall with four other screws you provide.
Precautions for Correct Use
Set [Ub-03]=00 for Very Light Duty (VLD)
Step 1
Spacer
Mounting method
Screw M3 × 8
Step 1
Screw M3 × 8
Step 2
Screws you
provide
Wall
Right side view
Step 2
Screws you
provide
Step 1
Spacer
Wall
