High-function General-purpose Inverter RX2 Series User’s Manual

11-2 Regenerative Braking Unit

(Model: 3G3AX-RBU)

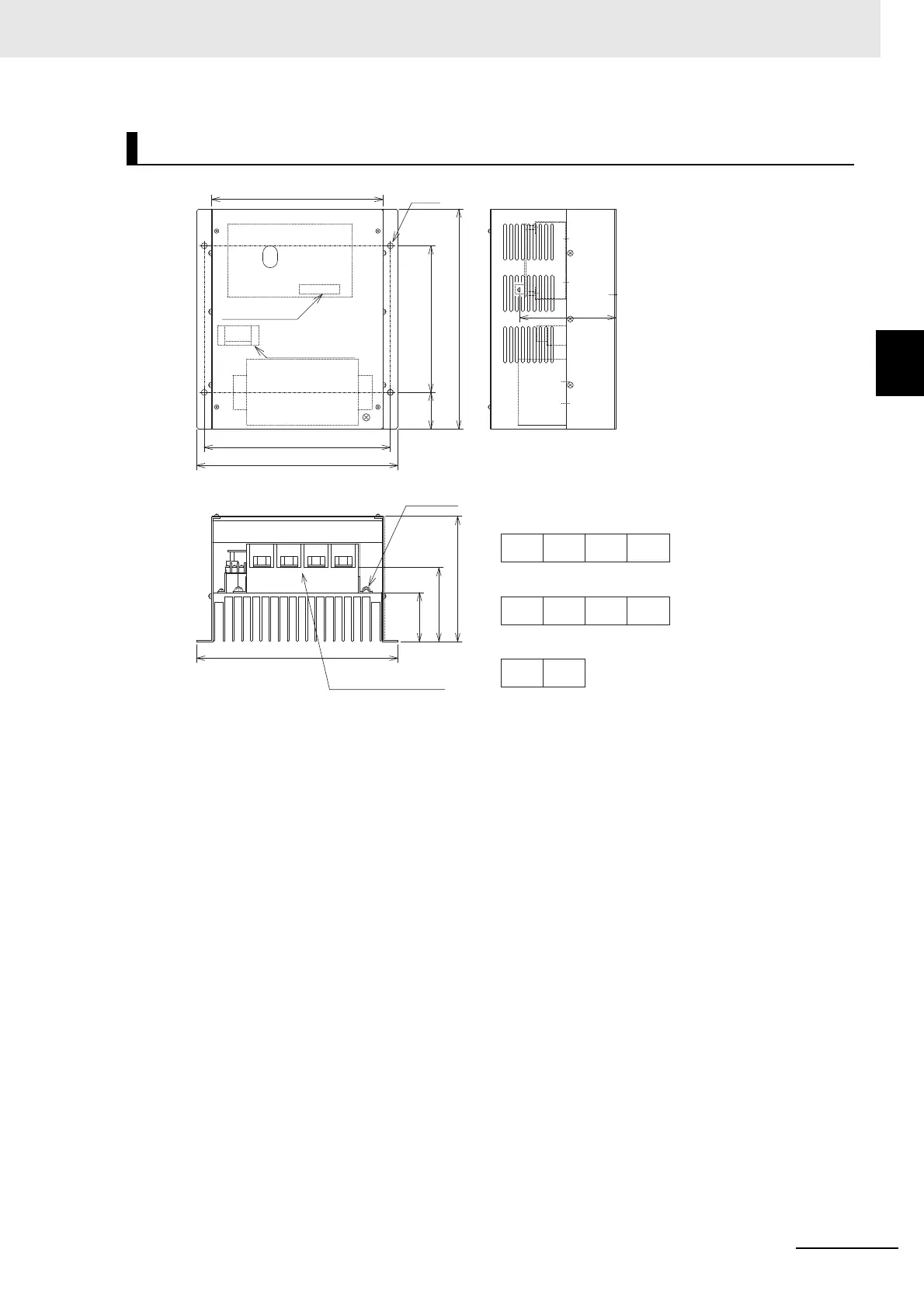

11-2-2 External Dimensions

3G3AX-RBU24

234

20050

101

171

300

254

127

275

4-φ8

Ground

terminal (M5)

NRB

Main circuit terminal

Terminal width 33, M10 screw

Control circuit terminal

Terminal width 6.4, M3 screw

Alarm terminal

Terminal width 7.5, M3 screw

SL1 SL2

MA1

MA2

AL2 AL1
