2-3 Wiring
2
2-3-3 Arrangement and Function of Control Circuit Terminal Block
 STO Terminal
As for the terminal function, see section 2-3-9 Wiring for STO Function on page 2-73.
Terminal symbol Terminal name
P24S 24V output power terminal
CMS Common terminal for STO terminal
STC Logic switching terminal
ST1 STO input 1
ST2 STO input 2
ED+ Monitoring output terminal
ED- Monitoring output common
ED-ED+
STCST2 ST1
P24S STC CMS

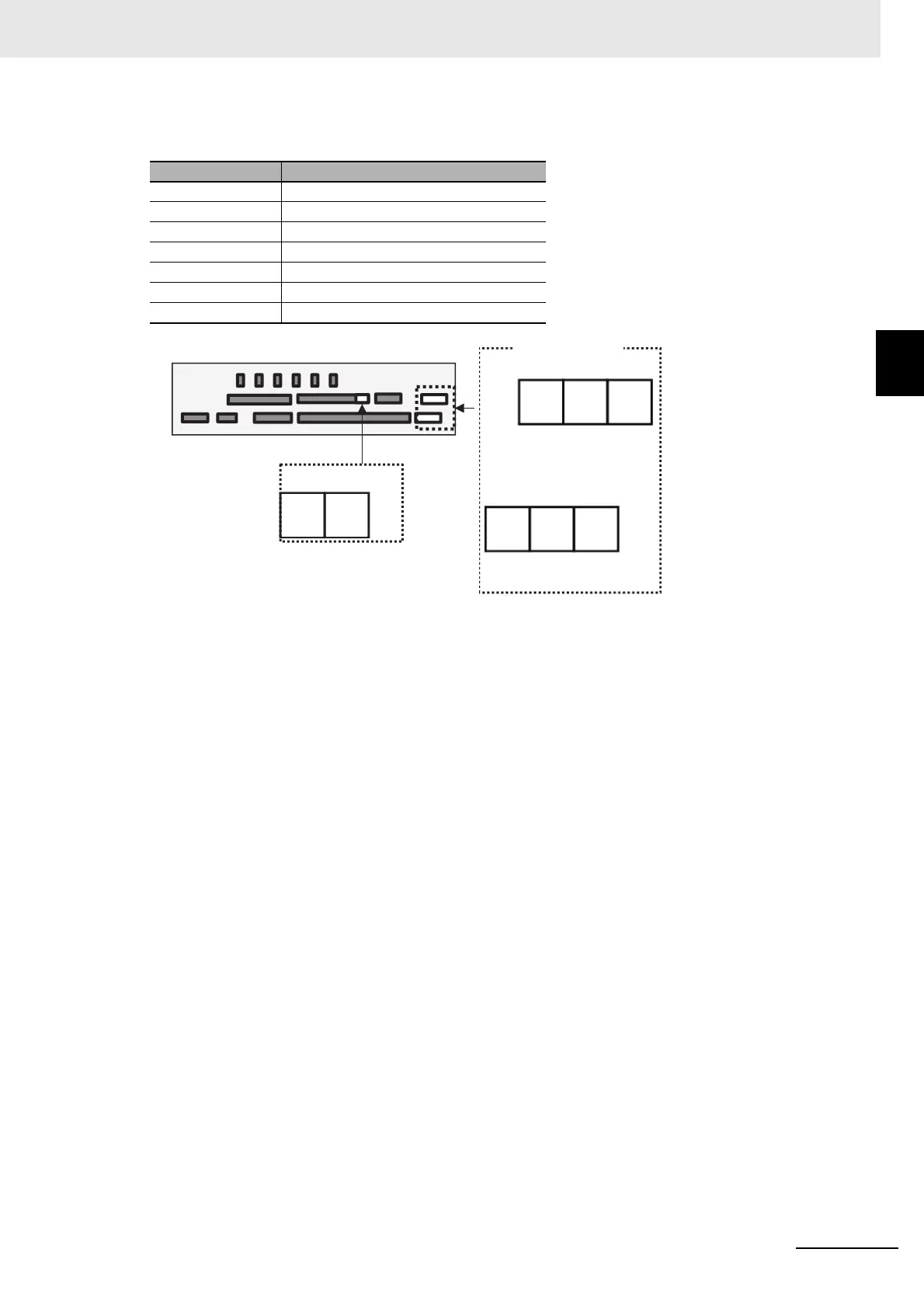

Control circuit terminal area
EDM output
STO input
