2 - 41
2 Design
High-function General-purpose Inverter RX2 Series User’s Manual
2-3 Wiring
2

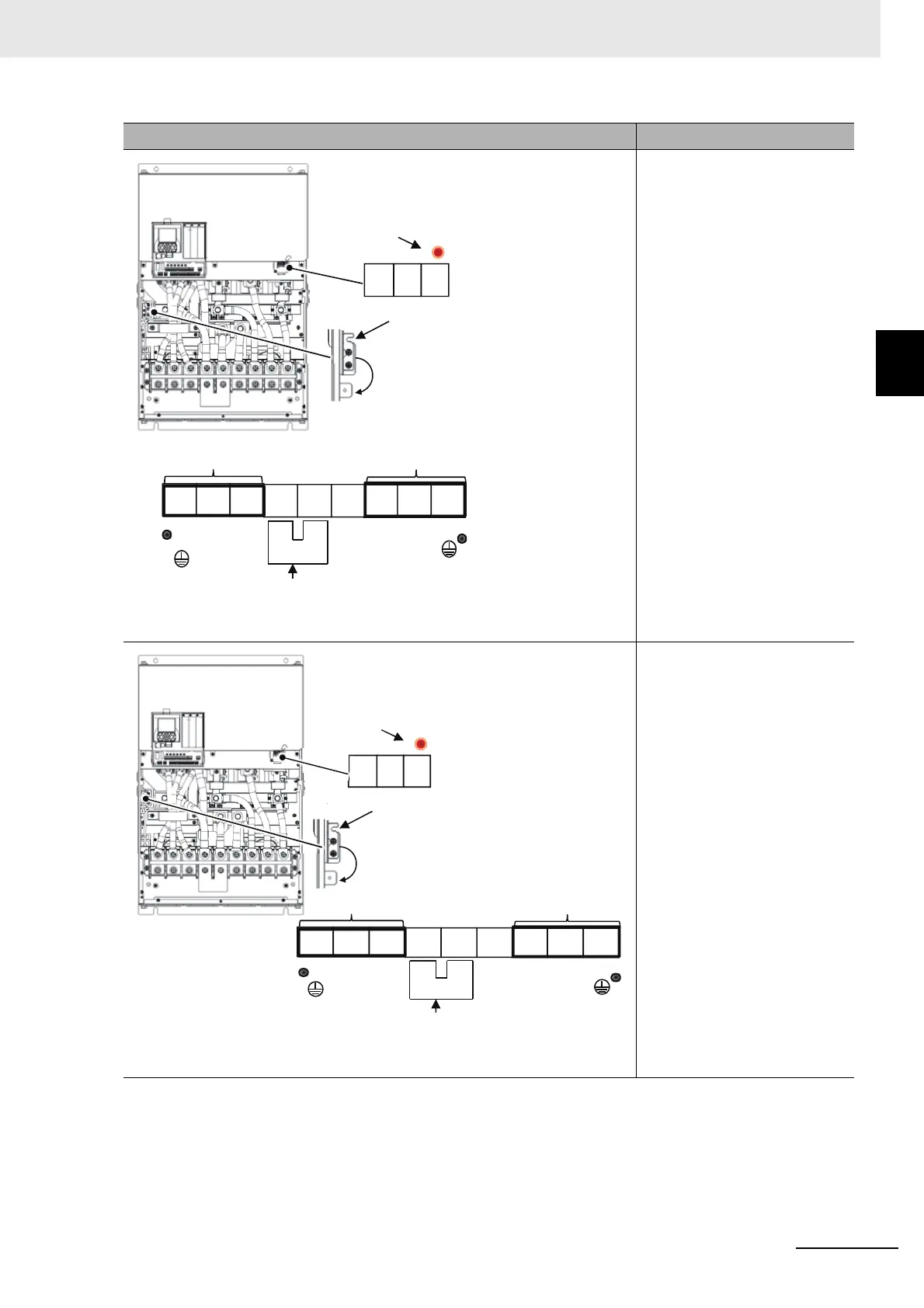

2-3-4 Wiring for Main Circuit Terminals
* For the switching method of EMC filter, refer to the description on the bottom of
the table.
3G3RX2-B411K
R0,T0 : M4
Earth terminal: M8
Others : M10
* For the switching method of EMC filter, refer to the description on the bottom of
the table.
3G3RX2-B413K
R0,T0 : M4
Earth terminal: M8
Others: M10
Arrangement of Terminals Model
R
(L1)
S
(L2)
T
(L3)
U
(T1)
V
(T2)
W
(T3)
PD
(+1)
P
(+)
N
(-)
G
G
R0 T0
Short circuit
connector for
EMC filter
Disable
Charge lamp
(Light when electricity
turned on)
Enable
Power supply input wire Motor output wire
PD-P short bar
R0 T0
R
(L1)
S
(L2)
T
(L3)
U
(T1)
V
(T2)
W
(T3)
PD
(+1)
P
(+)
N
(-)
G
G
Short circuit
connector for
EMC filter
Disable
Charge lamp
(Light when electricity
turned on)
Enable
Power supply input wire
Motor output wire
PD-P short bar
