If you have a 1204-32 Grandmaster PTP option card installed, you will need
to follow separate instructions to configure that PTP functionality. See
"PTP Grandmaster [1204-32]" on page462
Precision Time Protocol (PTP) is a time protocol that can be used to synchronize com-
puters on an Ethernet network. SecureSync supports PTP Version1 and2, as specified in
the IEEE 1588-2002 and IEEE 1588-2008 standard, via two (2) Ethernet ports.
SecureSync can be configured as a PTP Master Clock or as a PTP Slave Clock.
Next to PTP specifications, this topic describes the PTP menu items and settings, and out-
lines how to set up SecureSync as a PTP Master or Slave.
PTP Specifications
Inputs/Outputs: (2) Ports
Signal Type: Ethernet
Management: Web UI
Network Speeds: 100 Mb/s, 1Gb/s, or 10Gb/s
PTP Version supported:PTP1 IEEE (1588-2002) and 2 (IEEE 1588-2008)
PTP Profiles supported: Default, Telecom, Enterprise
Transmission modes: Unicast, Multicast (IPv4 and Ethernet), and Hybrid [default]
Timestamping: SecureSync has PTP time stamp functionality which is set to use
the UTC timescale.
2.16.1 The PTP Screen
The PTP screen provides PTP status information, and provides access to all configurable
PTP settings.
To access the PTP screen, navigate to MANAGEMENT > NETWORK: PTP Setup. The
PTP screen will open:

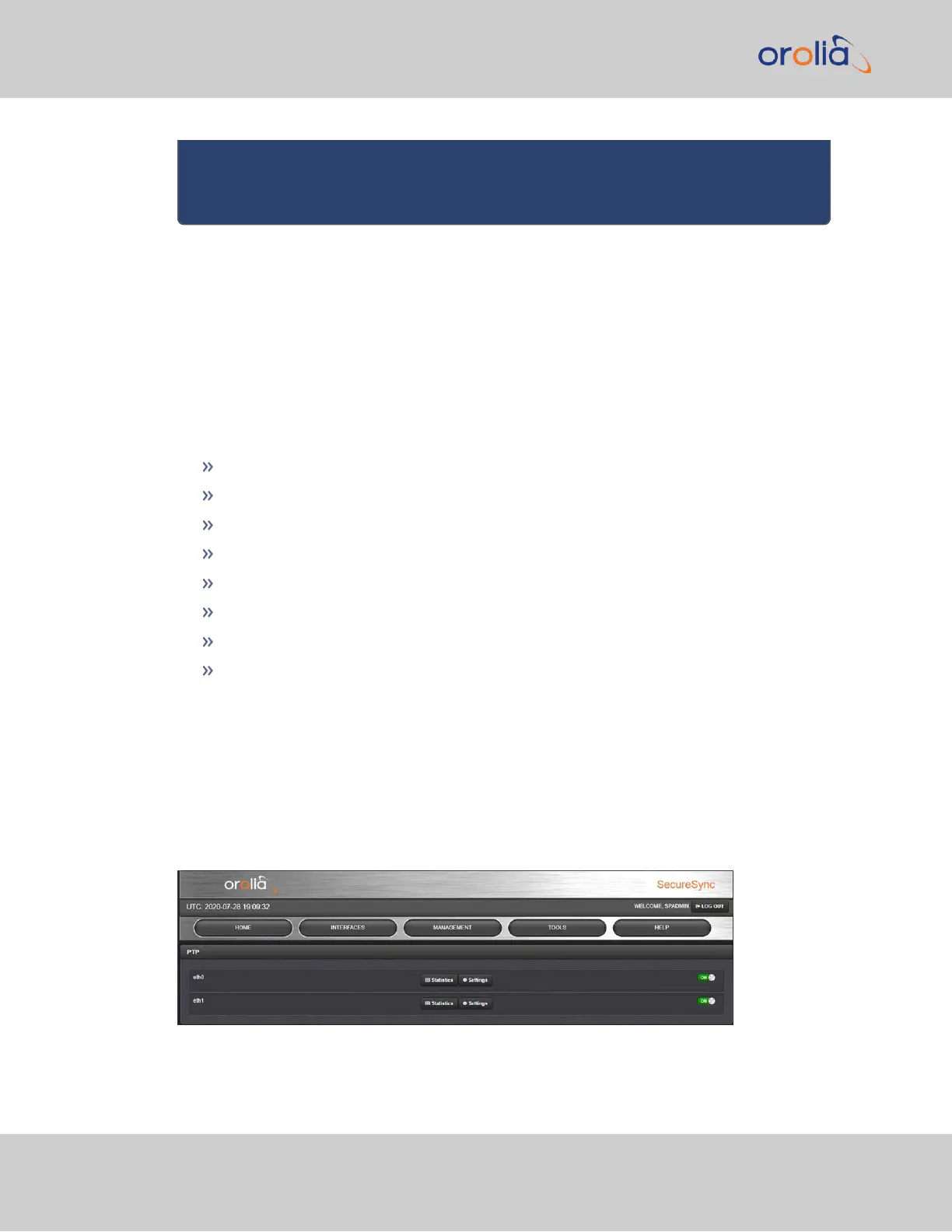

Figure 2-6: PTP setup screen
130
CHAPTER 2 • SecureSync 2400 User Manual Rev. 2
2.16 Configuring PTP
