Orolia SecureSync 2400 User Manual

STANAG 4430 Extended HAVE QUICK
STANAG 4430 Standard Time Message (STM)
ICD-GPS-060A BCD Time Code
ICD-GPS-060A HAVE QUICK
DOD-STD-1399 BCD Time Code
Accuracy: 100ns
Maximum Number of Cards: 6
Ordering Information: 1204-1D (for non-isolated board); 1204-24 (for isolated
board)

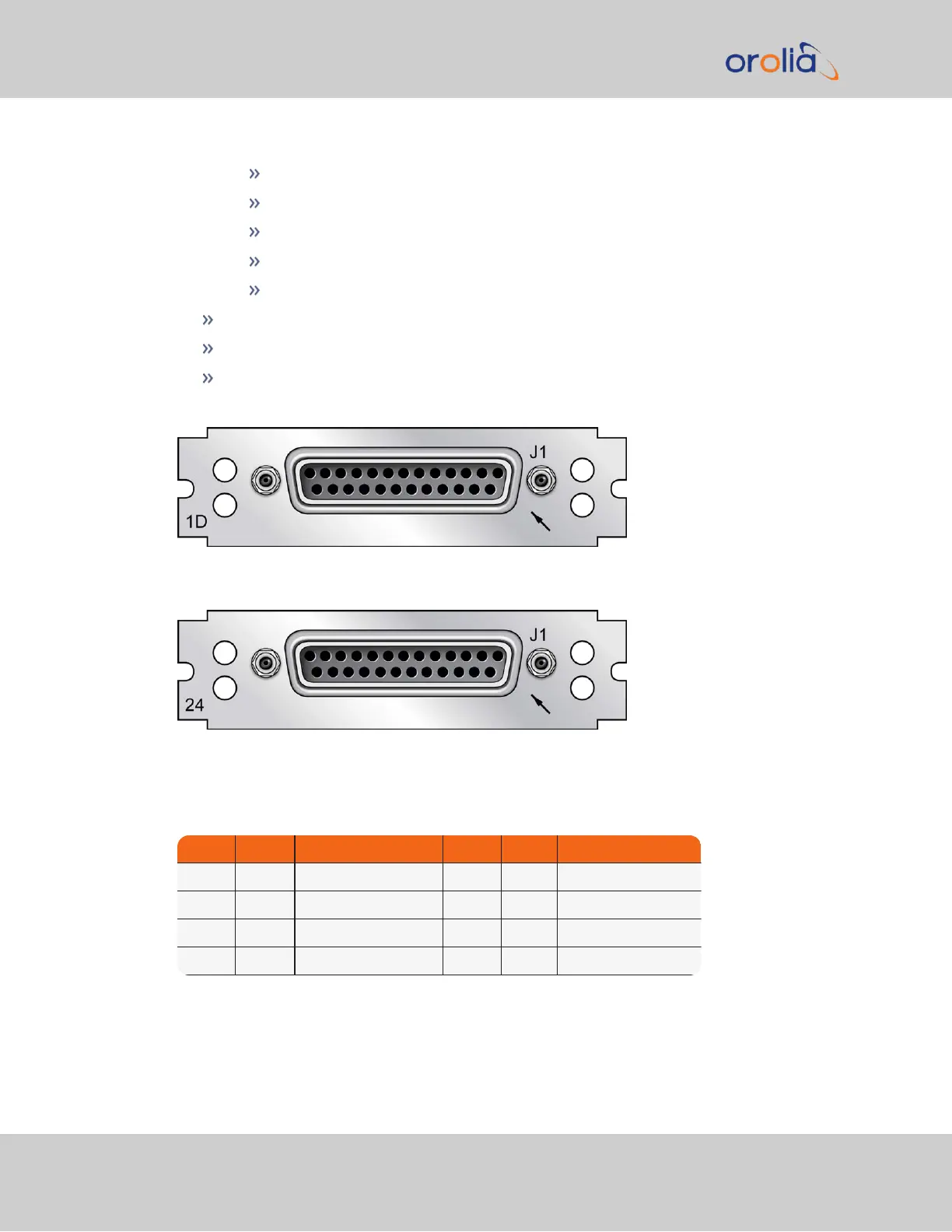

Figure 5-40: Model 1204-1D option card rear plate
Figure 5-41: Model 1204-24 option card rear plate
Pin Assignments
Pin No. Signal Function Pin No. Signal Function
1 GND Ground 14 TOD1- TOD1 RS-485- Input
2 TOD1+ TOD1 RS-485+ Input 15 NC -
3 NC - 16 NC -
4 TOD2+ TOD2 RS-485+ Input 17 TOD2- TOD2 RS-485- Input
