The Status window displays the following settings:
Alarm Type:
None: Will not output for an alarm.
Minor: Will output on a minor alarm.
Major: Will output on a major alarm.

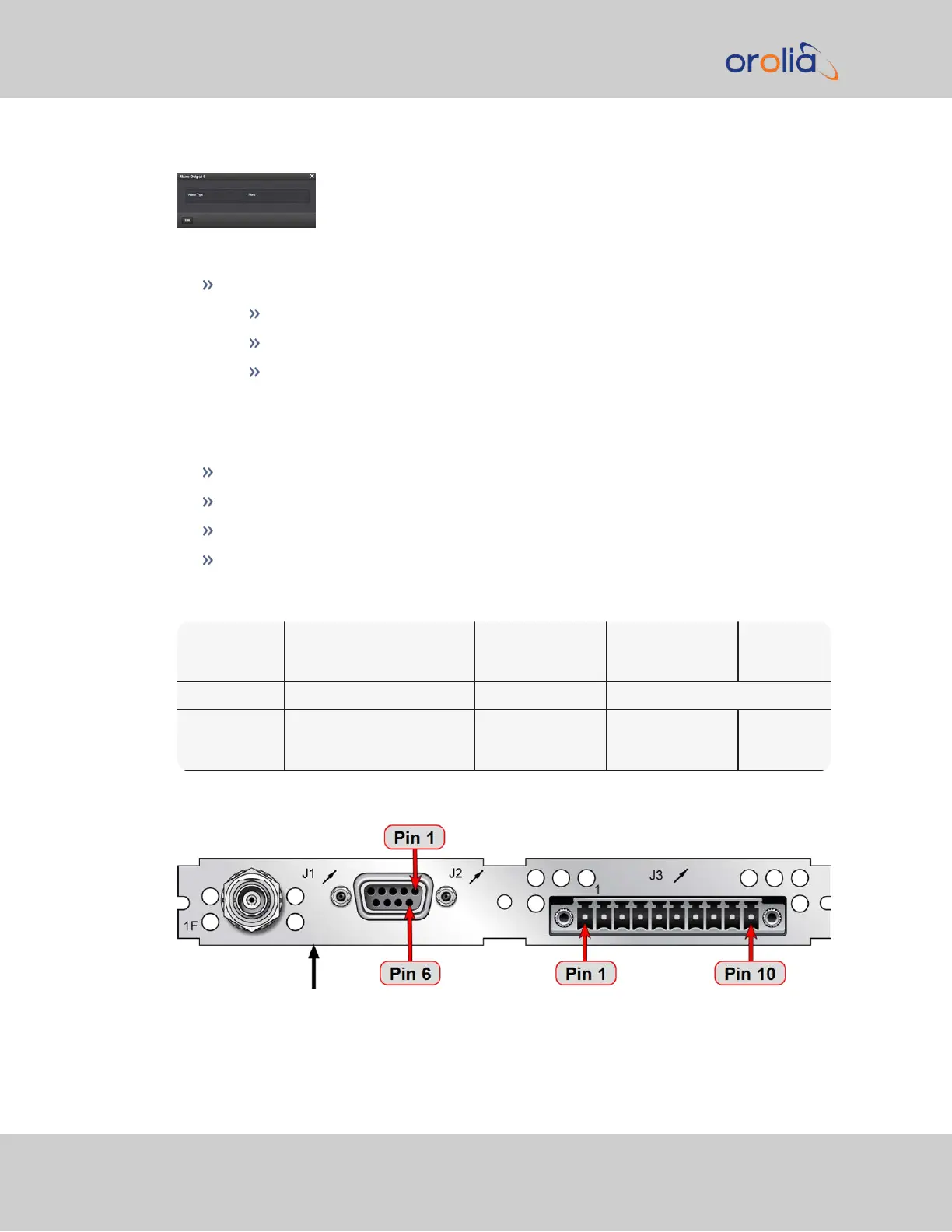

5.2.7.3 NENA-Compliant Option Card [-1F]
IRIG support (including support for all NENA formats)
ASCII RS-232 time code support
ASCII RS-485 time code
relay/alarms.
NENA-Compliant Module: Specifications
Outputs:
(1) IRIG B/E, IEEE
1344/C37.118-2005
(AM/TTL)
(1) ASCII RS-232 (1) ASCII RS-485 (2)
Relay/Alarm
Connectors:
BNC (J1) DB9F (J2) 3.81mm Terminal block (J3)
Accuracy:
±20 to ±200μs of UTC,
format-dependent
±100-1000μs
(format-depend-
ent)
±100-1000μs
(format-depend-
ent)
Switch time
4ms, max.
Table 5-23:
NENA module specifications
492 SecureSync 2400 User Manual
APPENDIX
