4.5.1.5 Ethernet Monitoring
To monitor Ethernet status and traffic:
1.

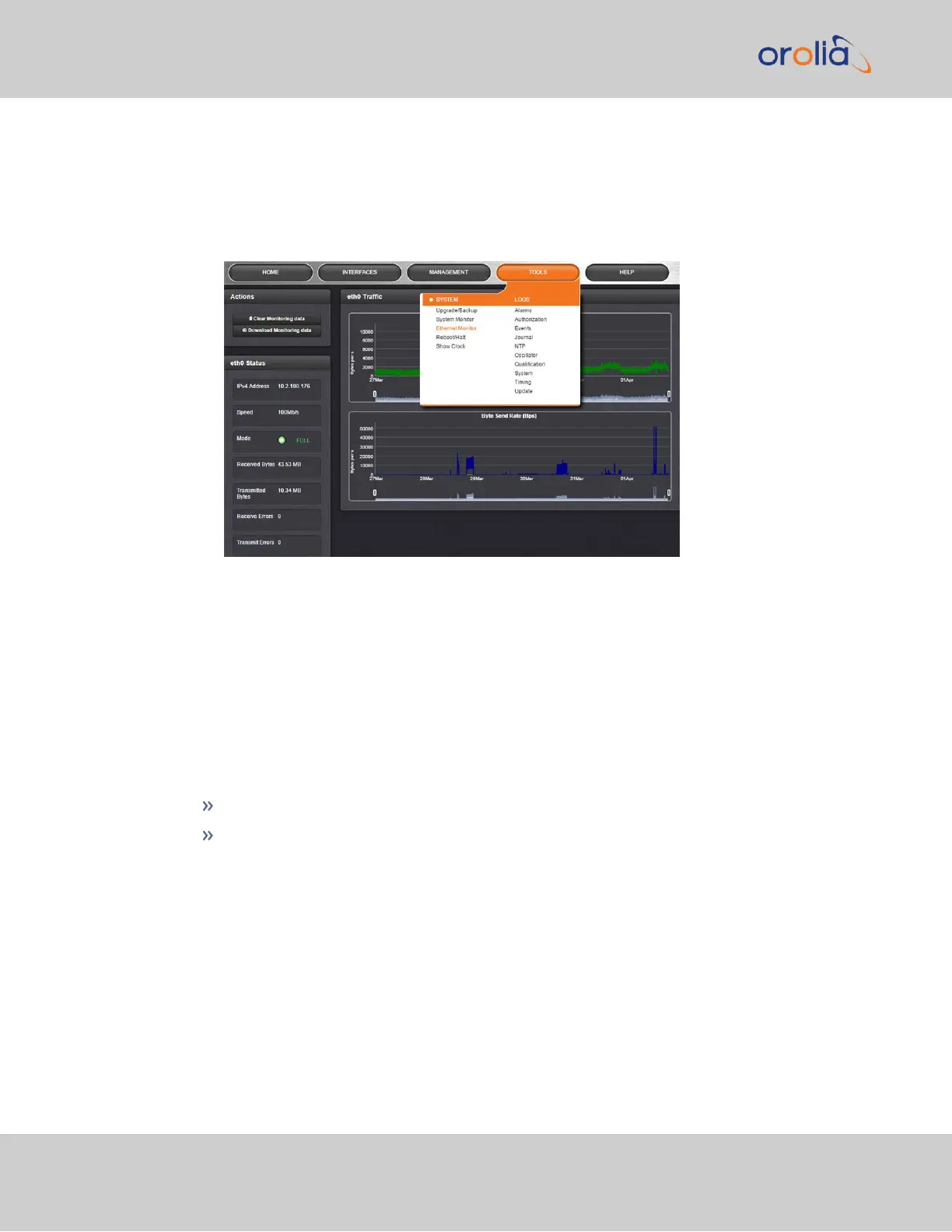

Navigate to TOOLS > SYSTEM: Ethernet Monitor. The Ethernet monitoring
screen opens:
The data displayed is linked to a specific Ethernet port e.g., ETH0. If you enable additional
Ethernet ports, their throughput data will also be displayed.
In the Traffic pane on the right the traffic throughput in Bytes per second is displayed in
two graphs. Drag the handles at the bottom of the graphs to zoom in on a particular time
frame.
In the Actions panel on the left, you can clear or download monitoring data.
In the Status panel on the left, information pertaining to the given Ethernet port is dis-
played, including throughput statistics and error statistics. The Mode field indicates which
transmission mode is being used for the given Ethernet port:
FULL duplex, or
HALF duplex.
Note that the Mode is auto-negotiated by SecureSync. It can be changed only via the
switch SecureSync is connected to, not by using the SecureSync WebUI.
4.5.1.6 Outputs Status Monitoring
Per standard configuration, SecureSync is equipped with one 1PPS and one 10 MHz out-
put. Additional outputs can be added by means of output option cards.
Outputs can be monitored in real time via the INTERFACES drop-down menu. The menu
will populate dynamically, depending on which outputs are installed.
286
CHAPTER 4 SecureSync 2400 User Manual Rev. 2
4.5 Quality Management
