For each Ethernet port (eth1-eth2) you can toggle PTP functionality ON or OFF.
You can also access the "Settings" panel and the "Statistics" panel for each port (see
below).
2.16.1.1 The PTP Settings Panel
The Settings Panel provides access to the configuration settings, divided into three tabs,
which are described below. Each tab allows you to Restore defaults.
Note: The Restore Defaults button in each PTP Settings panel will restore
ALL the factory defaults for ALL Ethernet ports.
Settings changed by the user will be maintained when the PTPdaemon is stopped and star-
ted, and between reboots and power cycles.

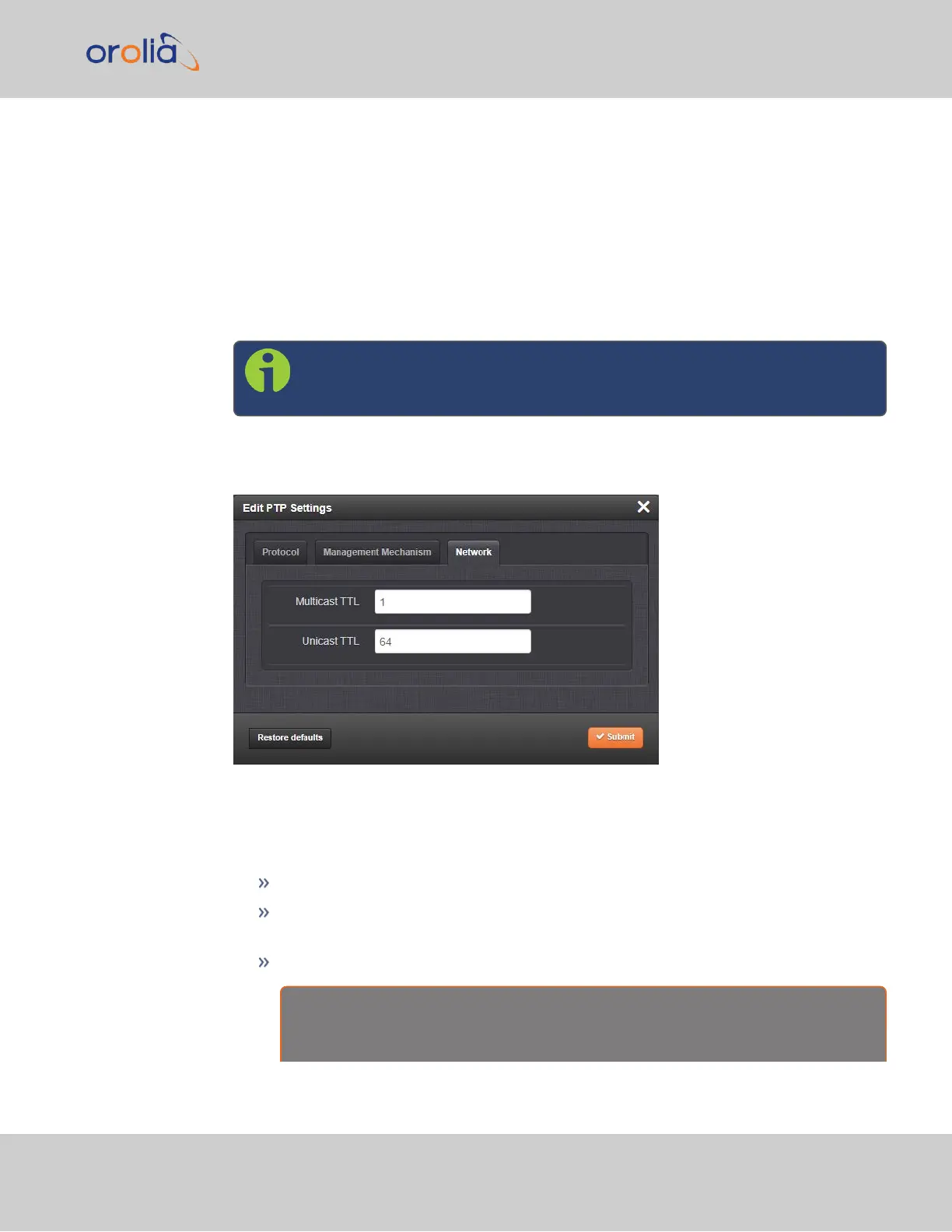

Figure 2-7: Edit PTP Settings panel
Protocol tab
PTP version: [1, 2] Select Version 1 or Version 2.
Domain: [1 through 127] Sets the current PTP Domain Number, as defined in IEEE
Std 1588-2008 Section 7.1
Communication Mode: Select multicast, hybrid, or unicast mode.
A b o u t … P T P T r a n s m i s s i o n M o d e s
The PTP Card is able to transmit the PTP packets in three transmission modes:
2.16 Configuring PTP
CHAPTER 2 • SecureSync 2400 User Manual Rev. 2
131
