Orolia SecureSync 2400 User Manual

"FAST": blinking interval @ 2Hz
"SLOW HEARTBEAT": sinus-shaped interval @ 1Hz

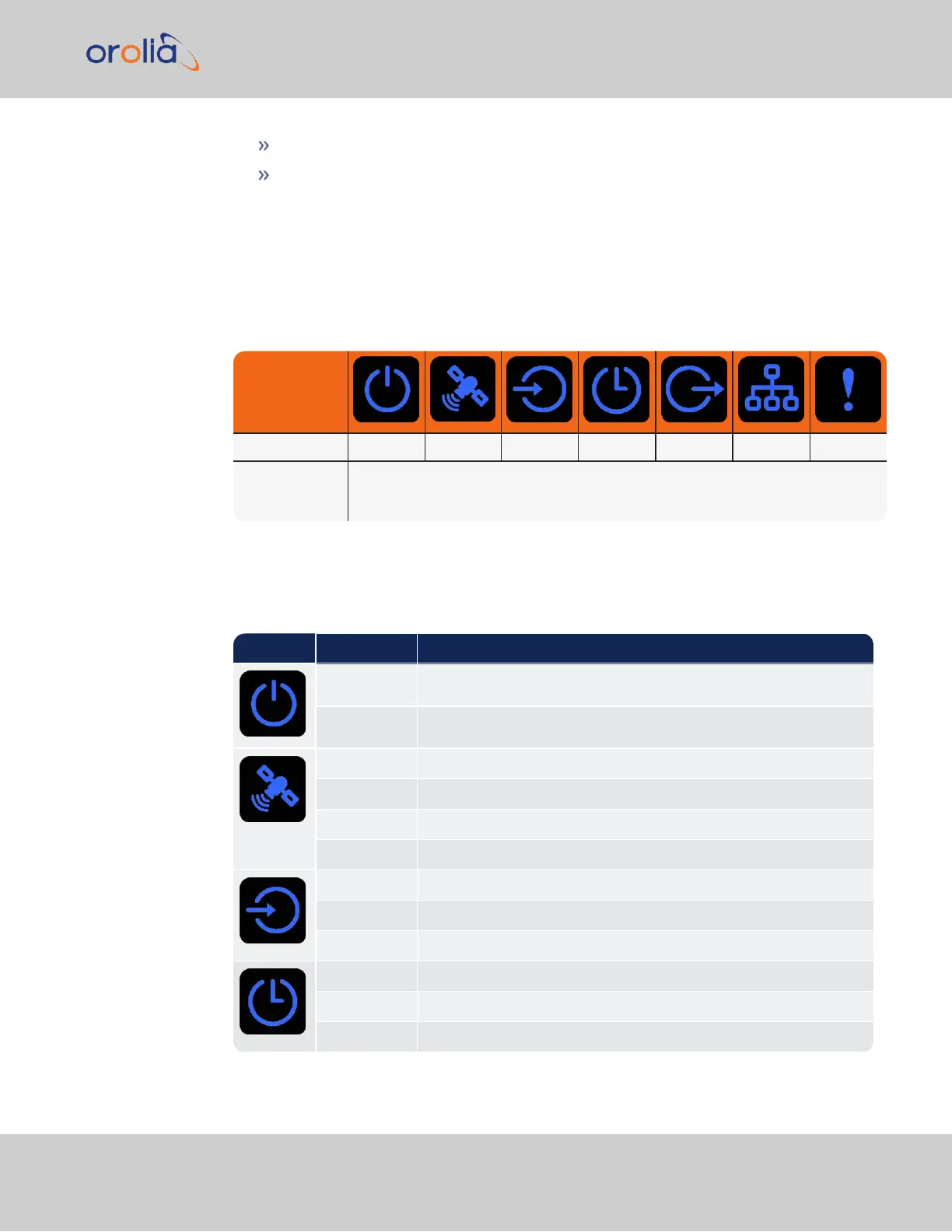

1.3.1.2 LED Lighting Patterns
The table below indicates LED status light patterns for common SecureSync operating
statuses.
Table 1-1:
Common light patterns
Start-up ON OFF OFF OFF OFF OFF OFF
Software
upgrade/re-
boot
HEARTBEAT PATTERN INORDER,
BECOMINGSOLIDLEFTTORIGHTTOREPRESENTPROGRESS
1.3.1.3 Legend, individual LEDs
Table 1-2:
Legend for Status LEDs
Icon Light Meaning
OFF No power
ON Powered
OFF No GNSS reception (0 satellites)
HEARTBEAT GNSS acquisition in process (≥ 1satellite(s), or 1PPS OK, or Time OK
FAST Antenna short circuit
ON GNSS is available as reference (1PPS and Time OK)
OFF No valid references
FAST Using non-primary reference
ON Using primary reference
OFF Unit is in Holdover (valid)
ON In Sync (valid)
FAST Not In Sync (Holdover period exceeded, or oscillator damaged)
1.3 SecureSync Front Panel
CHAPTER 1 • SecureSync 2400 User Manual Rev. 2
5
