Message: The 1PPS on time point is extracted from the ASCII message
received.
1PPS Pin: The origin of the 1PPS on-time-point is the 1PPS input connector.
Baud Rate: Determines the speed at which the input port will operate.
Data Bits: Defines the number of Data Bits for the input output.
Parity: Configures the parity checking of the input port.
Stop Bits: Defines the number of Stop Bits for the input port.
2.19.4 Configure a HaveQuick Input
A HaveQuick Input is available by default configuration through the Multi-I/O connector
(see "Configurable Connectors" on page136).

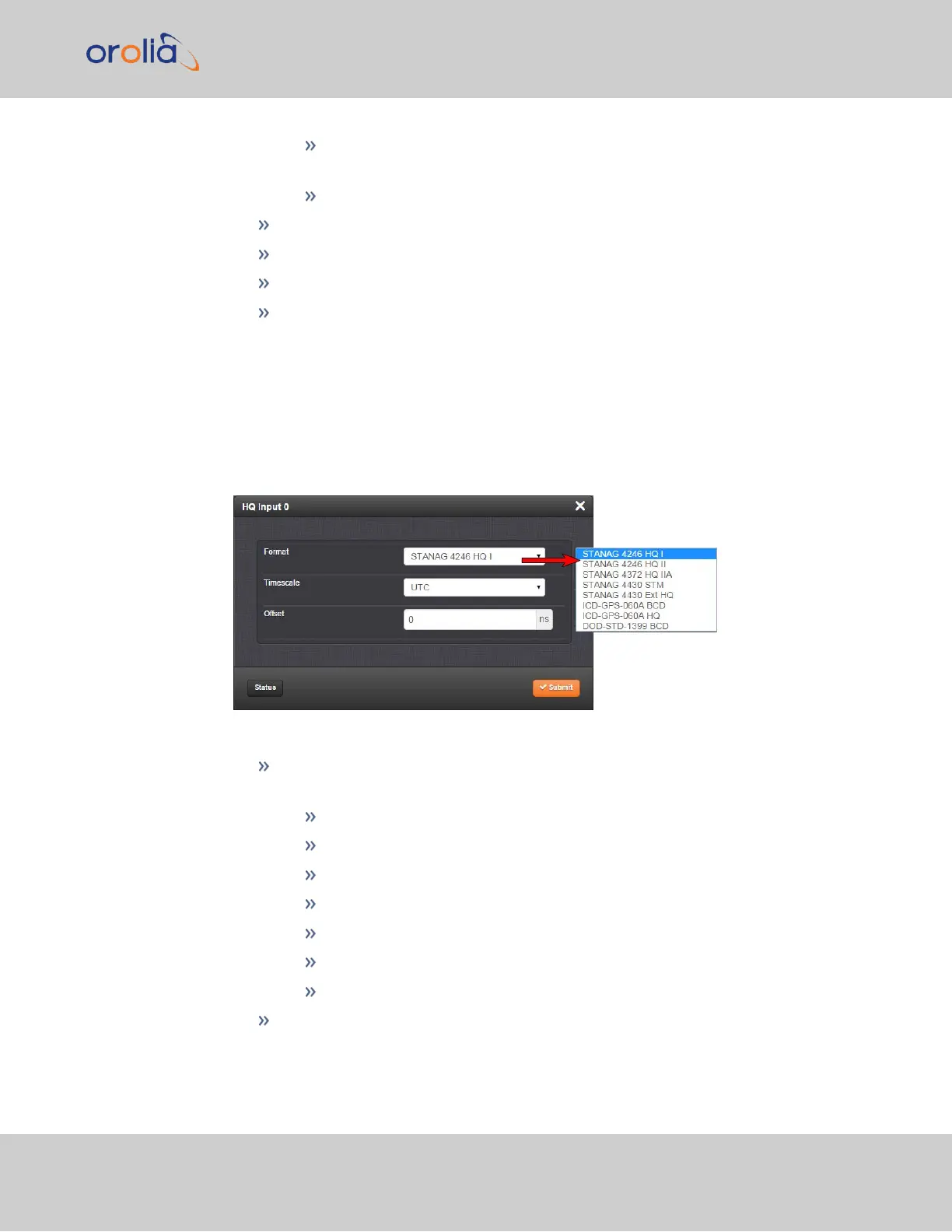

To configure the settings of the HAVE QUICK Input (also referred to as ‘Reference’), go
to its Edit window.
The Edit window allows the configuration of the following settings:
Format: Used to configure the formatting of the four available HAVE QUICK out-
puts. The available output formats are as follows:
STANAG 4246 HQ I
STANAG 4246 HQ II
STANAG 4430 STM
STANAG 4430 Ext HQ
ICD-GPS-060A BCD
ICD-GPS-060A HQ
DOD-STD-1399 BCD
Timescale: Used to select the time base for the incoming time code data. The
entered Timescale is used by the system to convert the time in the incoming data
stream to UTC time for use by the System Time. The available choices are:
2.19 Configuring Input References
CHAPTER 2 • SecureSync 2400 User Manual Rev. 2
145
