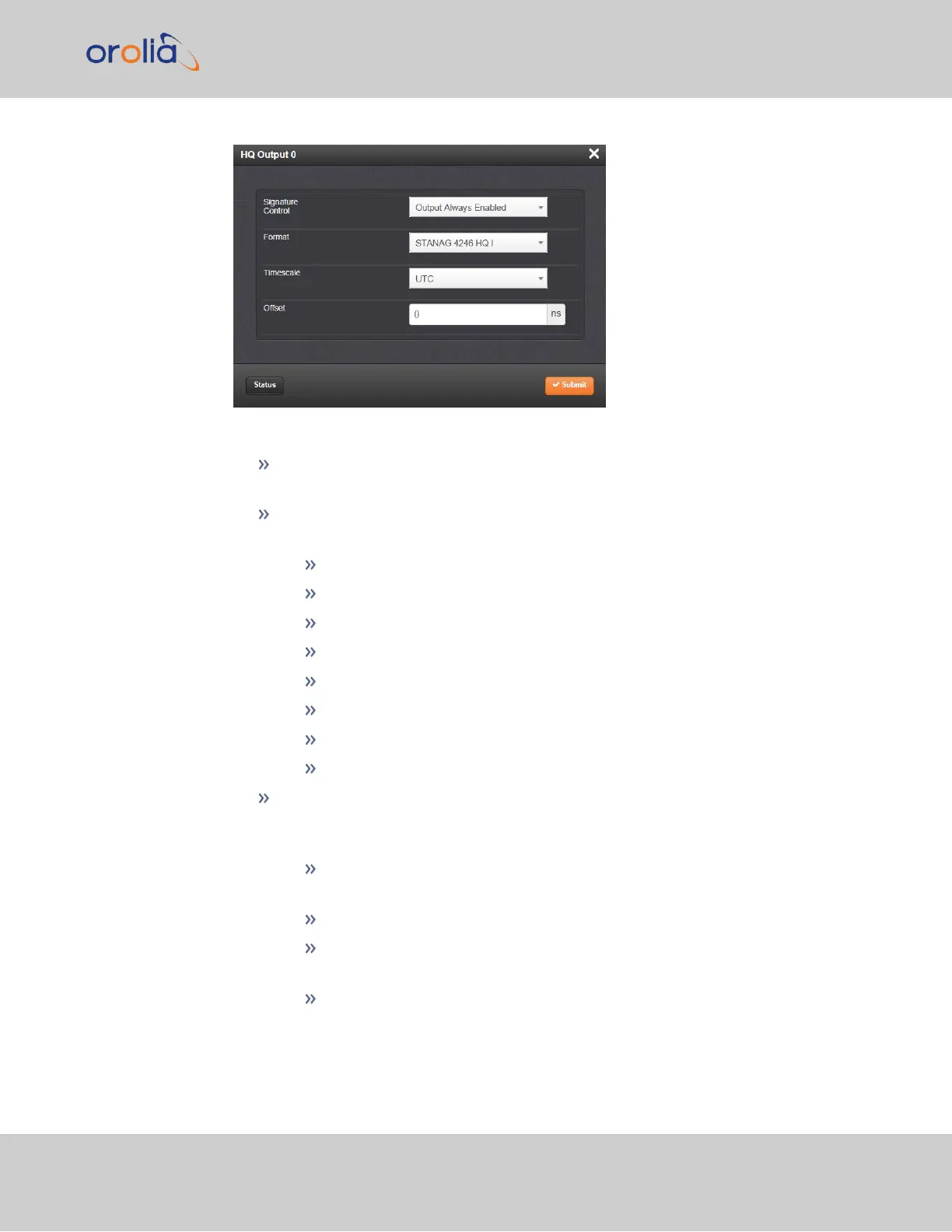

The Edit window allows the configuration of the following settings:
Signature Control: Signature Control is used to control when the HAVE QUICK
modulation is present, see "Signature Control" on page161.
Format: Used to configure the formatting of the four available HAVE QUICK out-
puts. The available output formats are as follows:
STANAG 4246 HQ I
STANAG 4246 HQ II
STANAG 4372 HQ IIA
STANAG 4430 Ext HQ (Extended HAVE QUICK)
STANAG 4430 STM (Standard Time Message)
ICD-GPS-060A BCD
ICD-GPS-060A HQ
DOD-STD-1399 BCD
Timescale: Used to select the time base for the incoming time code data. The
entered Timescale is used by the system to convert the time in the incoming data
stream to UTC time for use by the System Time. The available choices are:
UTC: Coordinated Universal Time ("temps universel coordonné"), also
referred to as ZULU time
TAI: Temps Atomique International
GPS: The raw GPS time as transmitted by the GNSS satellites (as of 15-Febru-
ary-2021, this is 18 seconds ahead of UTC time).
A local clock set up through the Time Management Page: This option will
appear under the name of the local clock you have set up. Refer to "The Time
Management Screen" on page166 for more information on how to configure
2.20 Configuring Outputs
CHAPTER 2 • SecureSync 2400 User Manual Rev. 2
