Note: Should you select more than 3+QZSS constellations,
you will receive a Constellation Error once you click Submit
(ConstError).
About QZSS
QZSS is disabled by default. In order to receive QZSS signals, you must either be located in
the Japan region, or use a GNSS simulator (such as Orolia GSG-5 or -6 Series).
QZSS is not considered a standalone constellation and while SecureSync allows you to
enable QZSS by itself, it is recommended to use it in combination with GPS.
Determining Which GNSS Satellites Are Received
To see which GNSS satellites your SecureSync is currently receiving:
1.
Navigate to INTERFACES > REFERENCES: GNSS 0.
2.

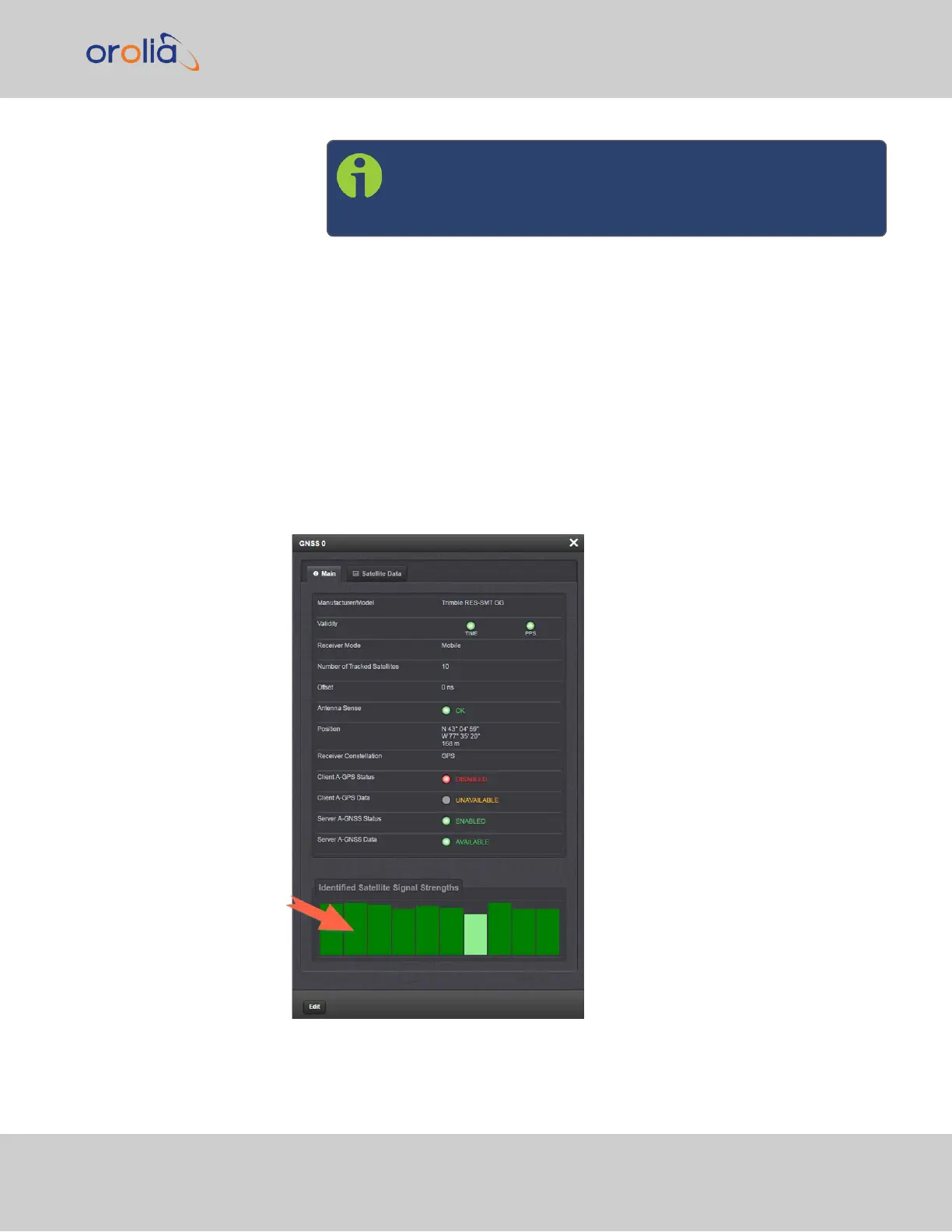

The GNSS 0 status window will open:
3.
Under Identified Satellite Signal Strengths hover with your cursor over the bars:
The letter in the tooltip window displayed for each signal bar indicates which
3.3 Managing References
CHAPTER 3 • SecureSync 2400 User Manual Rev. 2
223
