Orolia SecureSync 2400 User Manual

d.

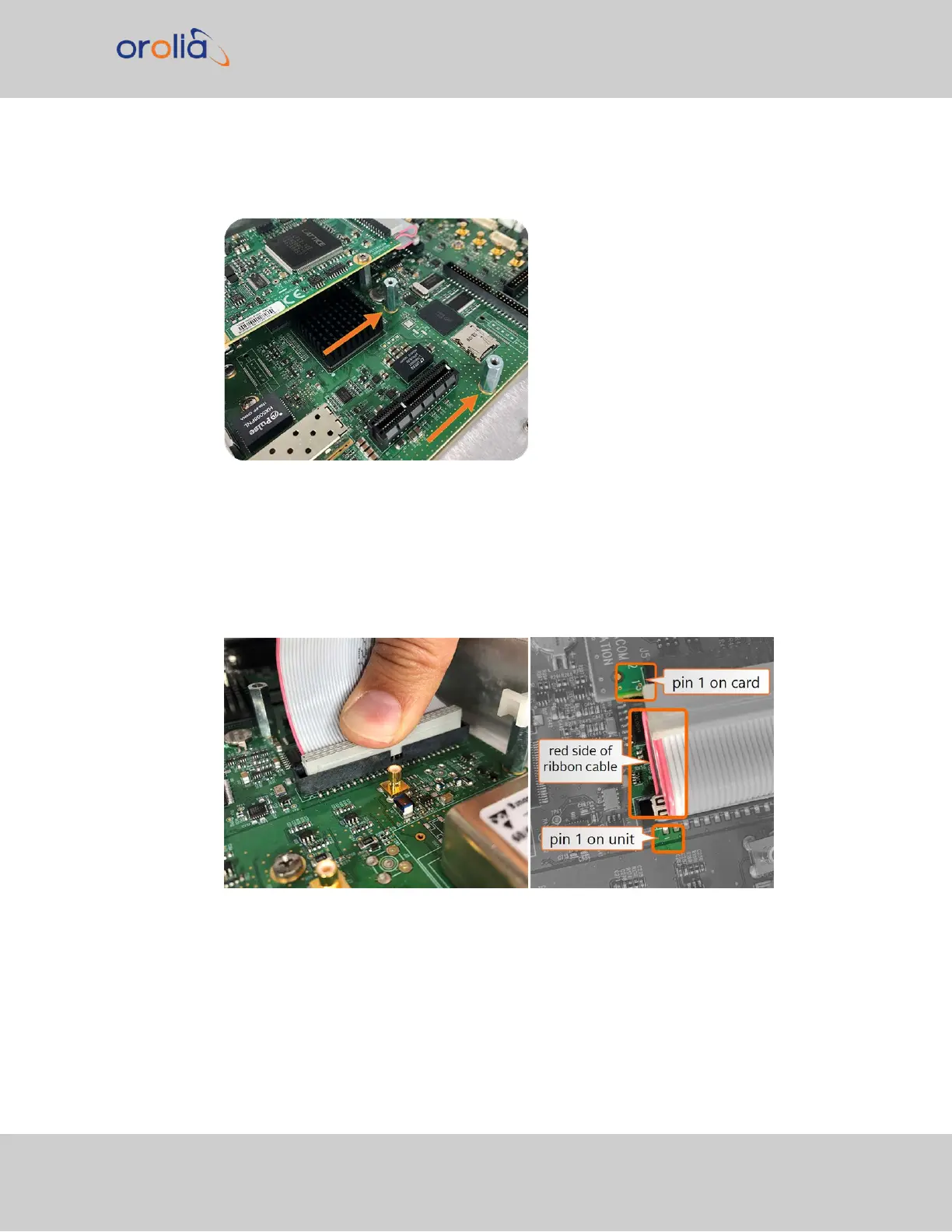

Insert option card into the slot, lining up the screw holes on the card with the stan-
doffs..
Figure 5-4: Standoffs location
e.
Using the supplied M3 screws, screw the board, and the option card plate into the
chassis, applying a torque of 0.9Nm/8.9in-lbs.
f.
Take the supplied 50-pin ribbon cable and carefully press it into the connector on
the mainboard (lining up the red sided end of the cable with PIN 1 on the main-
board), then into the connector on the option card (see Figurebelow).
SecureSync 2400 User Manual 345
APPENDIX
