Orolia SecureSync 2400 User Manual

b.
DANGER! SecureSync does not have an ON/OFF switch. It is neces-
sary to unplug the machine to remove power!
Caution: NEVER install an option card from the rear of the unit,
ALWAYS from the top, after removing the chassis cover.
c.
Remove the blank option card plate, or the existing option card. Save the screws.
d.
Remove screws securing the card already populating the bottom slot. Save the
screws.
e.
Screw the 18-mm standoffs into the option card populating the bottom slot (see
Figurebelow) , applying a torque of 0.9Nm/8.9in-lbs.

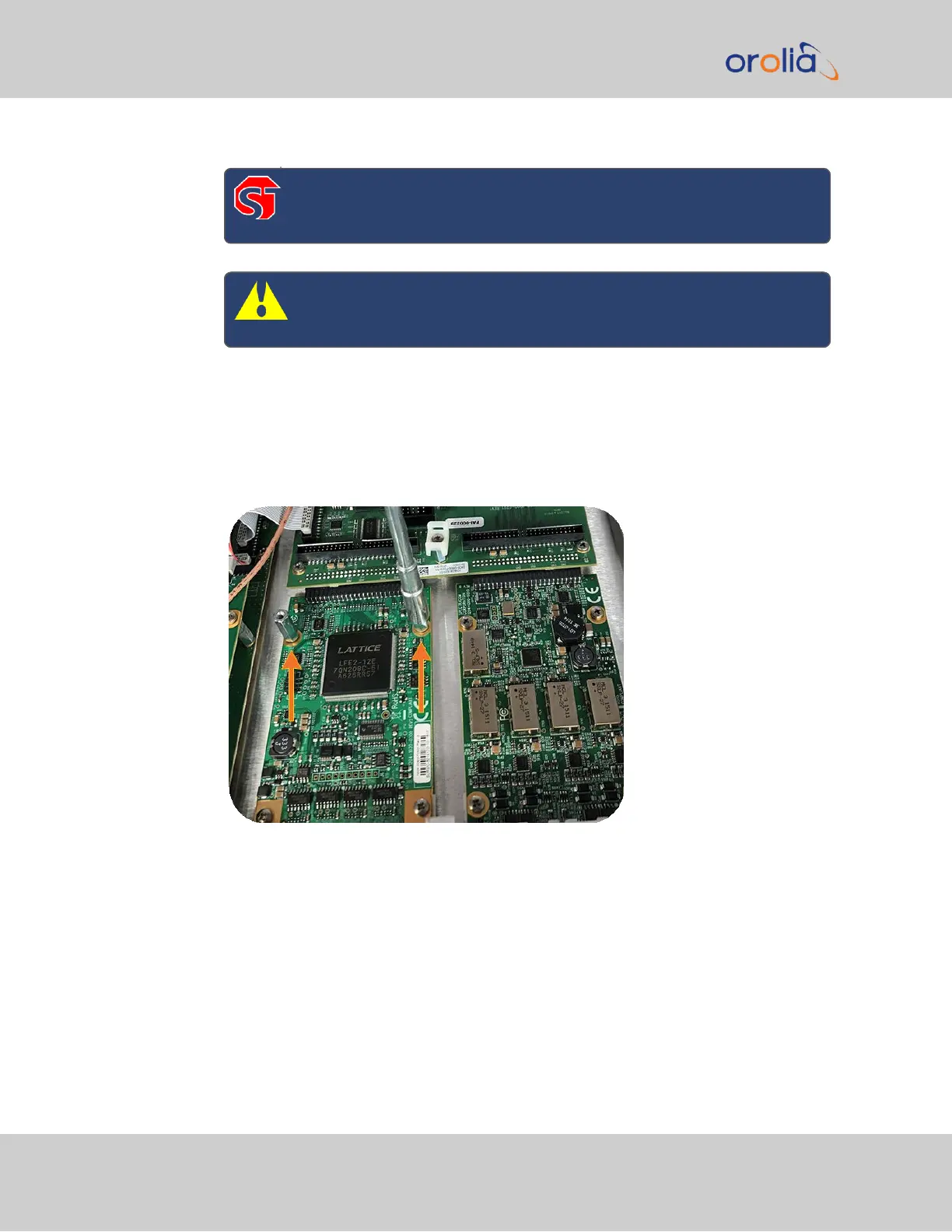

Figure 5-8: Bottom card with standoffs installed
f.
Insert option card into the slot above the existing card, lining up the screw holes with
the standoffs.
g.
Using the supplied M3 screws, screw the board into the standoffs, and the option
plate into the chassis, applying a torque of 0.9Nm/8.9in-lbs.
