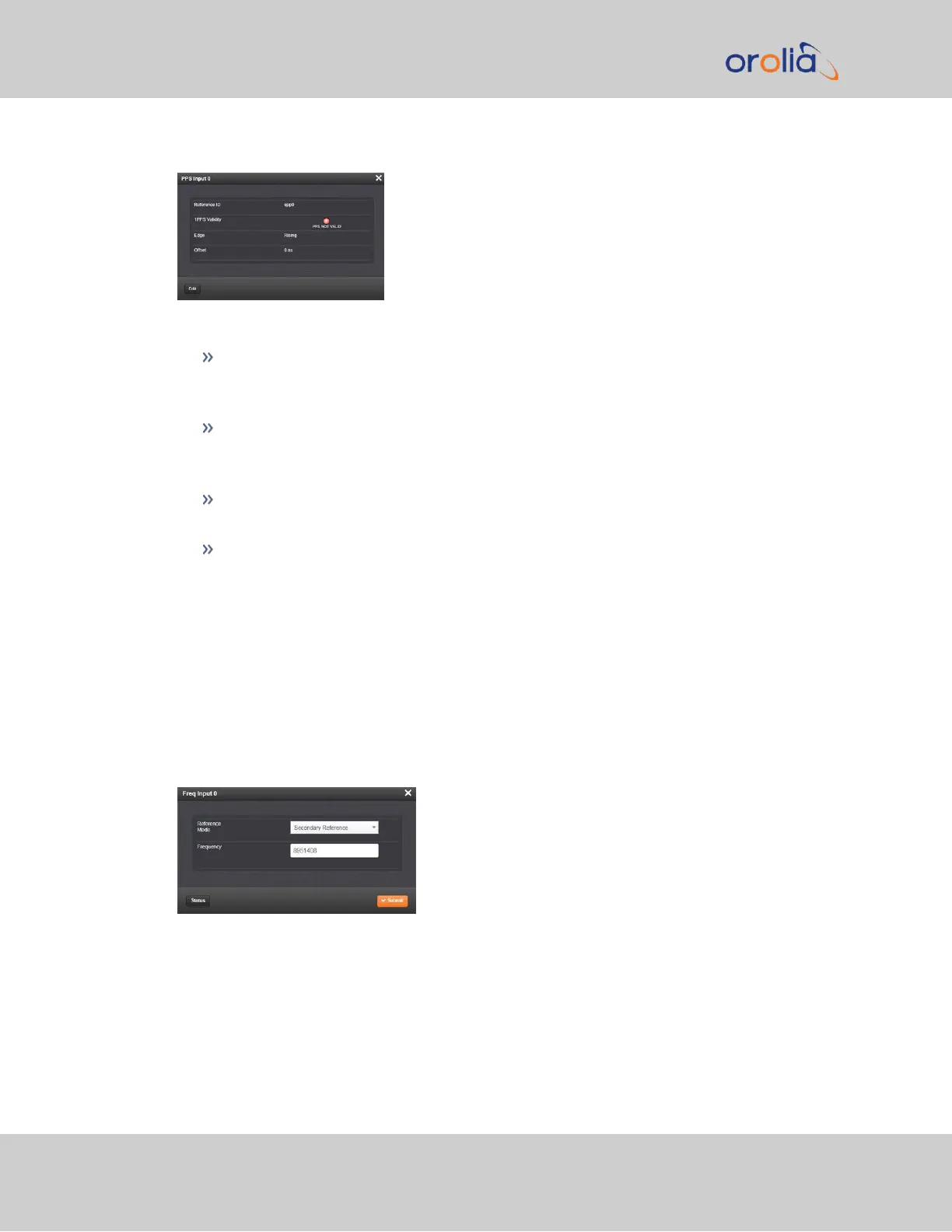

The Status window displays the following settings:
Reference ID: Name used to represent this 1PPS input reference in the Reference
Priority table; see "Configuring Input Reference Priorities" on page184 for more
information on reference priority configuration.
1PPS Validity: Indicates OK (green) if the 1PPS input signal is present and valid.
Indicates Not Valid” (orange) if the 1PPS input signal is either not present or is not
considered valid.
Edge: Displays the selected Edge (rising of falling) of the 1PPS input that defines the
on-time point.
Offset: Displays the configured 1PPS offset values.
The 1PPS Input signal is analyzed and an absence of the signal triggers a Not Valid indic-
ation.
Frequency Input: Edit Window
To configure the settings for the Frequency Input (also referred to as ‘Reference’), go to
its Edit window. For instructions, see: "Configuring Option Card Inputs/Outputs" on
page336.
The Web UI list entries for these cards are: 1PPS/Frequency BNC and 1PPS/Frequency
RS-485. The connector number is: J1 (BNC card); J1 (RS-485 card).
The Edit window allows the configuration of the following settings:
366 SecureSync 2400 User Manual
