Pulse Width: Configures the Pulse Width of the 1PPS output. The Pulse Width is
entered and displayed in nanoseconds (ns). The default Pulse Width is 200 mil-
liseconds.

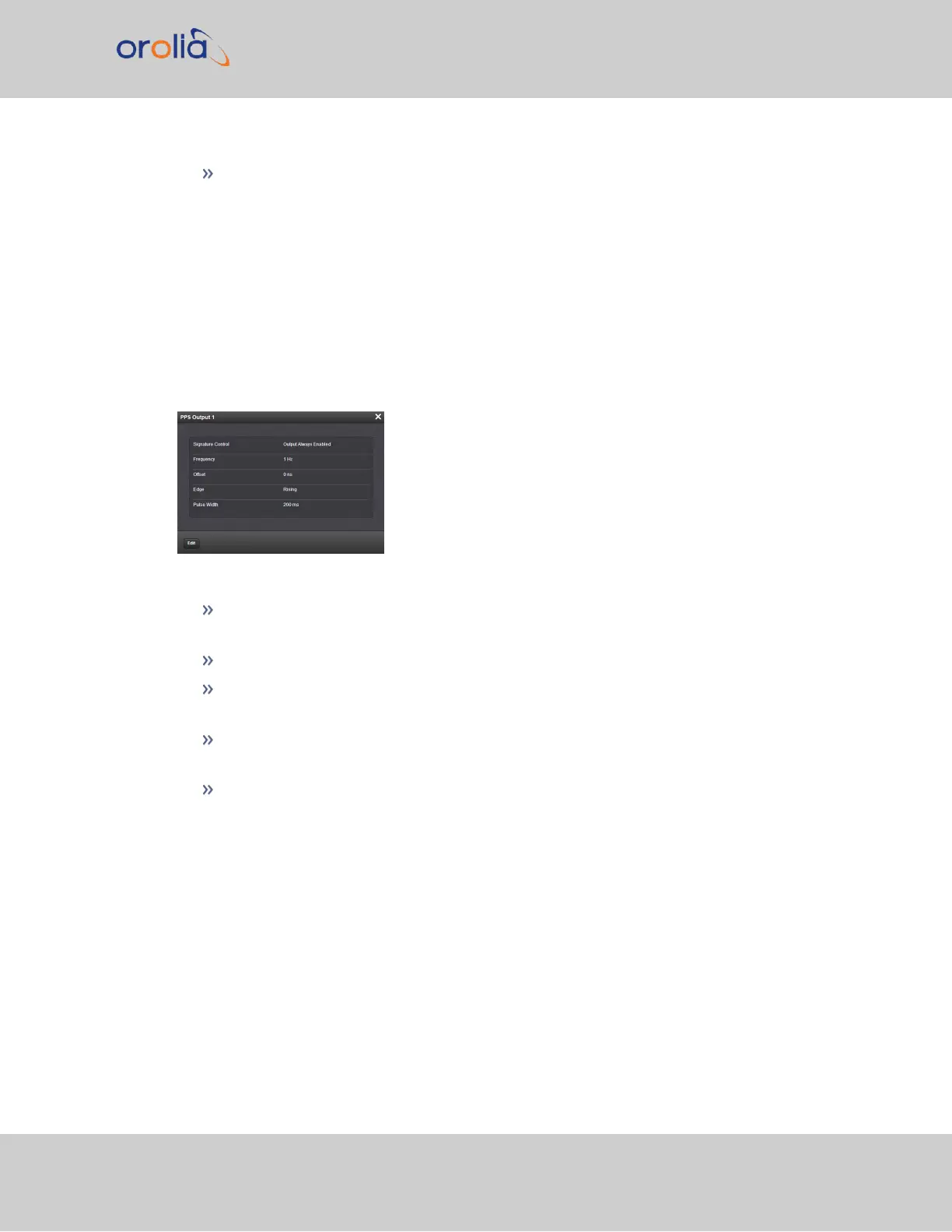

PPS Output: Status Window
To view the current settings of the 1PPS output, go to its Status window. For instructions,
see: "Viewing Input/Output Configuration Settings" on page334.
The Web UI list entries for these cards are: 1PPS/Frequency BNC and 1PPS/Frequency
RS-485.
The connector number is: J3 (BNC card); J1 (RS-485 card).
The Status window displays the following settings:
Signature Control: Displays the current configuration of Signature Control. See
also: "Signature Control" on page161.
Frequency: Indicates the configured frequency of the 1PPS output signal.
Offset: Displays the configured Offset (to account for cable delays or other laten-
cies).
Edge: Shows if the on-time point of the 1PPS output is the rising or falling edge of
the pulse.
Pulse Width: Displays the configured Pulse Width of the 1PPS output. The Pulse
Width is displayed in nanoseconds (ns). The default Pulse Width is 200 milliseconds.
SecureSync 2400 User Manual 369
