Orolia SecureSync 2400 User Manual

Figure 5-20: Model 1204-26 option card rear plate
The Frequency Out option cards each have 3 outputs, distributing a 1MHz signal, 5MHz or
10MHz signal (depending on the card model). All 3 outputs are configured as a single out-
put and will appear as such in the SecureSync Web UI, numbered sequentially by card
instance, starting with 0 (except the 10 MHz option card, which starts with no.1 because of
the built-in 10MHz output.)

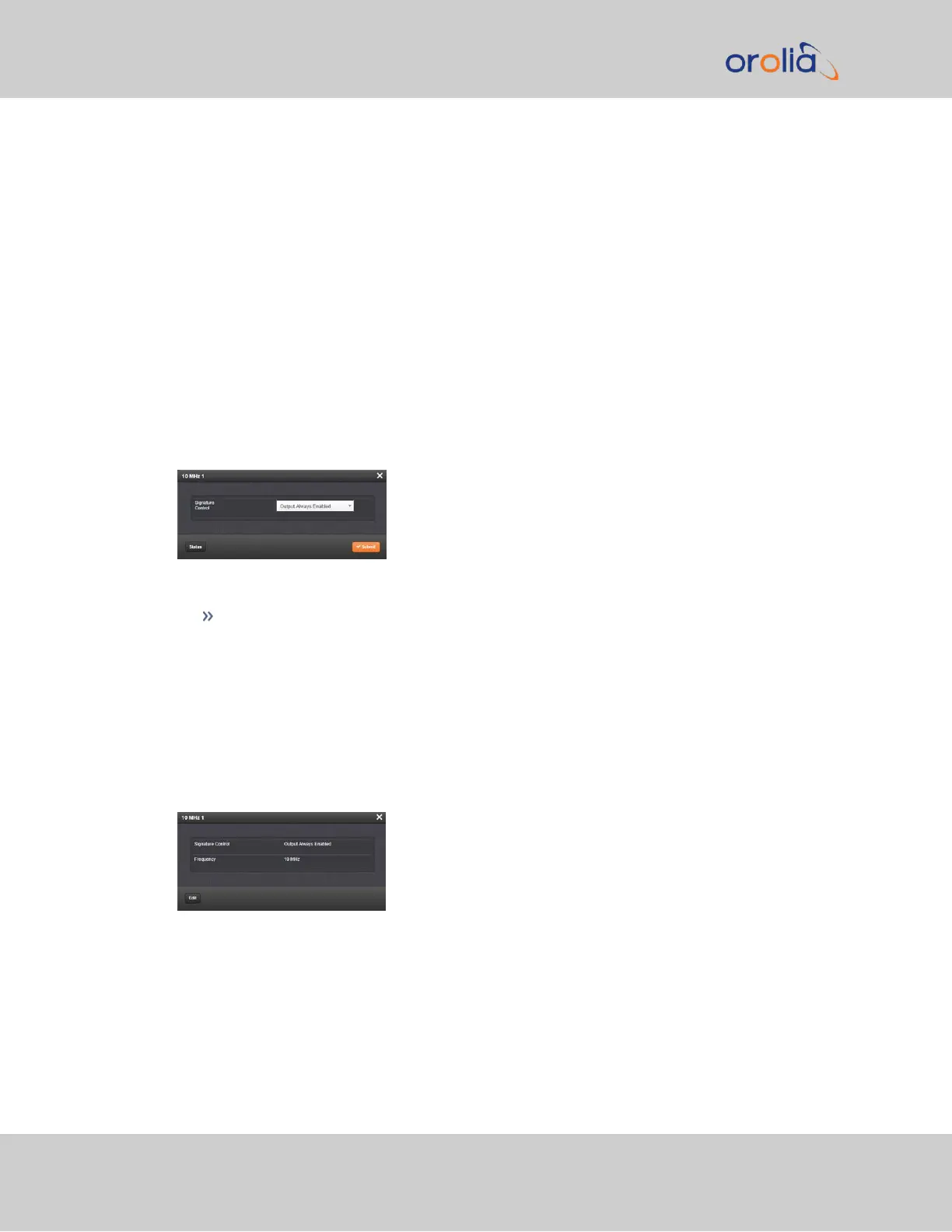

Frequency Output: Edit Window
To configure the settings of a Frequency Output, go to its Edit window. For instructions,
see: "Configuring Option Card Inputs/Outputs" on page336.
The list entry for this card is named: 1/5/10MHz BNC (or: TNC)
The connector numbers are: J1…J3.
The Edit window allows the configuration of the following settings:
Signature Control: Controls when the output will be present; see "Signature Con-
trol" on page161.
Frequency Output: Status Window
To view the settings of a Frequency output, go to its Status window. For instructions, see:
"Viewing Input/Output Configuration Settings" on page334.
The Web UI list entry for this card is named: 1/5/10MHz BNC (or: TNC).
The connector numbers are: J1…J3.
The Status window displays the following settings:
372 SecureSync 2400 User Manual
