Orolia SecureSync 2400 User Manual

Accuracy: n/a
Number of Cards: Up to 6
Ordering Information: 1204-27, IRIG module, Fiber Optic ST Connector
IRIG In/Out, Fiber Opt. [1204-27]: Output Specifications
Signal: IRIG A, B, E, G or NASA-36, (DCLS only, unmodulated)
Operating Wavelength: 820/850 nm
Optical Power: -15dBm average into 50/125 fiber
Fiber Optic Compatibility: 50/125μm, 62.5/125μm multi-mode cable
Optical Connector: ST
Accuracy: see "IRIG Output Accuracy Specifications" on page562
Number of Cards: Up to 6
Ordering Information: 1204-27, IRIG module, Fiber Optic ST Connector

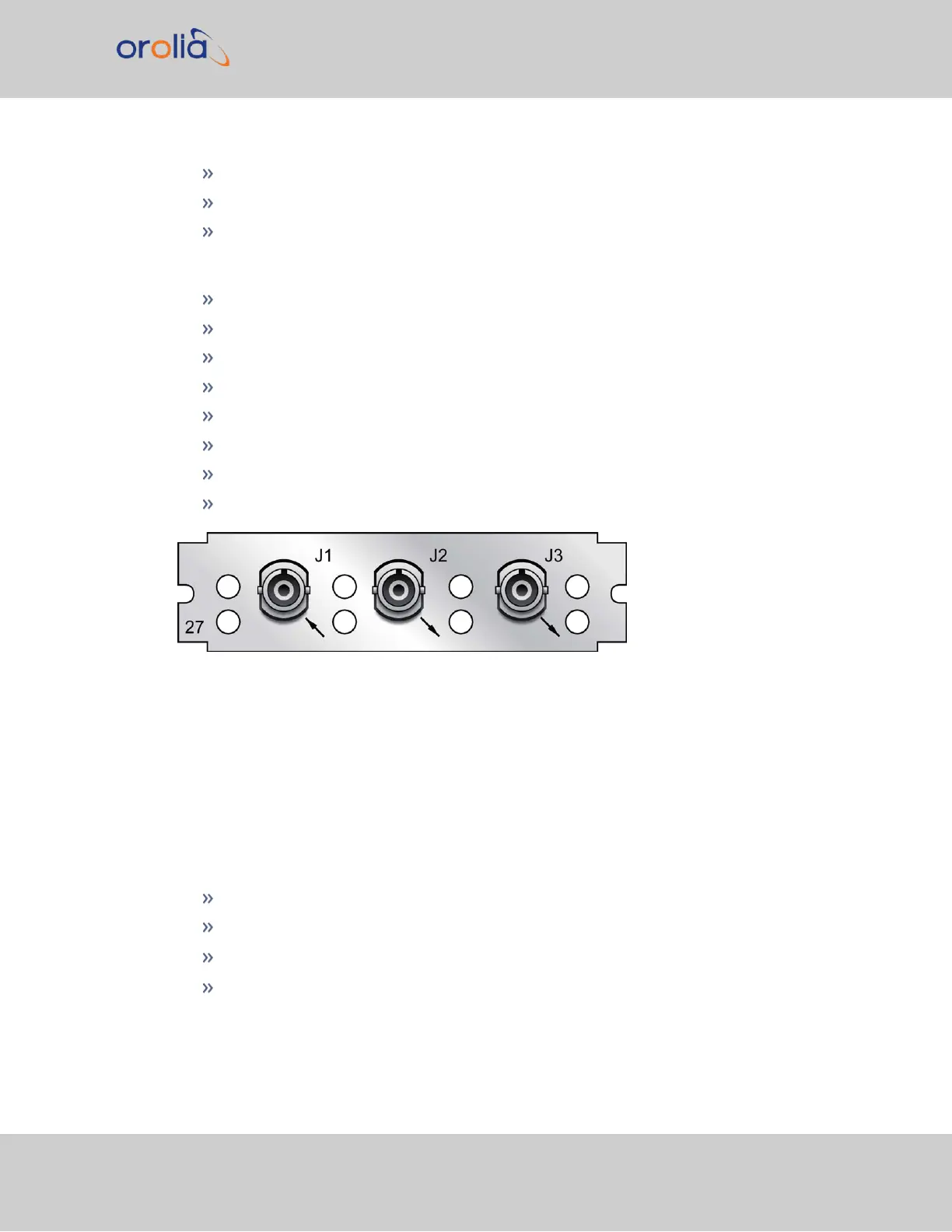

Figure 5-37: Model 1204-27 option card rear plate
Supported IRIG Formats
The IRIG option cards models 1204-05 and -27 support IRIG input and output formats A, B,
and G (DCLS and AM). Additionally, the cards support inputs with frequency/resolution val-
ues of no carrier/index count interval, 1kHz/1ms, 10kHz/0.1ms, and 100kHz/10ms, as
well as IRIG input coded expressions of the fields BCD
TOY
, CF, SBS, and BCD
YEAR
.
The IRIG inputs support the following coded expression combinations for BCD
TOY
, CF,
SBS, and BCD
YEAR
fields:
0 – BCD
TOY
, CF, SBS
1 – BCD
TOY
, CF
2 – BCD
TOY
3 – BCD
TOY
, SBS
SecureSync 2400 User Manual 405
APPENDIX

Orolia SecureSync 2400 Specifications

General

Brand	Orolia
Model	SecureSync 2400
Category	Recording Equipment
Language	English
