Table 5-18:
1204-1B terminal block pin-out
HAVE QUICK Output: Viewing Signal State
To quickly view if a HAVE QUICK Output is enabled or disabled, go to the option card’s
Status Summary panel. For instructions, see: "Viewing an Input/Output Signal State" on
page337.

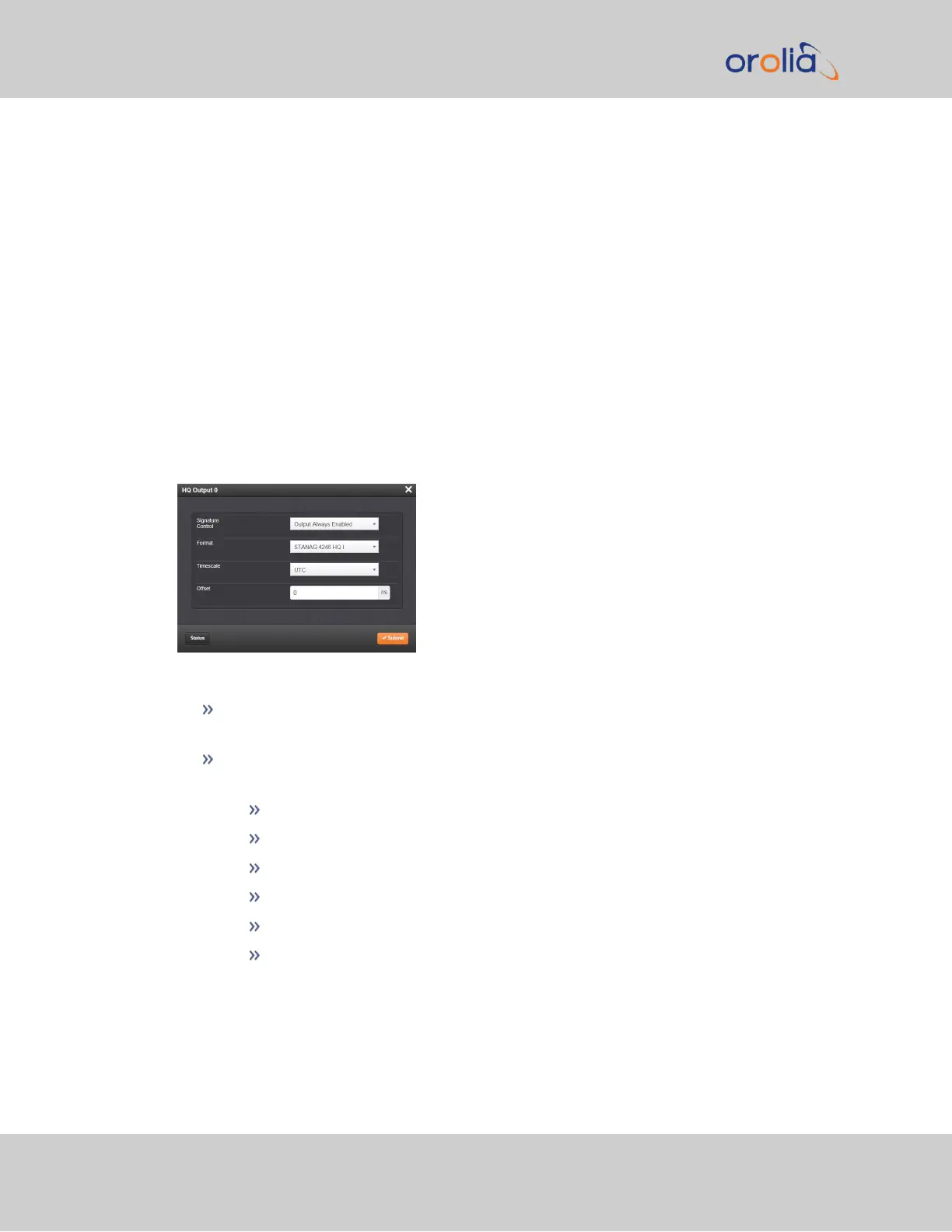

HAVE QUICK Output: Edit Window
To configure a HAVE QUICK Output, go to its Edit window. For instructions, see: "Con-
figuring Option Card Inputs/Outputs" on page336.
The Web UI list entries for this card are: HAVE QUICK out, BNC and HAVE QUICK Out,
RS-485.
The outputs are named: HQ Output [number].
The Edit window allows the configuration of the following settings:
Signature Control: Signature Control is used to control when the HAVE QUICK
modulation is present;see also "Signature Control" on page161.
Format: Used to configure the formatting of the four available HAVE QUICK out-
puts. The available output formats are as follows:
STANAG 4246 HQ I
STANAG 4246 HQ II
STANAG 4372 HQ IIA
STANAG 4430 Ext HQ (Extended HAVE QUICK)
STANAG 4430 STM (Standard Time Message)
ICD-GPS-060A BCD
436 SecureSync 2400 User Manual
APPENDIX
