Model 1204-2E Specifications
Inputs/Outputs:
(2) Inputs – Unselected input terminated with 50Ω
(1) Output
Connectors: 3 BNC
Signal Type: User selected (jumper switch):
>1MHz
1MHz to 100Hz
1PPS
Signal Level:
Sine Wave, 0.5V to 30V
p-p
TTL (50 Ω)
Default Power-on Switch State:
Initially, input “B”; until a valid signal on input "A" is detected, causing the switch
state to change to "A".
Maximum Number of Cards: 6
Ordering Information: 1204-2E: Revertive Selector Option Module

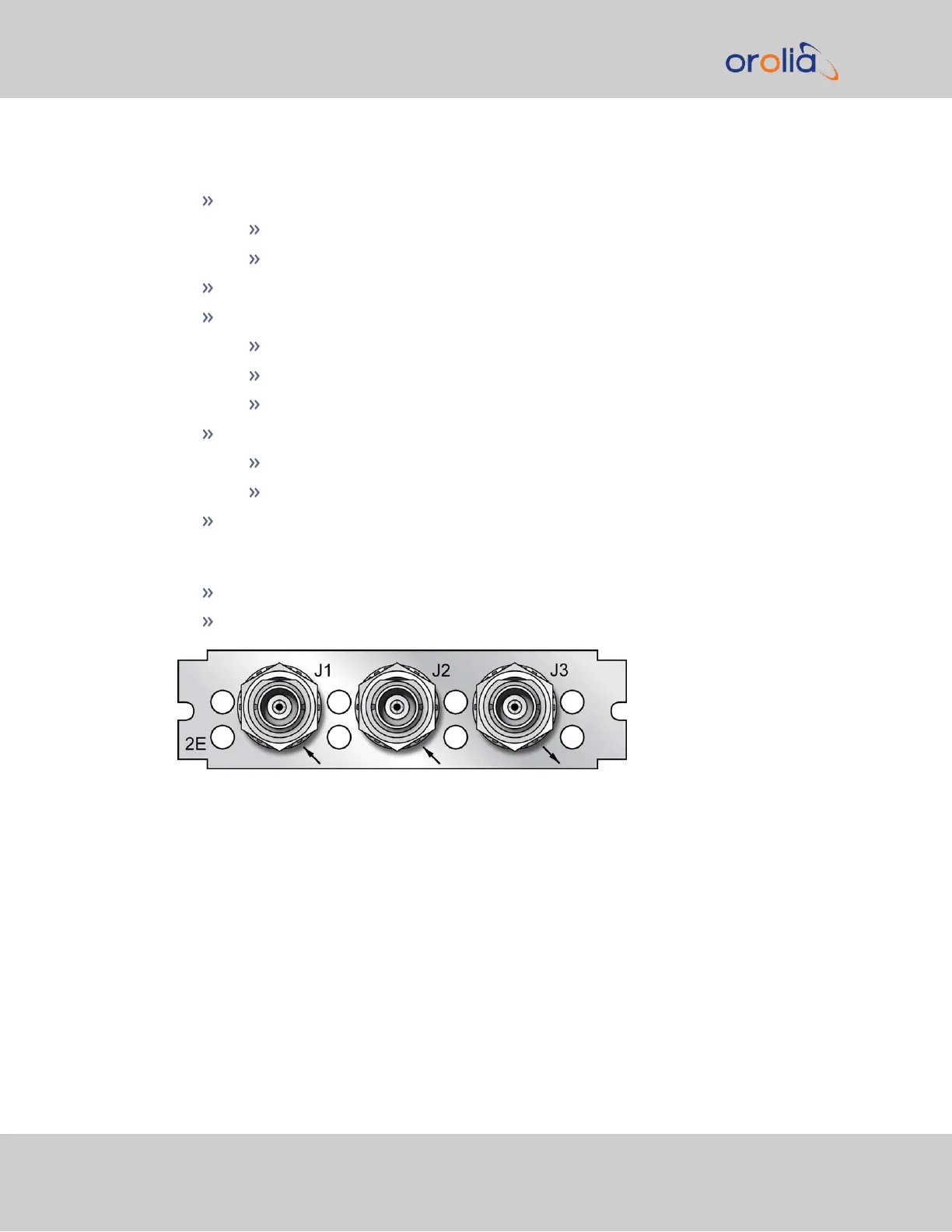

Figure 5-59: Model 1204-2E option card rear plate
