Exterior Covers (MF Model)
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-36 SM

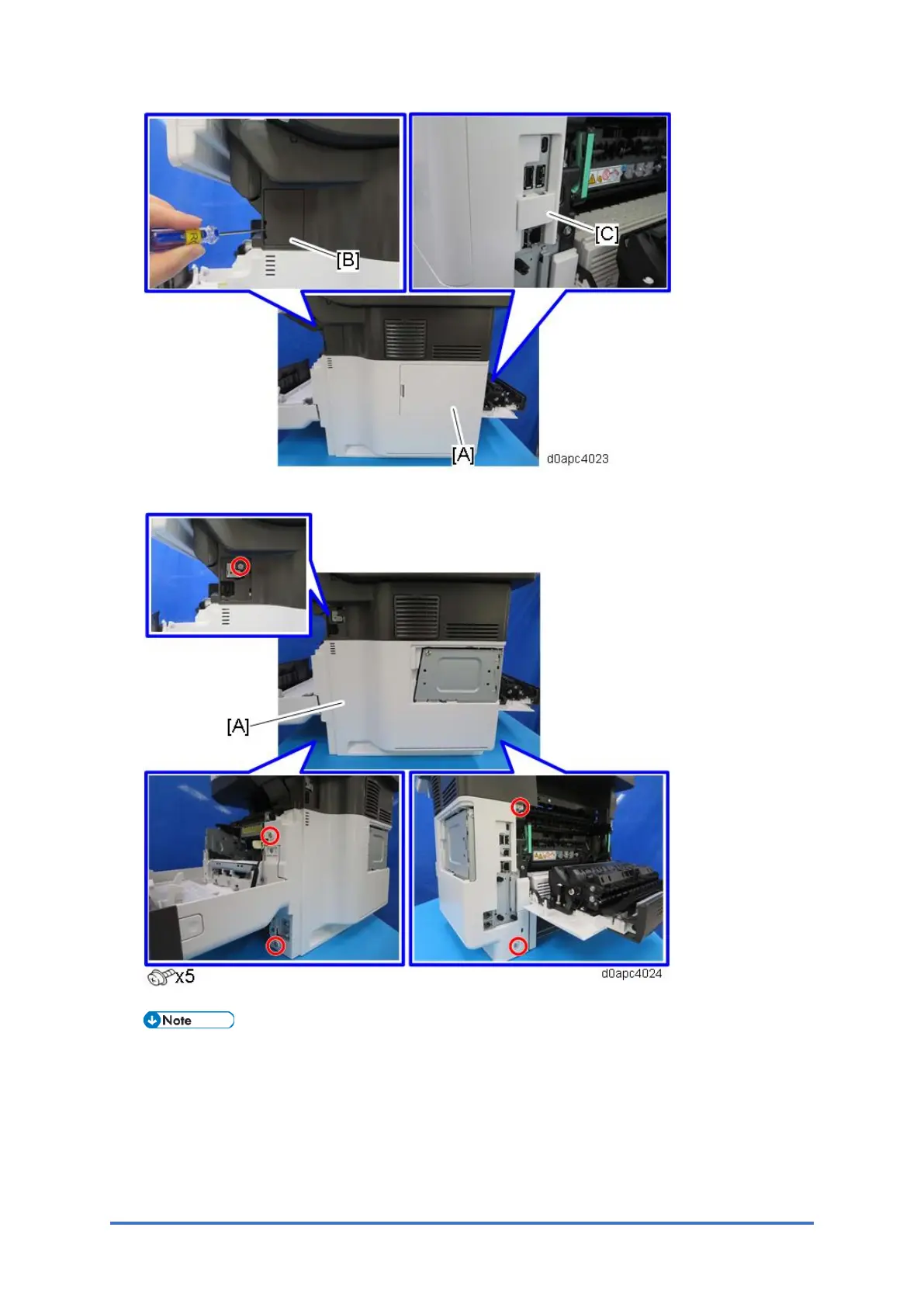

5. Remove the right cover [A].
The right cover is held in position by bosses on the frame of the main machine, so
disconnect these bosses before you remove the right cover. The rear upper boss is not
visible from outside so confirm its location in the photo below.
To Next Page
