LED Optics
SM 4-81 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
&

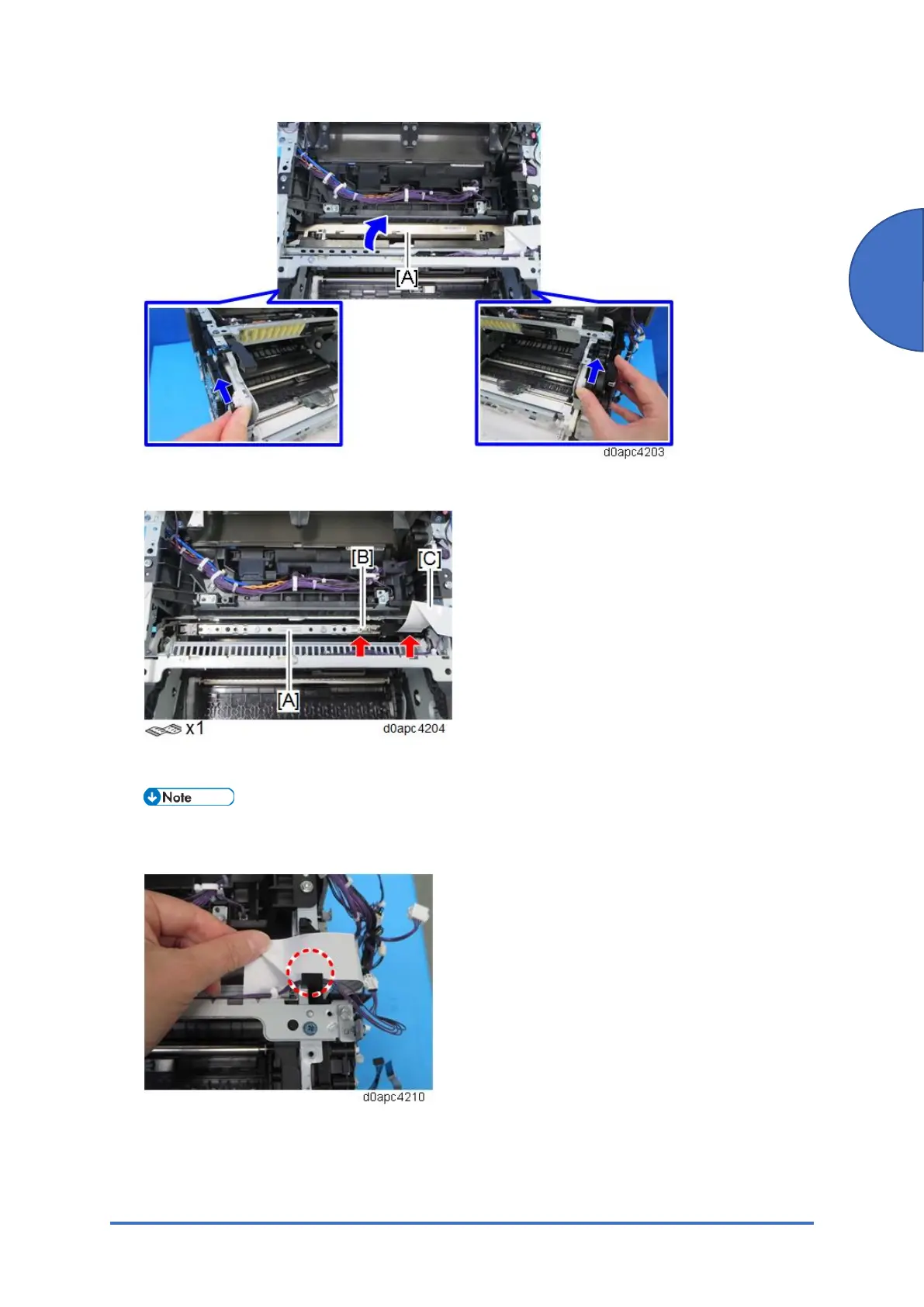

7. Disconnect the ground wire [B] and FFC [C] straight from the LED unit [A].
MF model: When re-connecting the FFC, attach it on the hook of the harness guide. The
FFC must be connected straight.
Printer model: When re-connecting the FFC, attach it on the hook of the harness guide
and the hook of the inner cover. The FFC must be connected straight.
